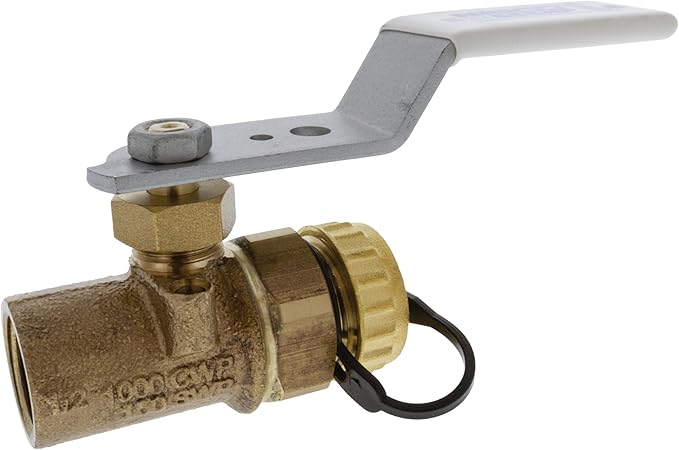

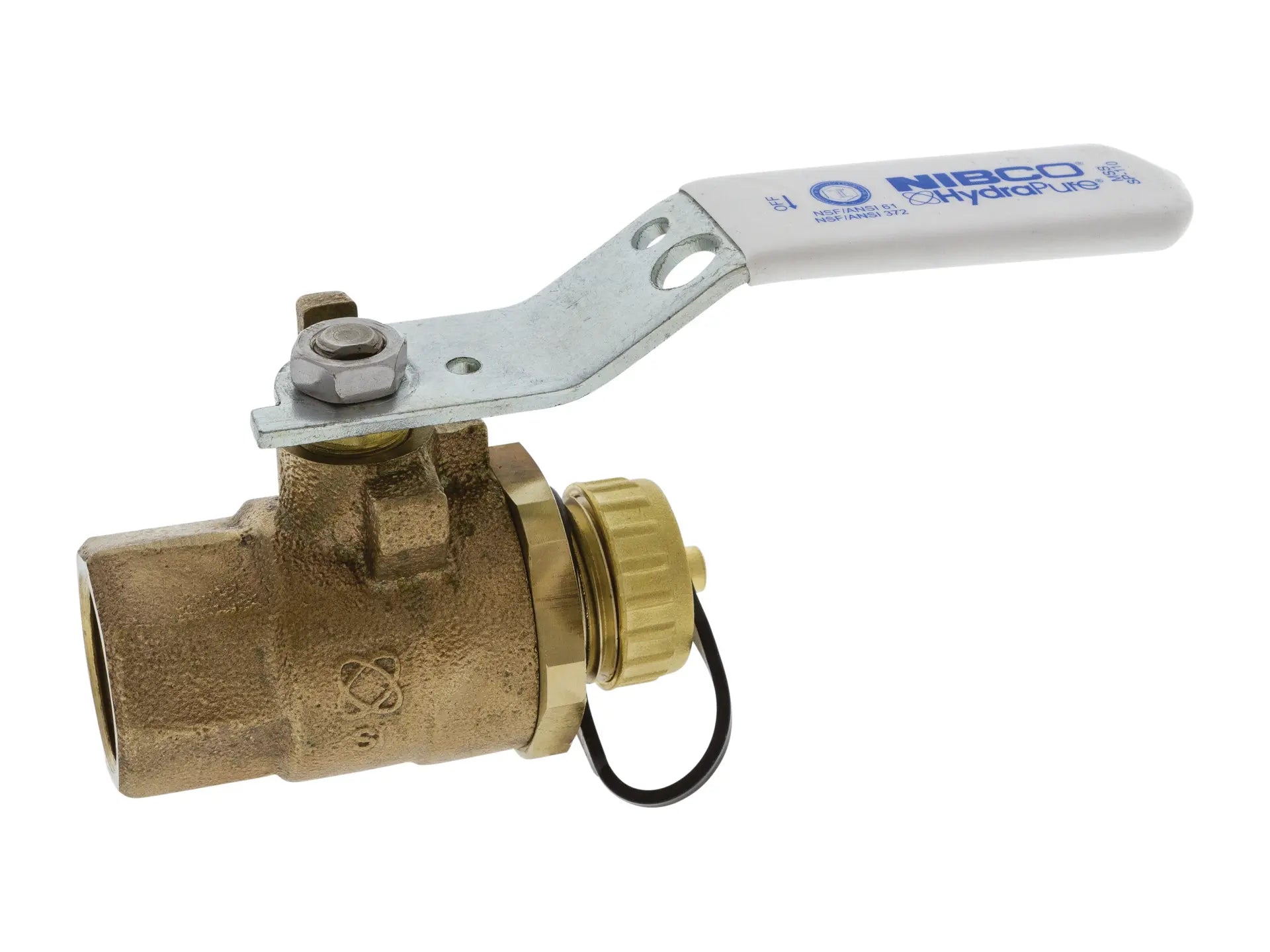

NIBCO VALVES T-585-66-LF-HC Ball Valve 3/4 inches Hose Cap

Product Description

The NIBCO VALVES T-585-66-LF-HC ball valve is a two-piece full port valve made from lead-free silicon bronze. This valve is designed for reliable shut-off and pressure control. It offers a maximum pressure rating of 600 PSI and features a blowout-proof stem design with stainless steel components.

• Lead-free material construction
• Full port design with bubble-tight shut-off
• Reinforced PTFE seat rings for durability

Product Highlights

This valve is ideal for potable water applications in both residential and commercial settings. It complies with key industry standards and ensures safety in water delivery systems.

Product Information

Standard Information

• Manufacturer: NIBCO INC.
• Part Number: HP958H6

Technical Specifications

• Material: Lead-Free Bronze
• Inlet Connection Size: 0.5 inches
• Outlet Connection Type: Hose Cap End
• Maximum Operating Pressure: 1000 PSI
• Body Material: Silicon Bronze
• Pressure Rating: 600 PSI
• Dimensions: 5.64 inches length, 3.33 inches width, 3.16 inches height
• Standard Compliance: Conforms to MSS SP-110, NSF/ANSI/CAN-61, IAPMO/ANSI Z1157
