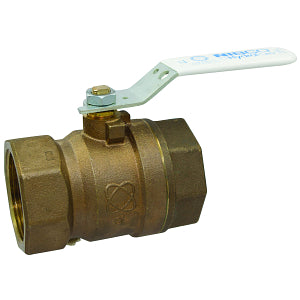

Nibco Valves T-580-80-LF Two-Piece Bronze Ball Valve 1 1/4

Product Description

The NIBCO VALVES T-580-80-LF bronze ball valve offers quarter-turn (90 degrees) operation. This two-piece valve features threaded ends for installation. Suitable for commercial, residential, mechanical, and industrial applications. The valve is dezincification resistant and provides bubble-tight shut-off at 600 psi.

• Ease of operation with quarter-turn (90 degrees) open to close
• Two-piece valve
• Threaded ends for easy installation

Product Highlights

This two-piece bronze ball valve features threaded ends and quarter-turn operation, ideal for various applications.

Product Information

Standard Information

• Brand: NIBCO VALVES
• Manufacturer Part Number: T-580-80-LF

Technical Specifications

• Material Number: NL950XB
• UPC Code: 039923338952
• Connection Type: T -- Female NPT Thread (FIPT)
• Valve Size: 1 1/4
• Description: T580-80-LF 11/4 THRD CONV PORT BV
• Turns/Operation: Quarter-Turn
• Brand: NIBCO
• Actuator Type: Locking Lever Handle
• Ball Material: Silicon Bronze
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: NPT
• Inlet to Outlet Length: 3-3/4 in
• Media: Water
• Orifice Size: 1-1/4 in
• Port Type: Conventional
• Pressure Rating: 600 psi
• Series: T-580-80-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 deg F
• Top to Inlet Center: 3.09 in
• Trim Material: Silicon Bronze Stem
• Type: 2-Piece
• Manufacturer: NIBCO Inc.
• Manufacturer #: NL950XC
