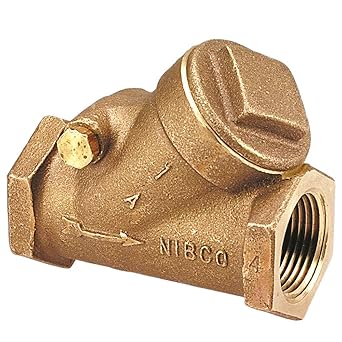

NIBCO VALVES T-413-B Bronze Swing Check Valve

Product Description

The NIBCO VALVES T-413-B is a bronze swing check valve designed for various applications. It features female NPT threaded connections and a Y-pattern body. The valve uses a screw-in bonnet and is made with a bronze seat and disc. This valve can be mounted both horizontally and vertically, allowing for flexible installation. It effectively prevents backflow, closing automatically when the fluid direction changes. This valve is suitable for steam, water, oil, and gas systems.

• Female NPT threaded connections
• Renewable seat and disc
• Meets MSS SP-80 standards

Product Highlights

Reliable and durable valve for various piping configurations.

Product Information

Standard Information

• Brand: NIBCO
• MPN: T-413-B

Technical Specifications

• Valve Type: Swing Check Valve
• Body Material: Bronze
• Valve Seat Material: Bronze
• Valve Disc Material: Bronze
• Connection Type: Female NPT Thread (FIPT)
• Valve Body Style: Y Pattern
• Valve Bonnet Type: Screw-in
• Piping Configuration: Horizontal, Vertical
• Valve Application: Gas, Oil, Steam, Water
• Max Pressure: 200 psi
• Pressure Class: 125#, 200#
• Maximum Temperature: 353
• Minimum Temperature: -20
• End Connections: FPT
• Valve Port Opening: Full Port
• Material: Bronze
• Material Type: C83600
• Weight: 2.17 lb
• Installation Type: Horizontal Mount, Vertical Mount
• Exterior Finish: Bronze
• Specification Met: Conforms to MSS SP-80
