NIBCO VALVES S585-70-HC Bronze Ball Valve Two-Piece Solder x Hose

Product Description

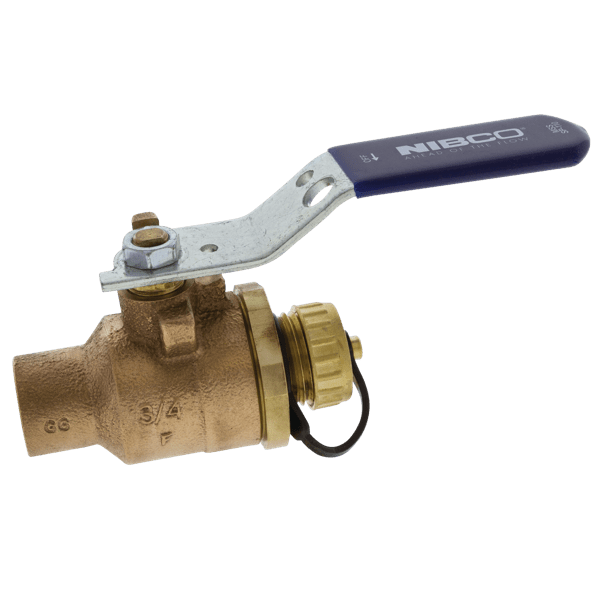

The NIBCO VALVES S585-70-HC is a bronze ball valve designed for efficient flow control. This two-piece valve features a solder end connection on one side and a hose connection with a cap and chain on the other. Its full port design allows for maximum flow. The valve operates with a quarter-turn mechanism, simplifying the process of opening and closing. It is ideal for commercial and light industrial applications, particularly when hose connections are needed for drainage.

• Full port design for maximum flow
• Solder end connection and hose connection with cap and chain
• Standard lever handle for easy operation

Product Highlights

This valve is rated for a pressure of six hundred PSI, making it suitable for various demanding environments.

Product Information

Standard Information

• Brand: NIBCO
• MPN: S585-70-HC

Technical Specifications

• Material: Bronze
• Valve Type: Ball Valve
• Number of Pieces: Two Piece
• Valve Size: Three-fourth inch
• Inlet Connection Type: Solder
• End Connection 1: FIP
• End Connection 2: GHT
• Port Type: Full
• Pressure Rating: 600 PSI
• Temperature Rating: Four hundred degrees Fahrenheit
• Valve Body Style: Two piece
• Ball Material: Chrome Plated Brass
• Handle Type: Standard Lever
• Compliance: Conforms to MSS SP-110
