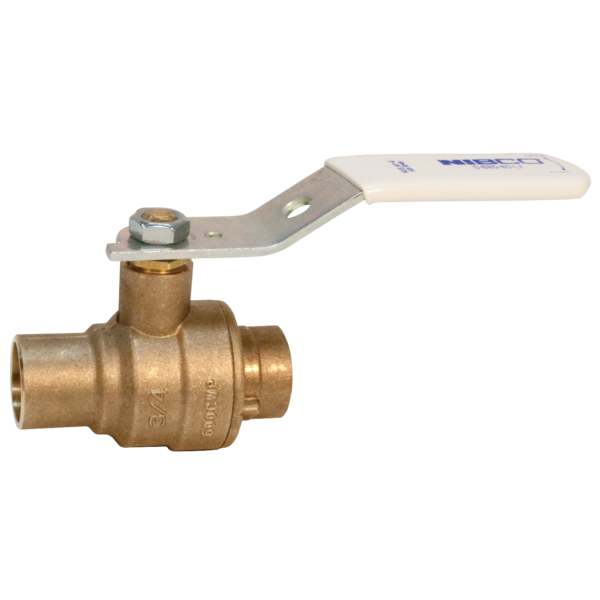

NIBCO VALVES S-685-80-LF 2 in. Solder Bronze Ball Valve

Product Description

The NIBCO VALVES S-685-80-LF is a lead-free solder bronze ball valve designed for reliable performance in plumbing applications. This two-piece valve provides a bubble-tight shutoff at 600 PSI pressure, ensuring durability and safety. It is ideal for water delivery systems in residential and commercial environments.

• Valve pressure rating is 600 PSI non-shock cold working pressure
• Features full port design for optimal flow
• Constructed with silicon performance bronze material

Product Highlights

This ball valve offers easy quarter-turn operation. It is dezincification-resistant, making it suitable for various environments while maintaining compliance with NSF/ANSI standards.

Product Information

Standard Information

• Brand: NIBCO VALVES
• MPN: S-685-80-LF

Technical Specifications

• Material: Lead-free bronze
• Pressure Rating: 600 PSI
• End Connections: Solder
• Operation: Quarter turn (90 degrees)
• Compliance: NSF/ANSI 61 and 372
• Design: Two-piece
• Application: Water delivery for human consumption
• Resistance: Dezincification-resistant
