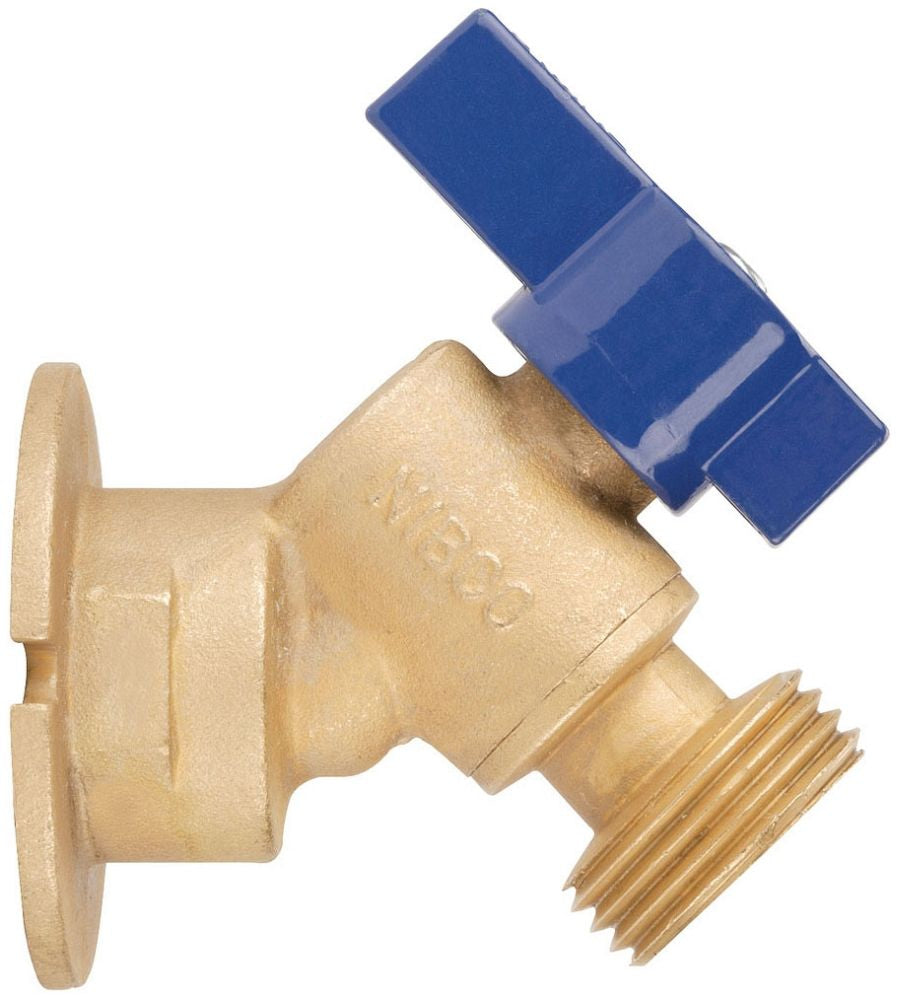

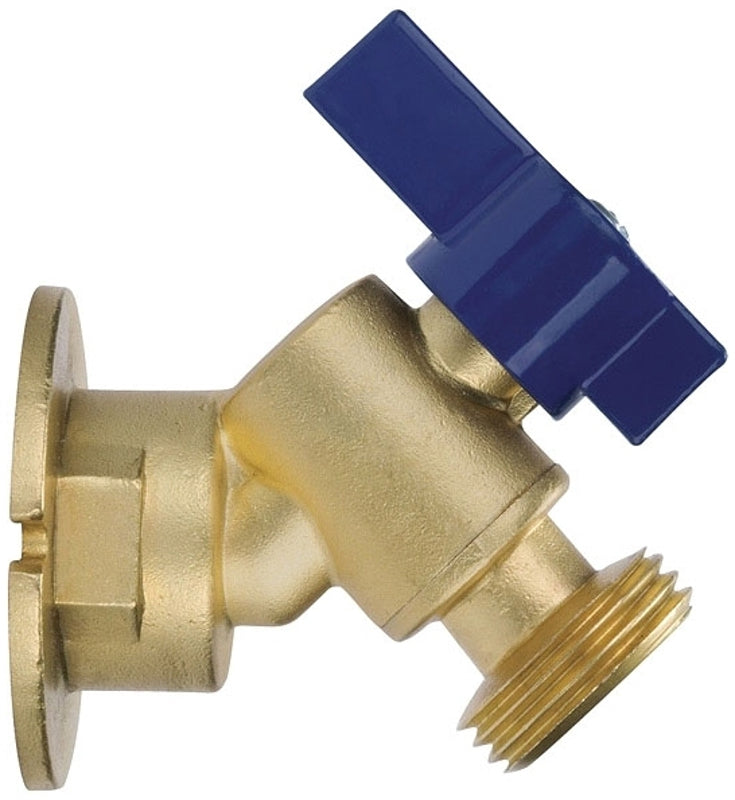

NIBCO VALVES QT63X Brass Sillcock Angle Valve

Product Description

The NIBCO brass sillcock angle valve QT63X is built for low-pressure water systems and drinking water applications. This valve offers a female threaded connection on one end and a hose end connection on the other. Constructed with a sturdy brass body, it features a brass ball and adapter for enhanced reliability. The valve operates using a zinc quarter-turn handle, ensuring easy control and a PTFE seat for optimal sealing.

• Angle body style designed for flexibility.
• Equipped with a quarter-turn handle for quick operation.
• Ideal for low-pressure water systems.

Product Highlights

This valve is essential for external shutoff needs, providing a reliable solution for various plumbing tasks.

Product Information

Standard Information

• Brand: NIBCO
• Item Name: Sillcock Angle Valve

Technical Specifications

• Series/Model: QTX Series
• Body Style: Angle
• Nominal Size: Three-quarter Inch
• Connection Type: FNPT
• Turn: Quarter Turn
• Material: Brass
• Handle Type: Lever
• Pressure Rating: 125 psi
• Connections: Female Threaded X Hose
• Length: 3.040 inches
• Width: 2.720 inches
