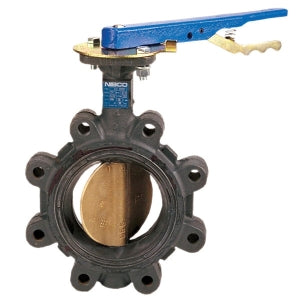

NIBCO VALVES LD2000-3 6 in. Lug Ductile Iron Butterfly Valve

Product Description

The Nibco lug type butterfly valve LD2000-3 provides reliable bi-directional service without needing a downstream flange. It ensures bubble-tight shutoff at 200 PSI, making it suitable for commercial and light industrial applications, including HVAC and vacuum services, as well as hot and cold potable water systems.

• 225 degrees Fahrenheit continuous and 250 degrees Fahrenheit intermittent service
• EPDM molded-in seat liner
• Stainless Steel stem with copper bushings

Product Highlights

This butterfly valve offers ease of operation with a quarter turn for opening and closing. Its design is ideal for various water and air applications.

Product Information

Standard Information

• Brand: NIBCO VALVES
• MPN: LD2000-3
• Manufacturer SKU: NLG100K

Technical Specifications

• Service Type: Bi-directional
• Pressure Rating: 200 PSI
• Temperature Rating: 225 degrees Fahrenheit continuous
• Intermittent Temperature: 250 degrees Fahrenheit
• Construction: Ductile iron
• Stem Material: Stainless Steel with copper bushings
• Seat Liner: EPDM molded-in
• Features: Extended neck, geometric drive
