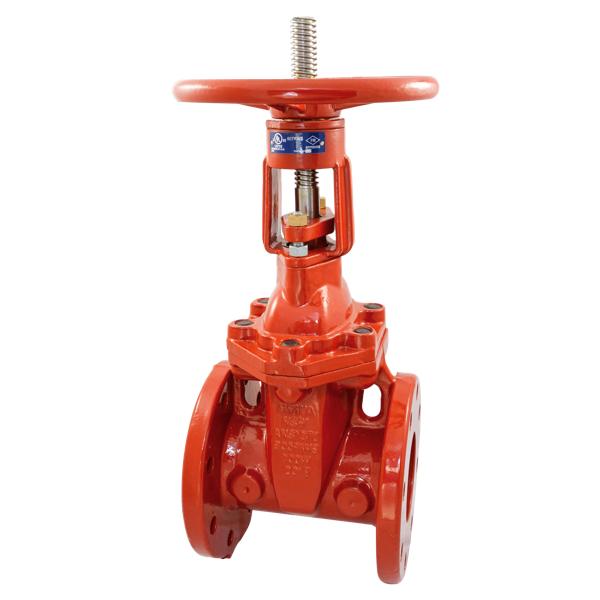

Nibco Valves F-607-RWS Gate Valve 4 in. Flanged Ductile Iron

Product Description

The NIBCO VALVES F-607-RWS ductile iron gate valve provides full flow with minimal pressure drop. Designed as the main control valve in an automatic fire sprinkler system, it features Class 125 flanged, flat face end connections for easy installation. The valve has an outside screw and yoke, a bolted bonnet, and a resilient wedge. The body is epoxy coated inside and out per AWWA C-550.

• Full flow with minimal pressure drop
• Designed for automatic fire sprinkler systems
• Outside screw and yoke
• Resilient wedge
• Class 125 flanged, flat face end connections

Product Highlights

The NIBCO flanged ductile iron gate valve is ideal for fire protection, commercial, and industrial applications requiring reliable shutoff.

Product Information

Standard Information

• Brand: NIBCO VALVES
• Manufacturer Part Number: F-607-RWS

Technical Specifications

• Make: NIBCO VALVES
• MPN: F-607-RWS
• SellPackageQuantity: 1
• SellUom: Each
• SupplierSKU: 0732NS2920H
• Non-shock cold working pressure: 300 psi/20.7 bar
• Outside screw and yoke: Yes
• Bonnet: Bolted
• Wedge: Resilient
• Body coating: Epoxy coated inside and out per AWWA C-550 (coating NSF and FDA certified)
• End connections: Flanged
• Standards: Meets or exceeds performance requirements of AWWA C509 and C515 for 3" and larger valves
• Listings: Listed by UL/ULC (UL262), FM Approved, CNBOP-PIB-KOT-2019/0103-1005 wydanie 2
• Brand Name: Nibco
• Mfg Part#: NS2920H
• CPS SKU: 18492
• UPC: 039923366160
• Nominal Size: 4 INCH X 4 INCH
• Applicable Standard: UL/ULC, UL 262, FM
• Application: FIRE PROTECTION, COMMERCIAL, INDUSTRIAL
• Body Material: DUCTILE IRON
• Pressure Rating: 250 PSI WWP
• End Connection: FLANGED X FLANGED
• Seal Material: EPDM RUBBER
• Actuation Type: MULTI-TURN STANDARD HANDWHEEL
• Seat Material: EPDM RUBBER
• Stem Design: OUTSIDE SCREW AND YOKE
• Bonnet Type: BOLTED
• Model: F-607-RWS
• Master UPC (14): 03992336616
• Vendor UPC (12): 039923366160
