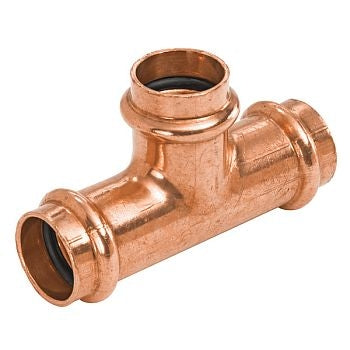

Nibco TRED2234 Wrought Copper Press Tee 2 Inches X 2 Inches X 3/4 Inches P X P X P PC611

Product Description

The NIBCO TRED2234 is a wrought copper press tee designed for use in the NIBCO PC611 Press System. It is sized at 2 inches x 2 inches x 3/4 inches and features three press connections in a P x P x P configuration. This fitting allows plumbers and pipefitters to create a branch connection in a continuous pipeline without using open flame, solder, or flux. The result is a faster, safer installation that meets the demands of commercial and residential plumbing work. The TRED2234 uses an inboard bead and an EPDM O-ring seal. When a pressing tool is applied to the fitting, the O-ring compresses tightly against the copper tube, forming a watertight seal in seconds. This press-fit method dramatically reduces installation time compared to traditional sweat soldering. The fitting is manufactured from ASTM B75 Alloy C12200 wrought copper, which is dezincification resistant and meets lead-free standards for potable water systems. The TRED2234 is rated for operating pressures up to 200 psi cold working pressure and handles temperatures from -20 to 250 degrees Fahrenheit, making it suitable for hot and cold water supply, hydronic heating, and HVAC piping systems. Domestically sourced, this fitting is built to perform in demanding trade environments where reliability and code compliance are non-negotiable. Plumbers, mechanical contractors, and HVAC technicians trust NIBCO press fittings for their consistency and ease of use on the job site.

• Press x Press x Press connection eliminates the need for flame, solder, or flux during installation
• EPDM O-ring with inboard bead creates a fast, reliable watertight seal under tool pressure
• Lead-free ASTM B75 Alloy C12200 wrought copper construction meets potable water standards

Product Highlights

The NIBCO TRED2234 wrought copper press tee delivers fast, flame-free branch connections rated to 200 psi and suitable for a wide range of plumbing and HVAC piping applications. Its dezincification-resistant copper construction and EPDM O-ring seal make it a dependable choice for trade professionals.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: TRED2234

Technical Specifications

• Series: PC611
• Fitting Type: Tee
• End Style: Press x Press x Press
• Nominal Size: 2 inches x 2 inches x 3/4 inches
• Material: Wrought Copper
• Copper Alloy: ASTM B75 Alloy C12200
• Pressure Rating: 200 psi Cold Working Pressure
• Temperature Rating: -20 to 250 degrees Fahrenheit
• O-Ring Material: EPDM
• Lead-Free: Yes
• Origin: Domestic
