Nibco TRED1134 Wrot Copper Press Tee 1 Inches X 1 Inches X 3/4 Inches Press X Press X Press PC611

Product Description

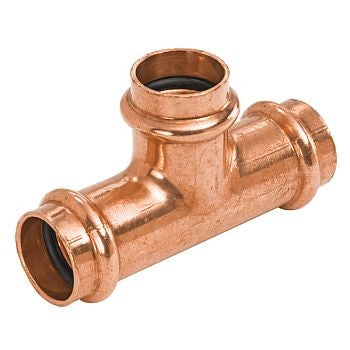

The NIBCO TRED1134 is a wrot copper press tee designed for use in the NIBCO PC611 Press System. It connects two run pipes and one branch pipe using press-style end connections on all three ports, configured as Press x Press x Press. The fitting measures 1 inches x 1 inches x 3/4 inches, making it a reducing tee that allows a 3/4 inch branch to be taken off a 1 inch main line. This configuration is common in commercial and residential plumbing systems where a continuous pipeline needs to branch in a different direction without interrupting flow. HVAC contractors, plumbers, and mechanical installers rely on this type of fitting for copper tube installations where speed and safety are priorities. The NIBCO press system eliminates the need for open flame, solder, or flux. A pressing tool applies force to the fitting, compressing the inboard EPDM O-ring tightly around the copper tube. This creates a watertight, leak-free seal in seconds. The result is a faster installation process with lower fire risk compared to traditional soldered connections. The fitting is manufactured from ASTM B75 Alloy C12200 copper, a phosphorus-deoxidized grade known for its excellent solderability and corrosion resistance. It is dezincification resistant and fully lead-free, meeting modern plumbing code requirements for potable water systems. The pressure rating is 200 psi cold working pressure, and the temperature range spans from -20 to 250 degrees Fahrenheit. This wide operating range makes the TRED1134 suitable for both hot and cold domestic water lines, as well as hydronic heating and cooling applications. The fitting is domestically produced and built to meet the demands of professional trade installers who need a reliable, code-compliant copper press tee for high-volume or time-sensitive jobs.

• Press x Press x Press connection on all three ports eliminates flame, solder, and flux for faster, safer installation
• EPDM O-ring with inboard bead design creates a watertight seal when pressed with a standard pressing tool
• Lead-free wrot copper construction meets potable water code requirements and ASTM B75 Alloy C12200 standards

Product Highlights

The NIBCO TRED1134 press tee delivers a fast, flame-free copper connection rated at 200 psi for professional plumbing and HVAC installations. Its reducing 1 inches x 1 inches x 3/4 inches configuration makes it a practical choice for branching off a main copper line without soldering.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: TRED1134

Technical Specifications

• Series: PC611
• Fitting Type: Tee
• End Style: Press x Press x Press
• Material: Wrot Copper
• Copper Alloy: ASTM B75 Alloy C12200
• Nominal Size: 1 inches x 1 inches x 3/4 inches
• Pressure Rating: 200 psi Cold Working Pressure
• Temperature Rating: -20 to 250 degrees Fahrenheit
• O-Ring Material: EPDM
• Lead-Free: Yes
• Dezincification Resistant: Yes
• Origin: Domestic
