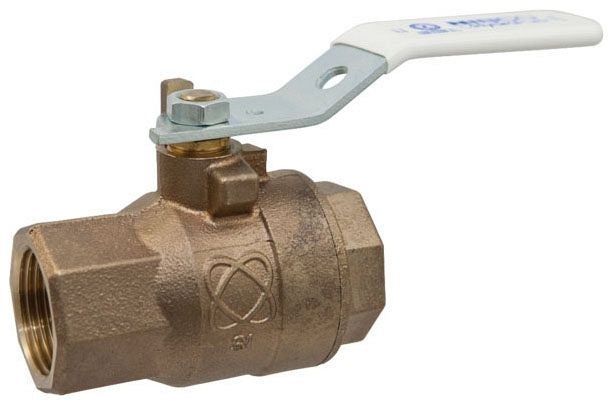

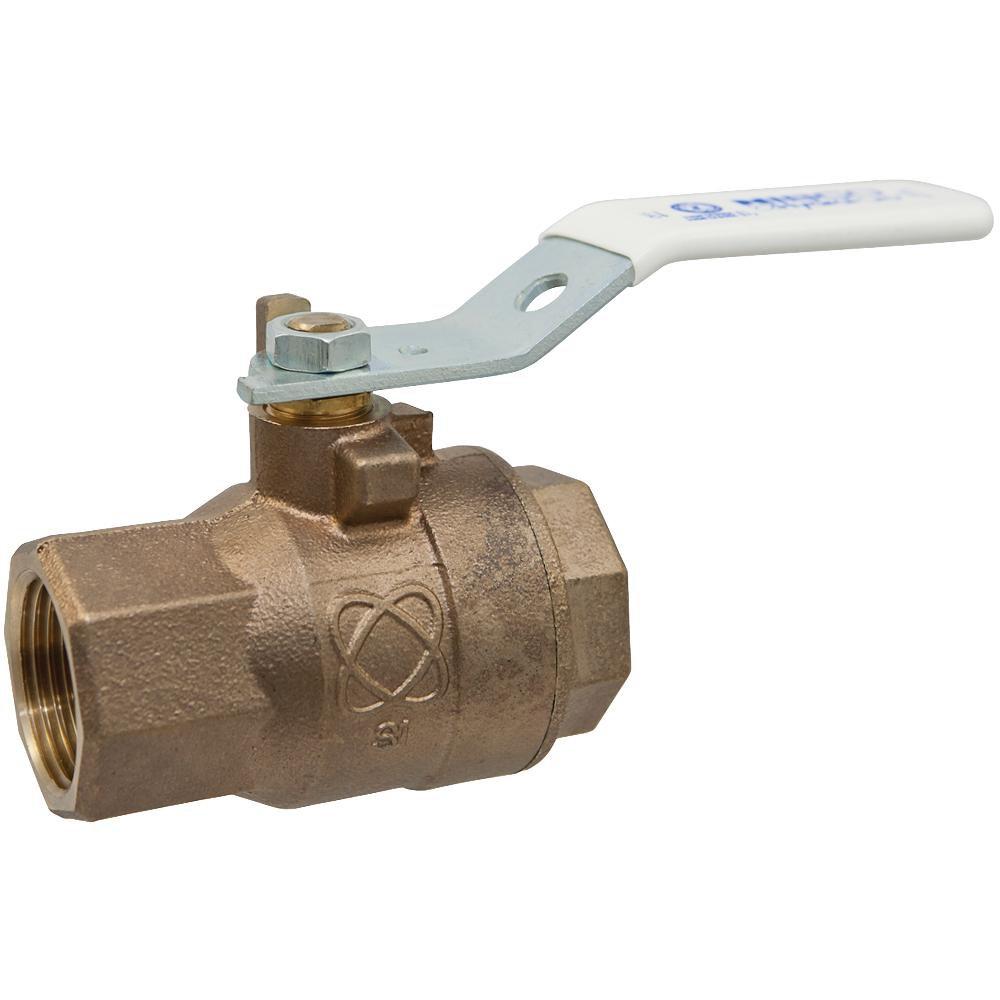

Nibco T58580LF-1-1/4 Two-piece Bronze Ball Valve 1-1/4 in (NT58580LFH)

Product Description

The Nibco T58580LF-1-1/4 is a two-piece, lead-free silicon bronze full-port threaded ball valve for potable water applications rated to 600 psi and 300 F. It provides quarter-turn operation and bubble-tight shutoff, with reinforced PTFE seats and a blowout-proof silicon bronze stem and ball. The valve uses female threaded end connections (FIPT x FPT) and accepts a standard lever or optional locking and memory-stop handles.

• 600 psi (41.4 bar) non-shock cold working pressure; temperature range -20 to 300 F, maximum 300 F
• Silicon performance bronze body, ball and stem with reinforced PTFE (RPTFE) seats and dezincification resistance
• Full-port design with female threaded end connections (FIPT x FPT), blowout-proof stem, quarter-turn operation

Product Highlights

Full-port 1-1/4 in silicon bronze ball valve; 600 psi, -20 to 300 F; FIPT x FPT threaded connections; lead-free and dezincification resistant.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: T58580LF-1-1/4
• Country of Origin: Domestic (USA)

Technical Specifications

• Brand: Nibco
• Manufacturer Part Number: T58580LF-1-1/4
• Series / Model: T-585-80-LF
• Nominal Size: 1-1/4 in
• Valve Type: Two-piece ball valve
• Port Type: Full port
• End Connections: Threaded (FIPT x FPT, female NPT threaded)
• Pressure Rating: 600 psi (41.4 bar) non-shock cold working pressure
• Pressure Class: 600#
• Temperature Range: -20 to 300 F
• Maximum Temperature: 300 F
• Minimum Temperature: -20 F
• Body Material: Silicon Performance Bronze (Silicon Bronze, B584, C87600)
• Ball Material: Silicon Bronze
• Stem Material: Silicon Bronze (blowout-proof stem)
• Seat Material: Reinforced PTFE (RPTFE)
• Stem Type: Blowout-proof
• Handle: Standard lever handle; optional NIB-SEAL, locking lever, memory stop, extended lever, round and wing
• Dezincification Resistance: Yes
• Lead-free / Low Lead Compliance: Yes (HydraPure lead-free markings; NSF/ANSI/CAN-372 compliant)
• Recommended Application: Potable water for residential and commercial construction
• Certifications / Standards: MSS SP-110; NSF/ANSI/CAN-61; NSF/ANSI/CAN-372; IAPMO/ANSI Z1157; cUPC; IAPMO
• Material Standards: ASTM references and MSS SP-110, MSS SP-145 (per manufacturer data)
• Valve Disc Material: Stainless steel (as noted in manufacturer data)
• Turn Operation: Quarter-turn
• Dimensions (Length): 8.62 in
• Dimensions (Width): 4.25 in
• Dimensions (Height): 2.31 in
