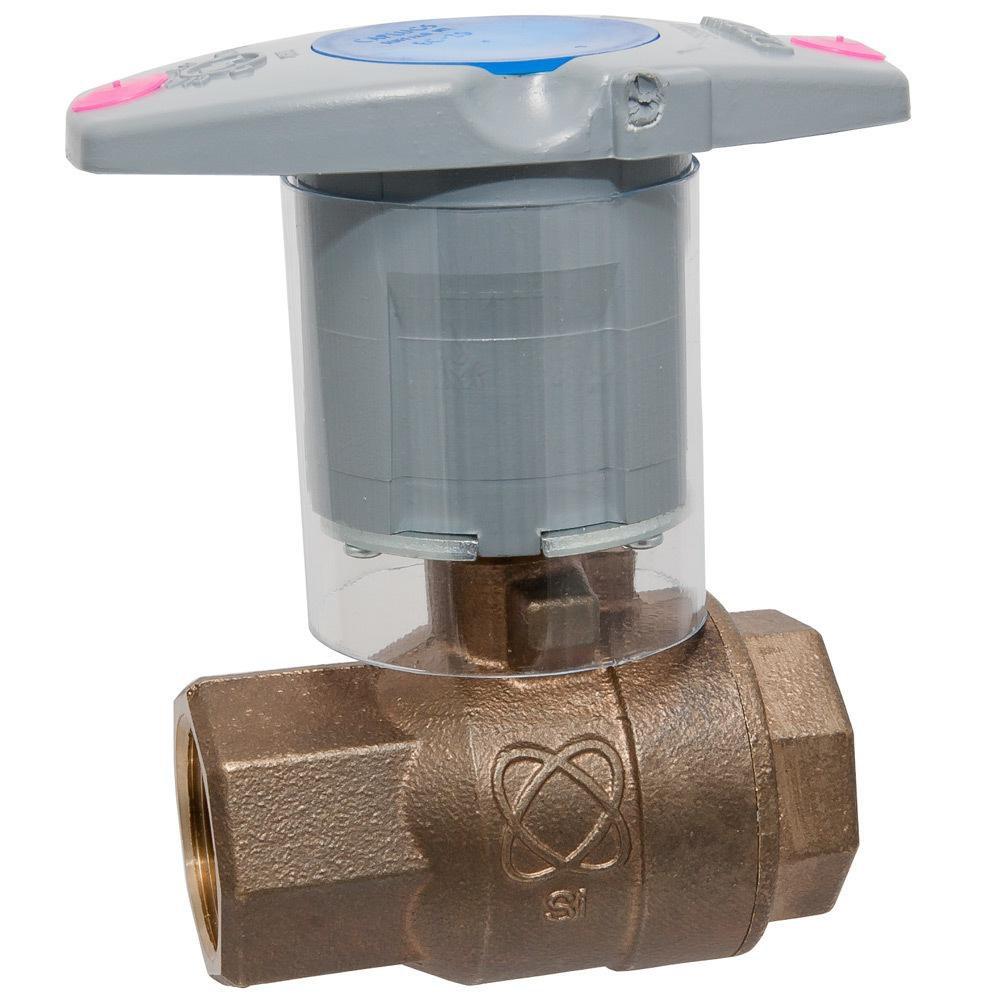

Nibco T58566LF-2IN T-585-66-LF DZR silicon bronze full port NPT 600 psi ball valve (2 in) NL95HMD

Product Description

Nibco T58566LF-2IN is a 2 in DZR silicon bronze full port ball valve with NPT threaded end connections, rated for 600 psi non-shock cold working pressure and a maximum temperature of 300 F. The valve includes PTFE seats, a vented ball, and a blowout-proof stem, and features a standard lever handle and two-piece body. It is dezincification resistant, lead law compliant, and certified to NSF 61 and NSF 372.

• Full port 2 in DZR silicon bronze construction with NPT threaded ends and two-piece body.
• PTFE valve seats, vented ball, and blowout-proof stem for secure flow control.
• Rated 600 psi non-shock cold working pressure; maximum temperature 300 F; NSF 61 and NSF 372 certified and lead law compliant.

Product Highlights

2 in DZR silicon bronze full port ball valve; 600 psi; PTFE seats; NPT ends

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: T58566LF-2IN

Technical Specifications

• Brand: Nibco
• MPN: T58566LF-2IN
• Alternate Part Number: NL95HMD
• Model / Collection: T-585-66-LF
• Valve Type: Ball valve
• Valve Size: 2 in
• Material: Silicon bronze (dezincification resistant - DZR)
• Material Type: DZR
• End Connection: NPT (threaded)
• Port Type: Full port
• Body Style: Two piece
• Seat Material: PTFE
• Operator: Standard lever handle (optional NIB-SEAL)
• Vented Ball: Yes
• Stem Type: Blowout-proof stem
• Pressure - Maximum: 600 psi (non-shock cold working pressure)
• Pressure Class: 600 psi
• Maximum Temperature: 300 F
• Certifications: NSF 61, NSF 372
• Lead Law Compliance: Lead law compliant
• Standards: ANSI 61, ANSI 372; ASTM B-16, ASTM B-584; MSS SP-110
