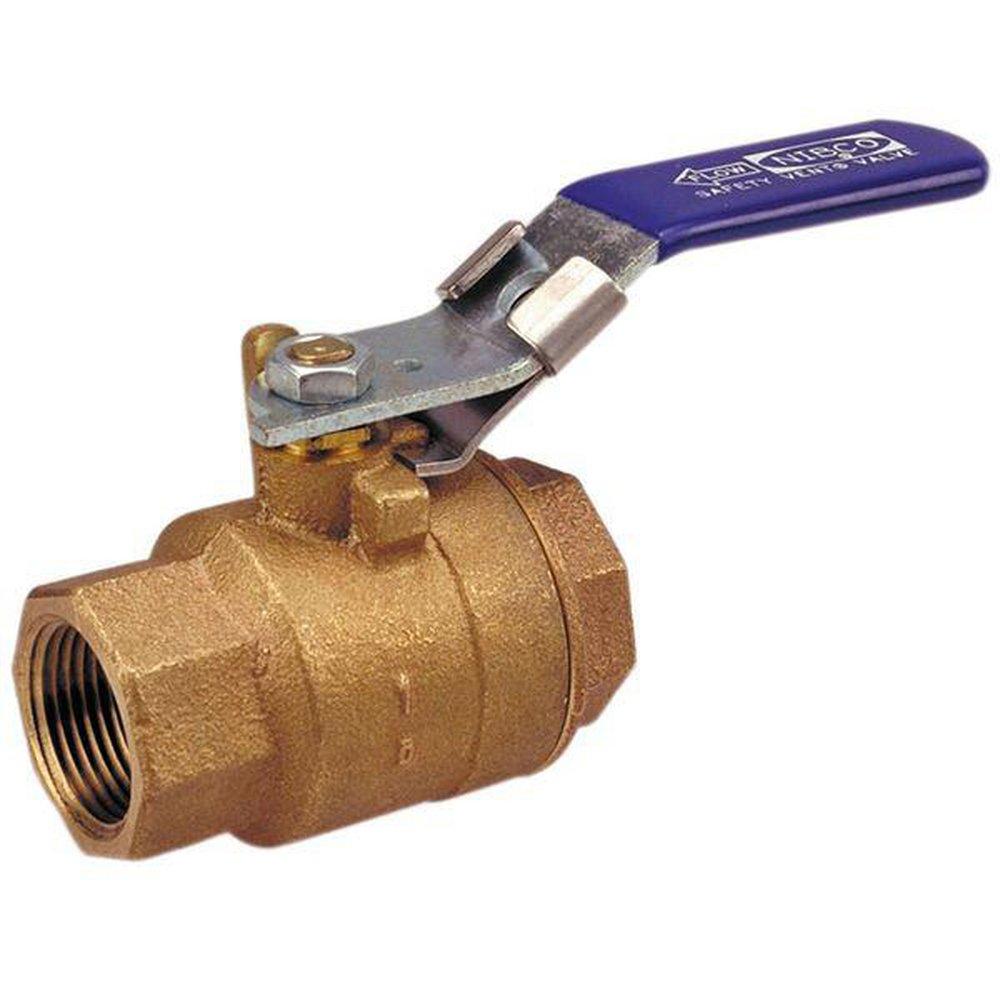

NIBCO NL95076 T-585-70-UL 1/2 in. Bronze Full Port Threaded 600# Ball Valve

Product Description

The NIBCO NL95076 is a quality 1/2 inch bronze full port threaded ball valve designed for various applications. This valve features a pressure rating of 600 psi, making it suitable for air and gas media.

• Designed for compressed air line applications
• Threaded end connections
• Max temperature rating of 180 degrees Fahrenheit

Product Highlights

The NIBCO NL95076 ball valve provides a reliable shutoff with its full port design and includes a locking lever handle for safety. Its dezincification-resistant construction ensures durability in various environments.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL95076

Technical Specifications

• Type: 2-Piece
• Pressure Rating: 600 psi
• Temperature Rating: 180 degrees Fahrenheit
• Body Material: Cast Red Bronze
• Ball Material: Chrome Plated Brass
• End Style: FNPT
• Inlet to Outlet Length: 2.44 inches
• Top to Inlet Center: 1.88 inches
• Media: Air/Gas
• Component Material: PTFE
• Actuator Type: Locking Lever
