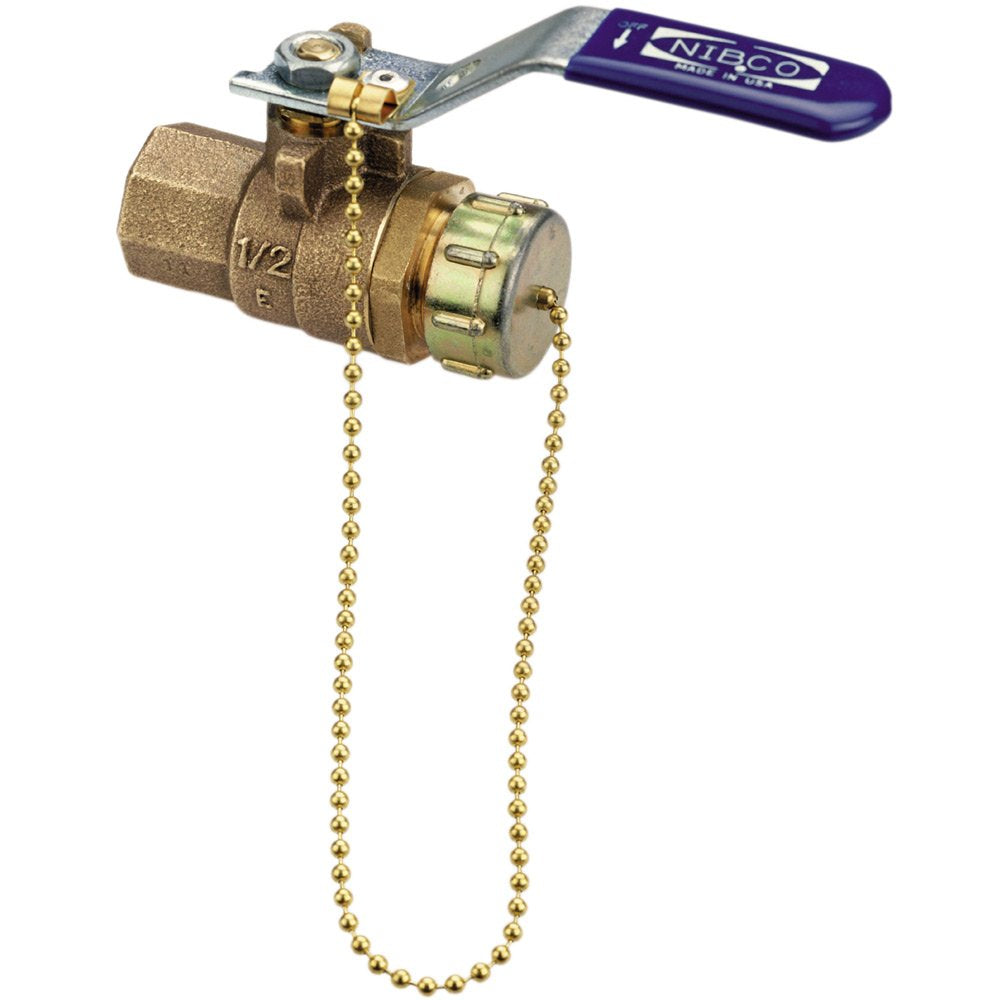

NIBCO NL95806 T-585-70-HC Cast Bronze Ball Valve 600# 1/2 x 3/4 Hose Cap Chain

Product Description

NIBCO T-585-70-HC is a cast bronze ball valve designed for plumbing applications. The MPN is NL95806. This valve features a two-piece construction with a lever handle, suitable for connecting to a garden hose. It offers a robust design that withstands a pressure rating of six hundred psi.

• Full port design for maximum flow
• Dezincification resistant materials
• Threaded NPT x three-fourths inch hose end connections with a cap and chain

Product Highlights

The valve allows for easy connection to hoses, making it ideal for draining commercial lines.

Product Information

Standard Information

• Manufacturer: NIBCO
• Model Number: NL95806

Technical Specifications

• Nominal Size: 1/2 x 3/4 inch
• Pressure Rating: 600 psi
• Temperature Rating: 400 degrees Fahrenheit
• Body Material: Bronze
• Ball Material: Chrome Plated Brass
• Actuator Type: Standard Lever
• Inlet to Outlet Length: 2.84 inches
• Top to Inlet Center: 1.88 inches
• Softgoods Material: PTFE/Rubber/RPTFE
• Trim Material: Silicon Bronze Stem
• Port Type: Full
• Domestic/Import: Domestic
