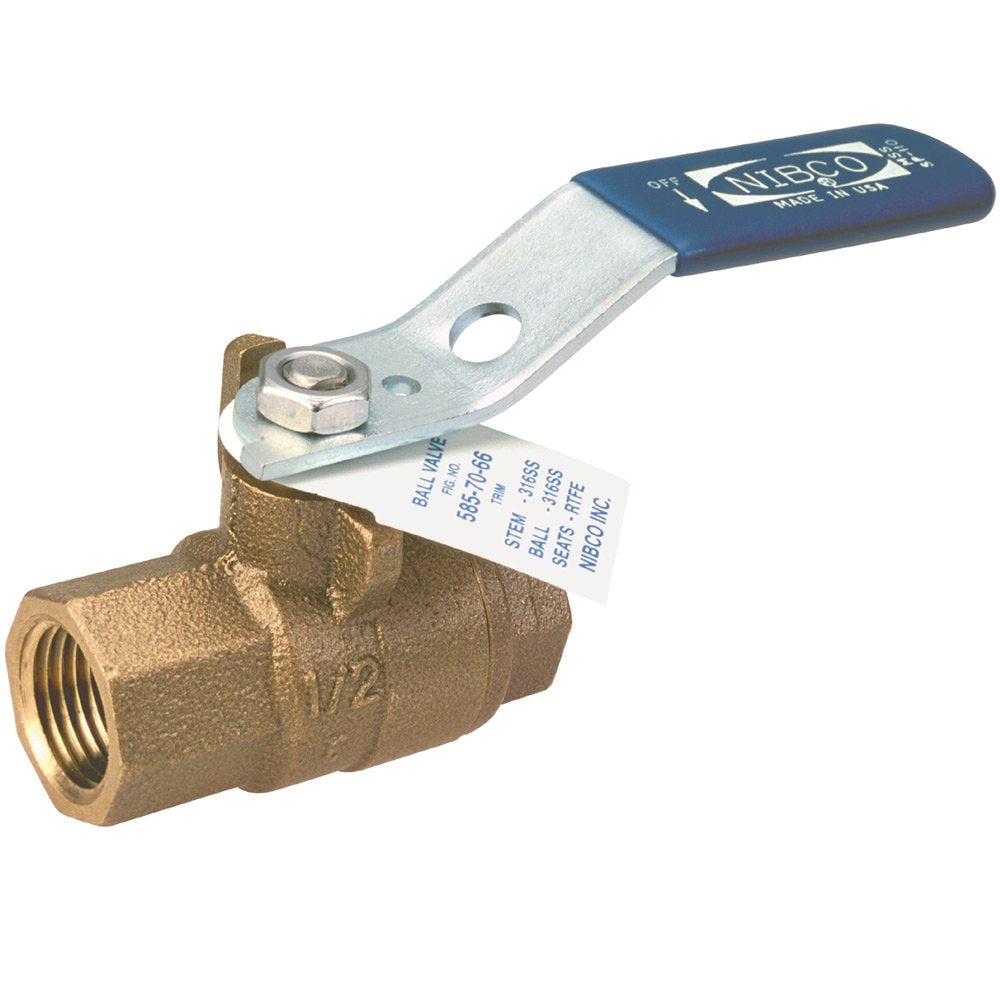

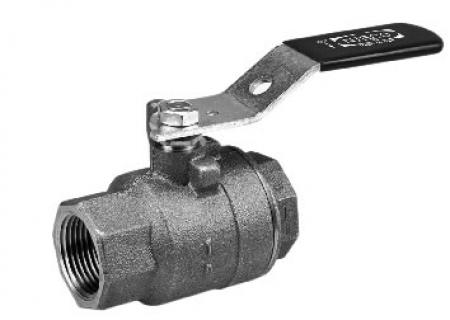

Nibco NL95H04 T-585-70-66 Bronze Ball Valve Stainless Steel Trim Two-Piece Lever Handle 1/4 inch FNPT

Product Description

The Nibco NL95H04 T-585-70-66 Ball Valve with a cast bronze body and stainless steel trim features a lever handle and 1/4 inch female NPT thread. It's designed for commercial and light industrial processes, including HVAC, water, steam, and gas applications.

• Quarter-turn operation (90 degrees).
• Full port valve for minimal pressure drop.
• Standard lever handle for easy use.

Product Highlights

The Nibco ball valve is ideal for various applications, ensuring reliable control of water, steam, gas, and HVAC systems with a temperature rating up to 400 degrees Fahrenheit. It has a pressure rating of 600 psi for cold working conditions, making it suitable for non-shock operations.

Product Information

Standard Information

• Manufacturer: NIBCO
• Brand: Nibco

Technical Specifications

• Actuator Type: Standard Lever
• Ball Material: Stainless Steel
• Body Material: Bronze
• End Style: FNPT
• Inlet to Outlet Length: 2 inches
• Media: Air/Gas/Water
• Nominal Size: 1/4 inch
• Orifice Size: 0.38 inches
• Port Type: Full
• Pressure Rating: 600 psi
• Series: T-585-70-66
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees Fahrenheit
• Top to Inlet Center: 1-3/4 inches
• Trim Material: Stainless Steel Stem
• Type: 2-Piece
