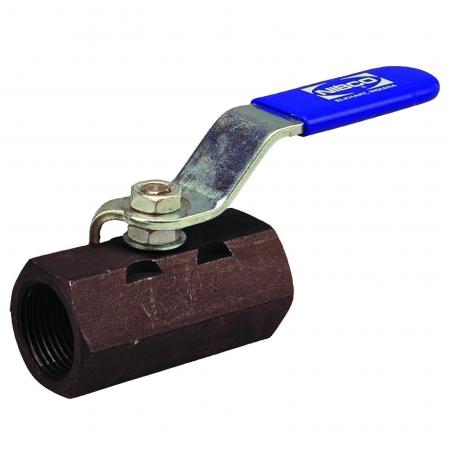

Nibco NL94GJ6 T570CSR66 1/2 Threaded Ball Lever Handle Carbon Steel

Product Description

The Nibco NL94GJ6 T570CSR66 1/2 Threaded Ball Lever Handle Carbon Steel Valve is a reliable choice for various applications. This valve, made by Nibco, features a 1/2 inch nominal size and FNPT end style. It is suitable for handling water and can withstand a pressure rating of 2000 psi and a temperature rating up to 400 degrees Fahrenheit.

• 1/2 inch nominal size
• FNPT end style
• 2000 psi pressure rating

Product Highlights

This Nibco ball valve is designed with a stainless steel ball and stem, ensuring durability and longevity. It also features a blowout-proof stem and a vented ball for enhanced safety. The valve is made from carbon steel with a 316 stainless steel trim and PTFE softgoods material.

Product Information

Standard Information

• Manufacturer: Nibco Inc
• MPN: NL94GJ6

Technical Specifications

• Type: 1-Piece
• Media: Water
• Series: T-570-CS-R-66
• End Style: FNPT
• Port Type: Reduced
• Nominal Size: 1/2 inch
• Orifice Size: 0.35 inch
• Actuator Type: Locking Lever Handle
• Ball Material: Stainless Steel
• Body Material: Carbon Steel
• Trim Material: 316 Stainless Steel Stem
• Domestic/Import: Import
• Pressure Rating: 2000 psi
• Softgoods Material: PTFE
• Temperature Rating: 400 degrees Fahrenheit
• Top to Inlet Center: 1.63 inch
• Inlet to Outlet Length: 2.19 inch
