NIBCO NL2K00D Globe Valve 2 in FNPT End Style 125 lb

Product Description

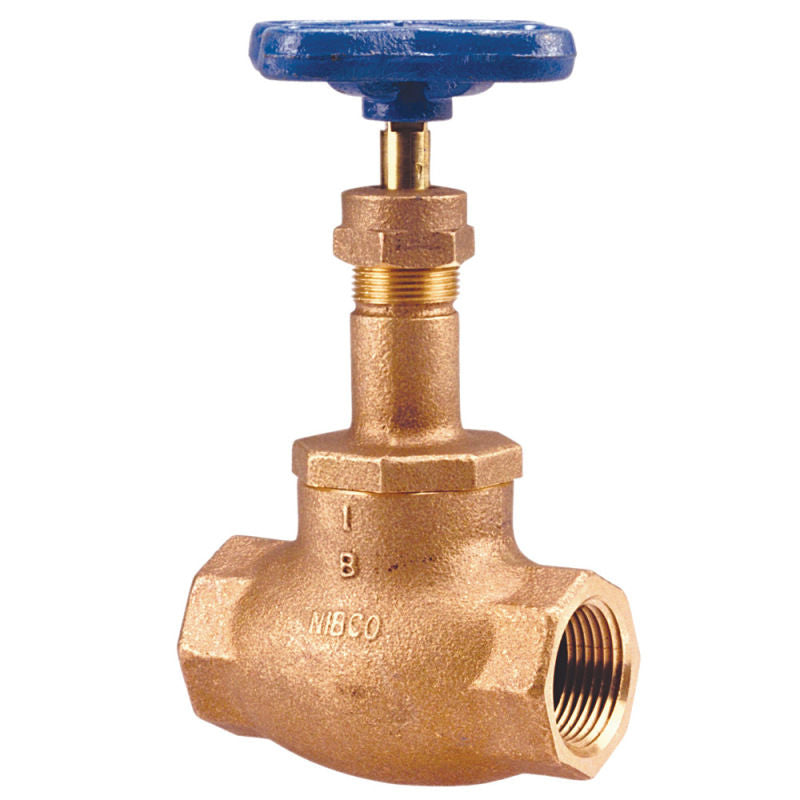

The NIBCO bronze globe valve, model NL2K00D, features a screw-in bonnet with an integral seat. This valve incorporates a renewable PTFE seat disc and comes with Class 125 female threaded ends for convenient installation. The globe valve is suitable for throttling or regulating flow in various applications.

This specific globe valve is ideal for bi-directional service in both commercial and industrial settings. It can handle hot and cold water, HVAC systems, steam, compressed air, gas, and other general utility services. NIBCO provides technical data sheets and chemical resistance guides to assist with engineering and installation.

NIBCO globe valves are extensively used due to their versatility and cost-effectiveness. These valves are covered by a 5-year 125% limited warranty, ensuring quality and reliability in various applications.

• Model: NL2K00D
• Media Compatibility: Suitable for water
• Warranty: Backed by a 5-year limited warranty

Product Highlights

This valve is engineered for robust performance across numerous applications, assuring efficiency in flow regulation.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Nominal Size: 2 in

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 5.63 in
• Media: Water
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Series: T-211-Y
• Softgoods Material: Aramid Fiber
• Top to Inlet Center: 7.94 in
• Trim Material: Silicon Bronze
