Product Description

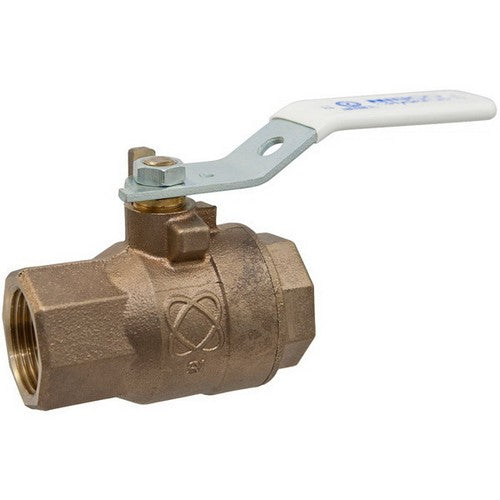

The Nibco T-585-80-LF is a full port ball valve designed for efficient flow control. This valve features a half-inch nominal size with NPT x NPT connections. It is suitable for applications requiring a reliable shut-off valve.
- Meets NSF/ANSI 61 section 8 and 372 standards for safety.
- Designed for high performance with a maximum pressure of six hundred psi.
- Constructed from lead-free silicon bronze for durability.
Product Highlights
This valve is ideal for potable water applications, with a lead-free construction that ensures safety in water delivery systems.
Product Information
Standard Information
-
Brand: Nibco
-
MPN: T-585-80-LF 1/2
Technical Specifications
-
Nominal Size: 1/2 inch
-
Connection Type: NPT x NPT
-
Opening Size: 0.5 inch
-
Body Material: B584 Alloy C87600 Silicon Bronze
-
Ball Material: Silicon Bronze B283 Alloy C69300
-
Stem: Silicon Bronze B371 Alloy C69300
-
Packing: Virgin PTFE
-
Construction: 2-Piece
-
Actuation/Operator: Lever Handle
-
Temperature Rating: 300 Deg F
-
Max. Pressure: 600 psi CWP
-
Max. Steam Pressure: 100 psi
