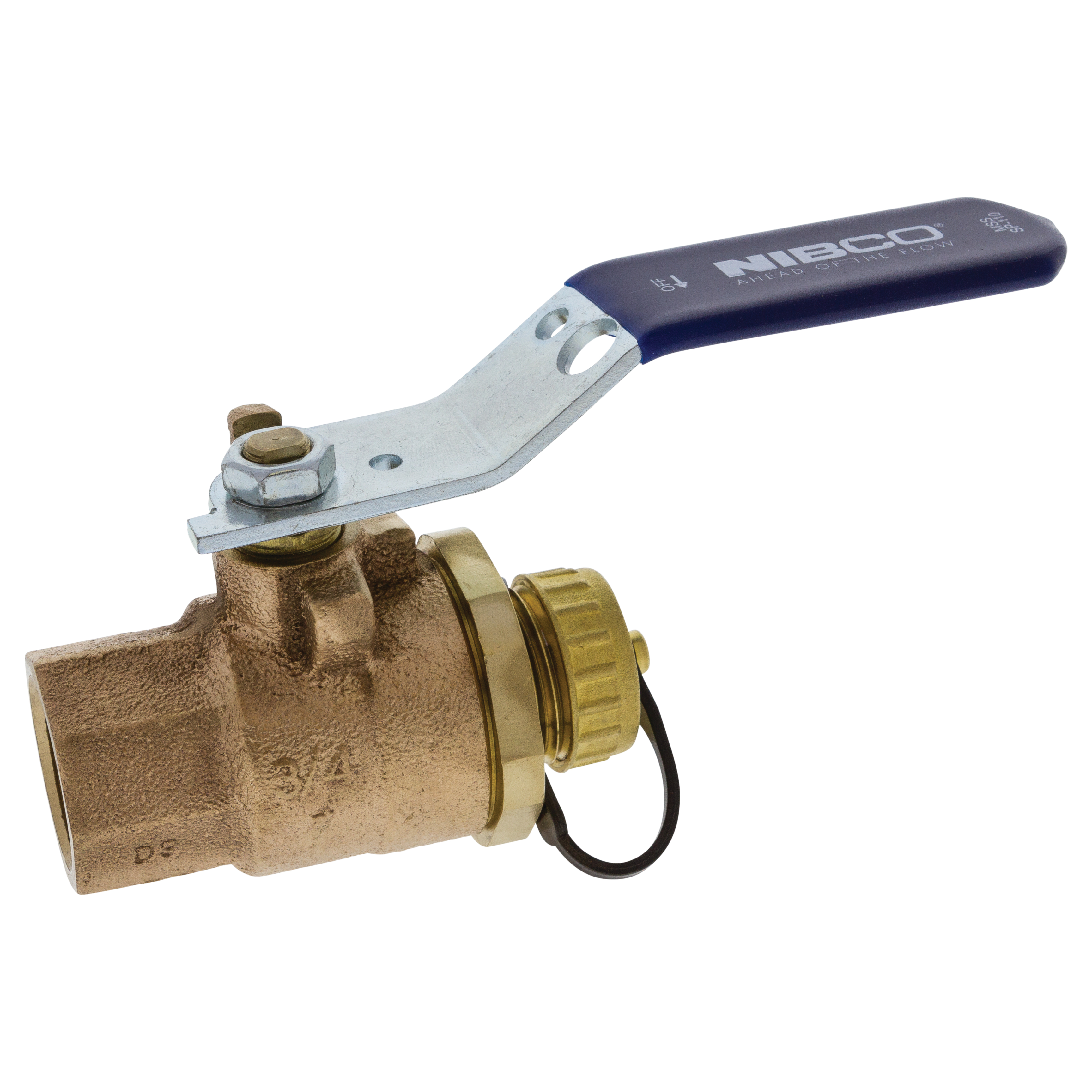

Nibco T-585-70-HC-34 Bronze Ball Valve 3/4 Inch

Product Description

The NIBCO T-585-70-HC-34 is a full port bronze ball valve designed for reliable shutoff in commercial, mechanical, and industrial piping systems. It features threaded end connections and delivers bubble-tight shutoff at up to 600 psi. Operation requires only a quarter-turn (90 degrees) from fully open to fully closed, making it fast and straightforward to operate. The valve includes a 3/4 inch hose cap with chain, keeping the outlet protected when not in service. Licensed plumbers and pipefitters are the primary installers for this type of valve in mechanical rooms and process piping.

This valve is suited for 3/4 inch threaded pipe installations across a range of commercial and industrial applications. Its full port design minimizes flow restriction, which is important in systems where pressure drop must be managed. The bronze construction offers solid performance in water service and general-purpose fluid handling. The hose cap and chain assembly makes it a practical choice for drain, test, or hose connection points where periodic access is required.

Key Features

• Full port design minimizes flow restriction through the valve body
• Bubble-tight shutoff rated to 600 psi
• Quarter-turn operation for fast open and close
• Threaded end connections for straightforward installation
• Includes 3/4 inch hose cap with retaining chain to protect outlet
• Bronze construction suited for water and general fluid service

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 3/4 inch threaded piping systems in commercial, mechanical, and industrial applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and NIBCO technical data sheets. Shut off system pressure and drain the line before removing or installing any valve. Use appropriate thread sealant on all threaded connections and verify joint integrity before returning the system to service. Refer to NIBCO valve selection guides and catalog for engineering and torque guidance specific to this product.

Technical Specifications

• End Connection: Threaded
• Port Type: Full Port
• Valve Size: 3/4 inch
• Shutoff Rating: 600 psi bubble-tight
• Operation: Quarter-turn (90 degrees)
• Body Material: Bronze
• Included Accessory: 3/4 inch hose cap with chain
• UPC: 039923796394

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: T-585-70-HC-34
