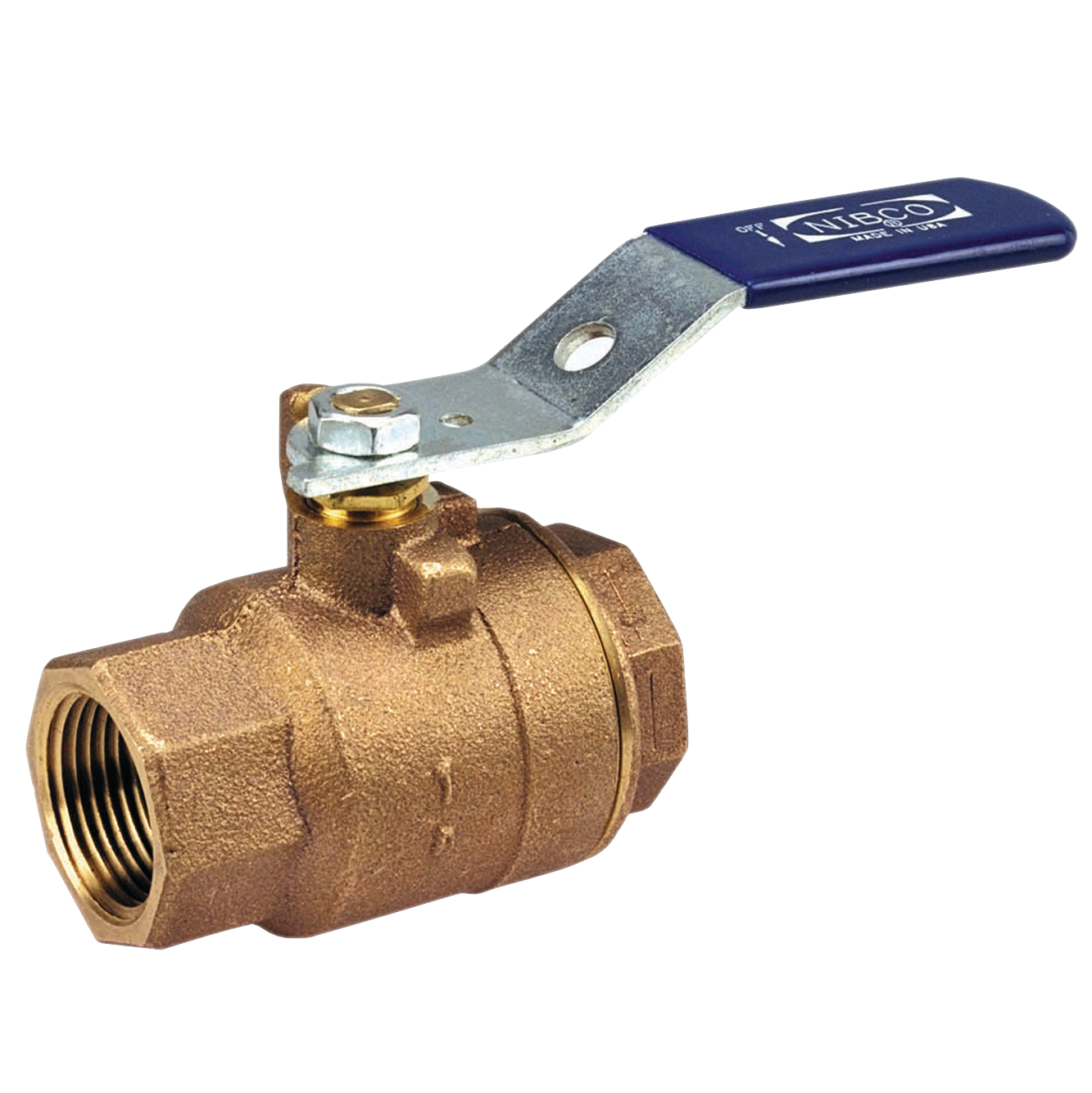

Nibco T-585-70-66-LX-1 Full Port Bronze Ball Valve 1in

Product Description

The NIBCO T-585-70-66-LX-1 is a full port bronze ball valve designed for quarter-turn operation, opening and closing with a 90-degree handle rotation. Built for commercial and light industrial service, it delivers reliable shutoff in piping systems handled by licensed plumbers and mechanical contractors. The full port design minimizes flow restriction, making it well suited for applications where pressure drop must be kept low. Bronze construction provides durability in a wide range of fluid and gas services commonly encountered in mechanical rooms and process piping.

This valve is used in commercial and light industrial piping systems across HVAC, plumbing, and process applications. Suitable services include hot and cold domestic water, low pressure steam, compressed air, LP gas, natural gas, and aggressive water conditions. The 1-inch threaded end connection makes it a direct fit for standard threaded pipe assemblies in new construction and retrofit work alike.

Key Features

• Quarter-turn operation opens and closes the valve with a 90-degree handle rotation
• Full port design minimizes pressure drop across the valve
• Bronze body construction suited for water, steam, air, and gas service
• Threaded end connections for standard pipe assembly
• 5-year limited warranty backed by NIBCO

Compatibility

Designed for use in commercial and light industrial threaded piping systems handling HVAC, domestic water, low pressure steam, compressed air, LP gas, natural gas, and aggressive water applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and NIBCO technical data sheet guidelines. Shut off and depressurize the piping system completely before removing or installing any valve. Use appropriate thread sealant rated for the intended service fluid. Refer to NIBCO valve selection guides and catalog for engineering specifications before specifying in steam or gas service.

Technical Specifications

• End Connection: Threaded
• Port Type: Full Port
• Body Material: Bronze
• Pipe Size: 1 inch
• Operation: Quarter-turn (90 degrees)
• UPC: 039923413123

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: T-585-70-66-LX-1
