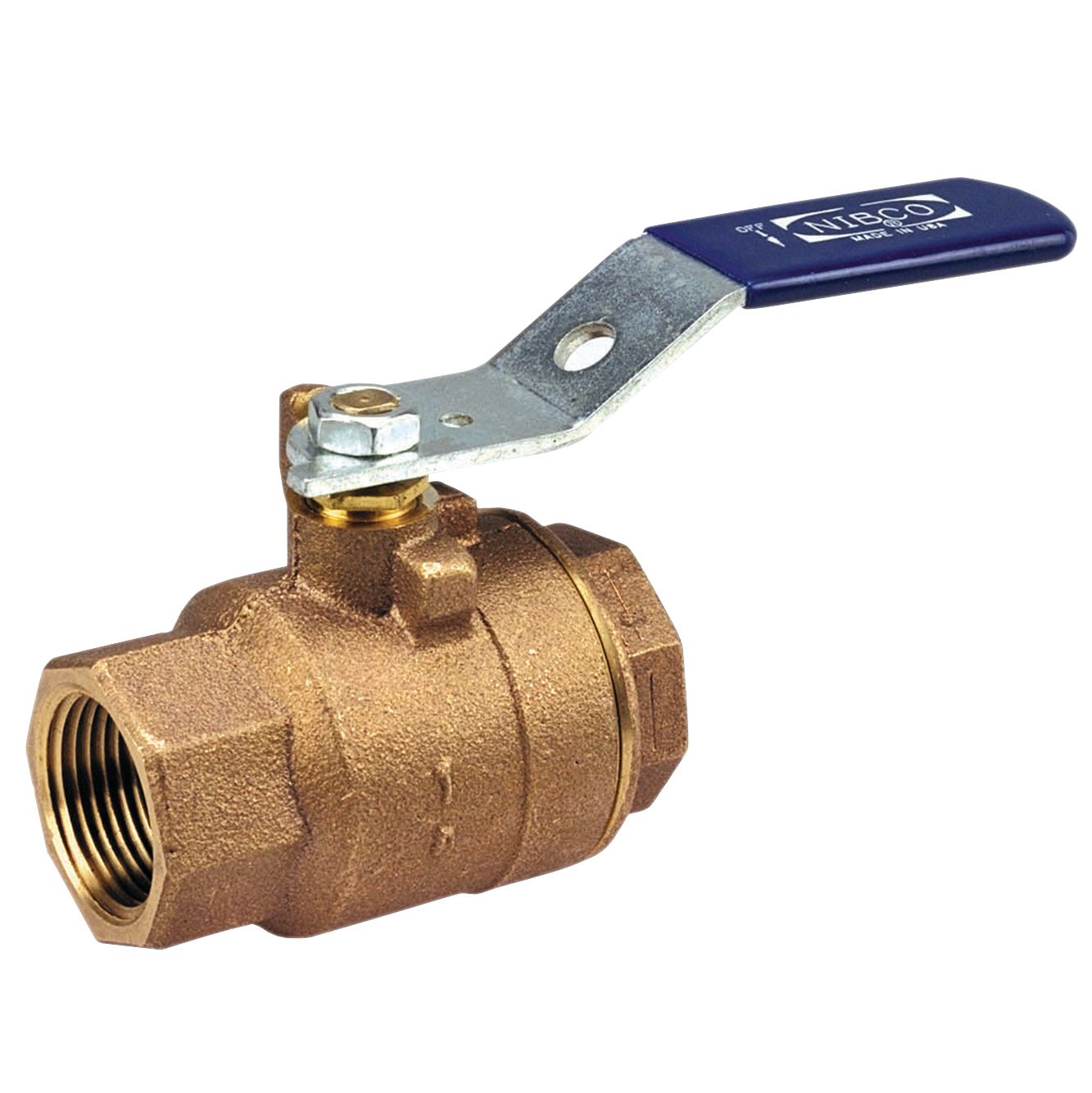

Nibco T-585-70-114 Full Port Bronze Ball Valve 1-1/4 in

Product Description

The NIBCO T-585-70-114 is a two-piece, full port bronze ball valve designed for reliable shutoff and flow control in commercial, mechanical, and industrial piping systems. It operates with a quarter-turn (90 degrees) from fully open to fully closed, reducing operator effort and speeding up service work. The valve features threaded end connections for straightforward installation into threaded pipe systems. Constructed in bronze, it is suited for a wide range of fluid handling applications where corrosion resistance and durability are required. Licensed plumbers and pipefitters are the typical installers for this type of valve in commercial and mechanical systems.

This valve is appropriate for use in commercial plumbing, mechanical rooms, hydronic systems, and light industrial process piping. The full port design minimizes flow restriction, making it a practical choice where pressure drop is a concern. The 1-1/4 inch threaded connection size fits standard NPT-threaded piping. It is commonly specified in both new construction and retrofit applications across commercial and industrial environments.

Key Features

• Quarter-turn operation for fast open and close actuation
• Full port design minimizes flow restriction and pressure drop
• Two-piece bronze body for corrosion resistance in plumbing and mechanical applications
• Threaded end connections for straightforward installation into NPT-threaded pipe
• Backed by the NIBCO 5-year 125% limited warranty

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 1-1/4 inch threaded piping in commercial, mechanical, and industrial systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and depressurize the system completely before removing any existing valve or fitting. Apply appropriate thread sealant or PTFE tape to NPT threads before making up connections. Consult the NIBCO technical data sheet and valve selection guide for engineering and torque guidance specific to this valve.

Technical Specifications

• Body Material: Bronze
• Port Type: Full Port
• End Connection: Threaded (NPT)
• Valve Configuration: Two-Piece
• Connection Size: 1-1/4 inches
• Operation: Quarter-Turn (90 degrees)
• UPC: 039923677648

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: T-585-70-114
