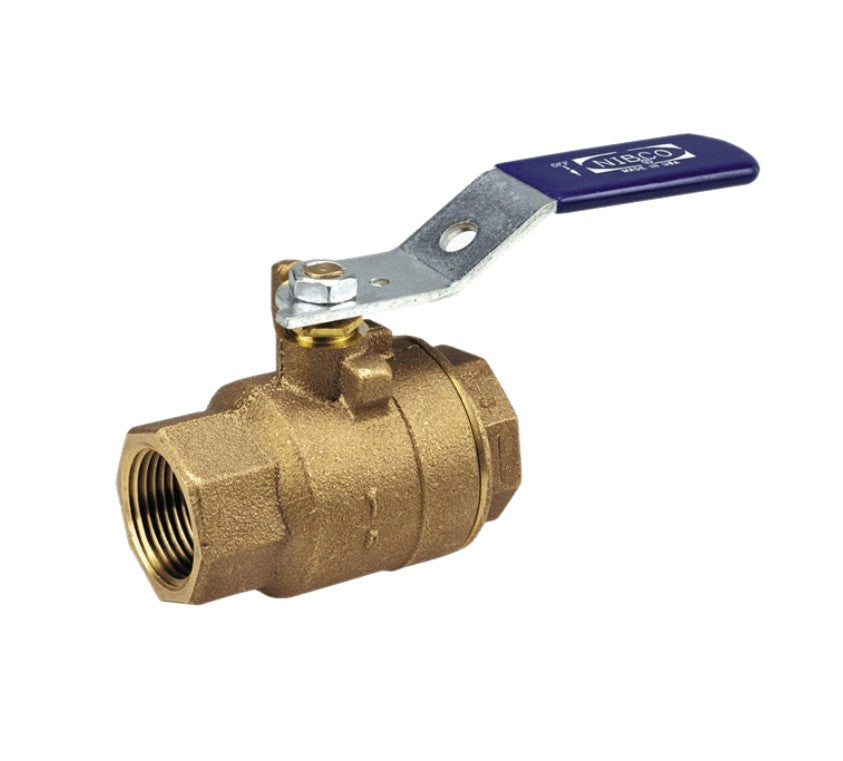

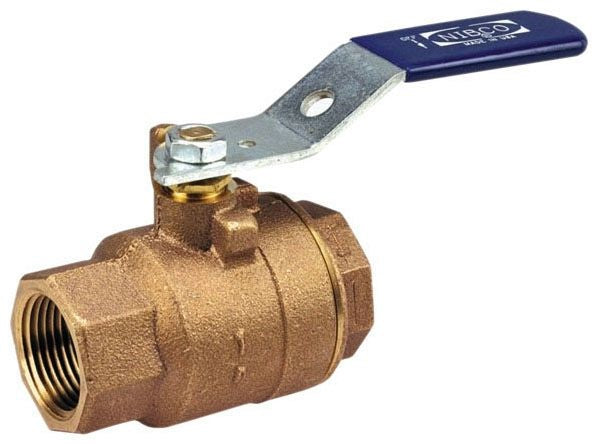

Nibco T-585-70-1/4 Two-Piece Bronze Ball Valve (1/4 in.) NL95004

Product Description

The NIBCO T-585-70-1/4 is a two-piece, full-port bronze ball valve with FNPT threaded ends designed for control and shutoff of air, gas, and water in commercial and HVAC systems. It features a blowout-proof silicon bronze stem, PTFE seats, a chrome-plated brass ball, and quarter-turn lever operation. The valve is rated to 600 psi non-shock cold working pressure and 400�F with a 0.38 in orifice.

• Full-port 1/4 in FNPT ball valve; 0.38 in orifice and 2 in inlet-to-outlet length
• Construction: cast bronze body, chrome-plated brass ball, silicon bronze stem, PTFE seats; dezincification resistant
• Ratings: 600 psi non-shock cold working pressure; temperature up to 400�F; quarter-turn lever actuator

Product Highlights

Full-port bronze ball valve, 1/4 in FNPT, 600 psi, PTFE seats, chrome-plated ball

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: T-585-70-1/4
• Country of Origin: United States (Domestic)

Technical Specifications

• Brand: NIBCO
• Manufacturer Part Number: T-585-70-1/4
• Replacement Manufacturer Part Number: NL95004
• Series: T-585-70
• Type: Two-Piece Ball Valve
• Nominal Size: 1/4 in
• End Style: FNPT (threaded)
• Port Type: Full (Full Port)
• Orifice Size: 0.38 in
• Inlet to Outlet Length: 2 in
• Top to Inlet Center: 1-3/4 in
• Body Material: Cast Bronze
• Ball Material: Chrome-plated Brass
• Stem / Trim Material: Silicon Bronze
• Seats / Softgoods: PTFE
• Actuator Type: Standard lever handle (quarter-turn 90�)
• Pressure Rating: 600 psi (41.4 bar) non-shock cold working pressure
• Temperature Rating: 400 deg F
• Conformance / Specification: MSS SP-110
• Dezincification Resistance: Yes
• Recommended Media / Applications: Air, gas, water; HVAC, condenser and chilled water, hot water heating, compressed air, commercial applications
• Domestic / Import: Domestic
