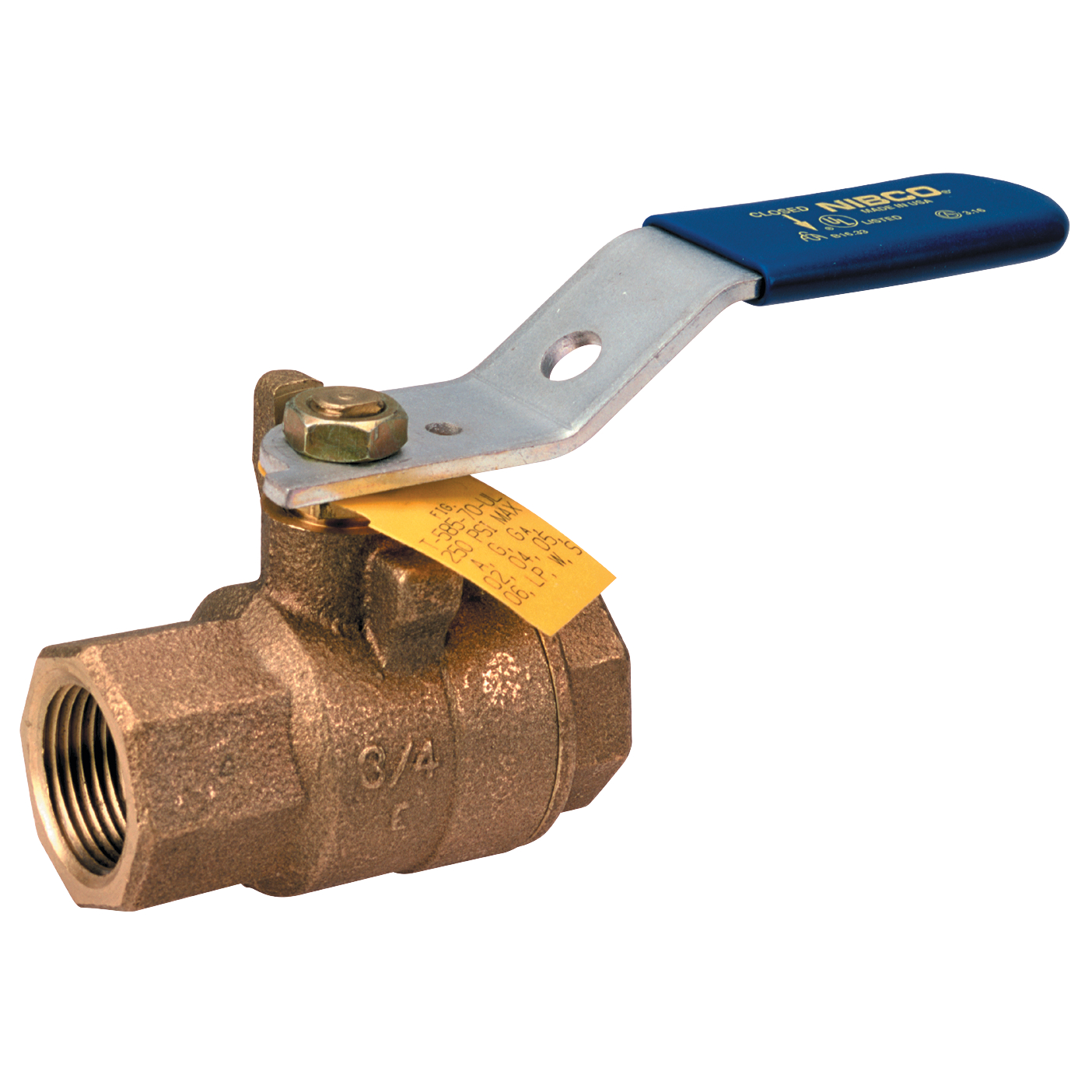

Nibco T-580-70-UL-2 Bronze Ball Valve 2 Inch

Product Description

The NIBCO T-580-70-UL-2 is a two-piece bronze ball valve designed for reliable flow control with a quarter-turn operation, rotating 90 degrees from fully open to fully closed. Threaded end connections simplify installation in new construction and retrofit applications. The bronze body construction provides corrosion resistance suited to water, light oil, and similar media found in commercial and mechanical piping systems. Licensed plumbers and mechanical contractors typically install this valve in commercial, mechanical, and industrial piping systems where a durable, straightforward shutoff solution is required.

This valve is a fit for commercial mechanical rooms, industrial process piping, and general plumbing distribution systems. Its two-piece body design allows for in-line serviceability, and the threaded connections make it compatible with standard pipe fittings in typical commercial and light industrial installations. The quarter-turn operation provides fast, positive shutoff suited to high-cycle service environments.

Key Features

• Quarter-turn operation provides fast 90-degree open-to-close shutoff
• Two-piece bronze body construction for corrosion resistance and durability
• Threaded end connections for straightforward installation and retrofit compatibility
• Suitable for commercial, mechanical, and industrial piping applications
• Backed by NIBCO 5-year 125% limited warranty

Compatibility

Designed as an OEM-style replacement or direct installation option for 2-inch threaded bronze ball valve applications in commercial, mechanical, and industrial piping systems.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical contractor in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve system pressure before beginning installation or removal. Use appropriate pipe thread sealant or tape on threaded connections and avoid over-tightening, which can damage valve seats. Refer to the NIBCO technical data sheet and installation guide for engineering specifications and mounting orientation requirements.

Technical Specifications

• Body Material: Bronze
• Valve Type: Ball Valve
• Configuration: Two-Piece
• Connection Type: Threaded End
• Operation: Quarter-Turn (90 degrees)
• Size: 2 inches
• Warranty: 5-Year 125% Limited
• UPC: 039923675743

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: T-580-70-UL-2
