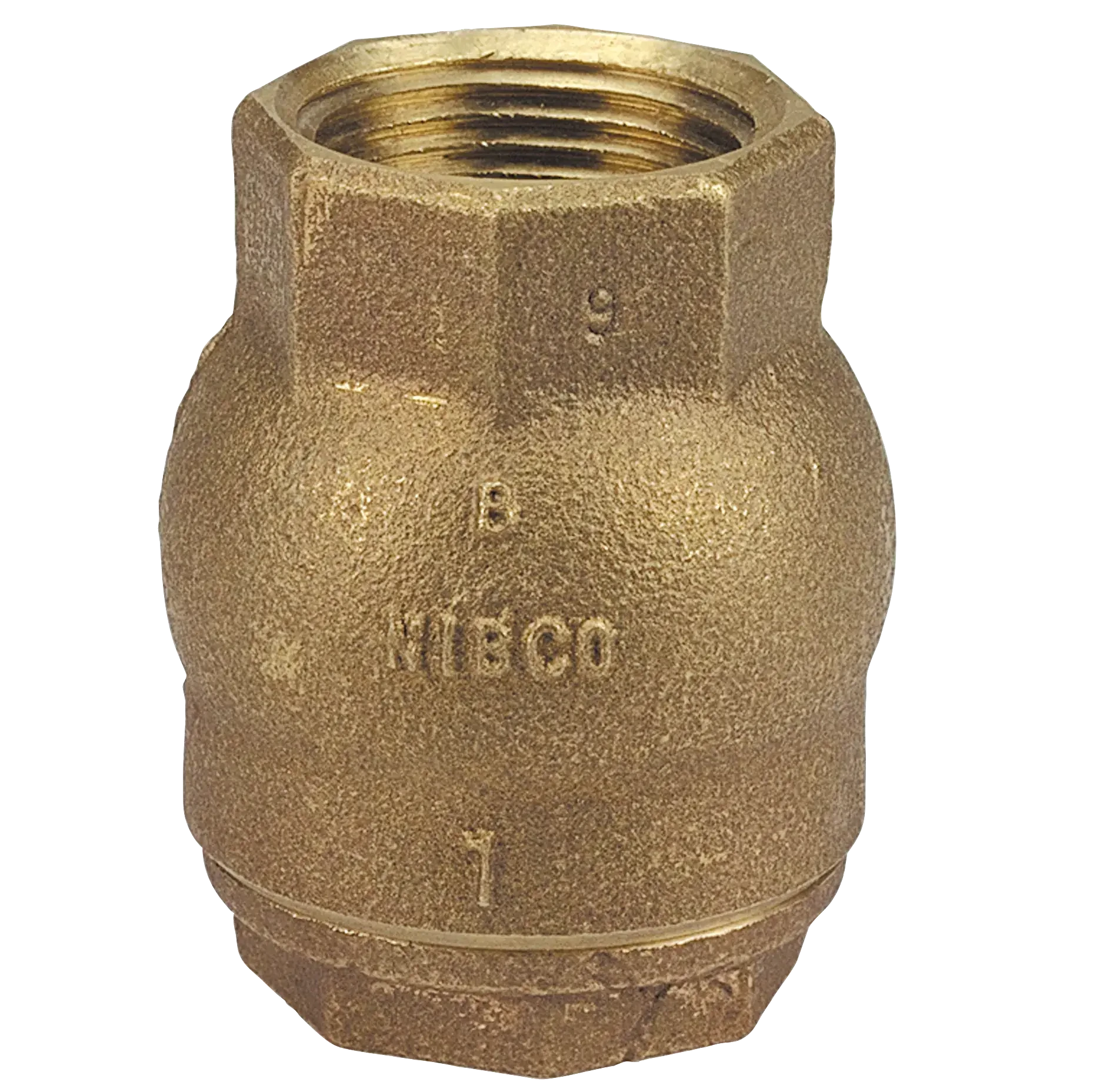

Nibco T-480-Y-1-1/2 Bronze Ring Check Valve PTFE Disc (1-1/2)

Product Description

The Nibco T-480-Y-1-1/2 is a bronze in-line lift-type Ring Check valve with a spring-assisted PTFE resilient seat disc that prevents backflow by closing when flow reverses. It has Class 125 threaded ends, a 200 psi non-shock cold working pressure rating, and is rated for saturated steam service to 125 psi and 353 F (178 C). The valve actuates with a low 1/2 psi cracking pressure and conforms to MSS SP-80.

• In-line, spring-assisted self-closing PTFE disc for backflow prevention with 1/2 psi cracking pressure
• Steam service rated to 125 psi / 8.6 bar and 353 F / 178 C; 200 psi / 14 bar non-shock cold working pressure
• Class 125 threaded end connections; conforms to MSS SP-80

Product Highlights

Bronze in-line lift-type check valve with PTFE resilient seat, spring actuation, Class 125 threaded ends, MSS SP-80 compliance

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: T-480-Y-1-1/2
