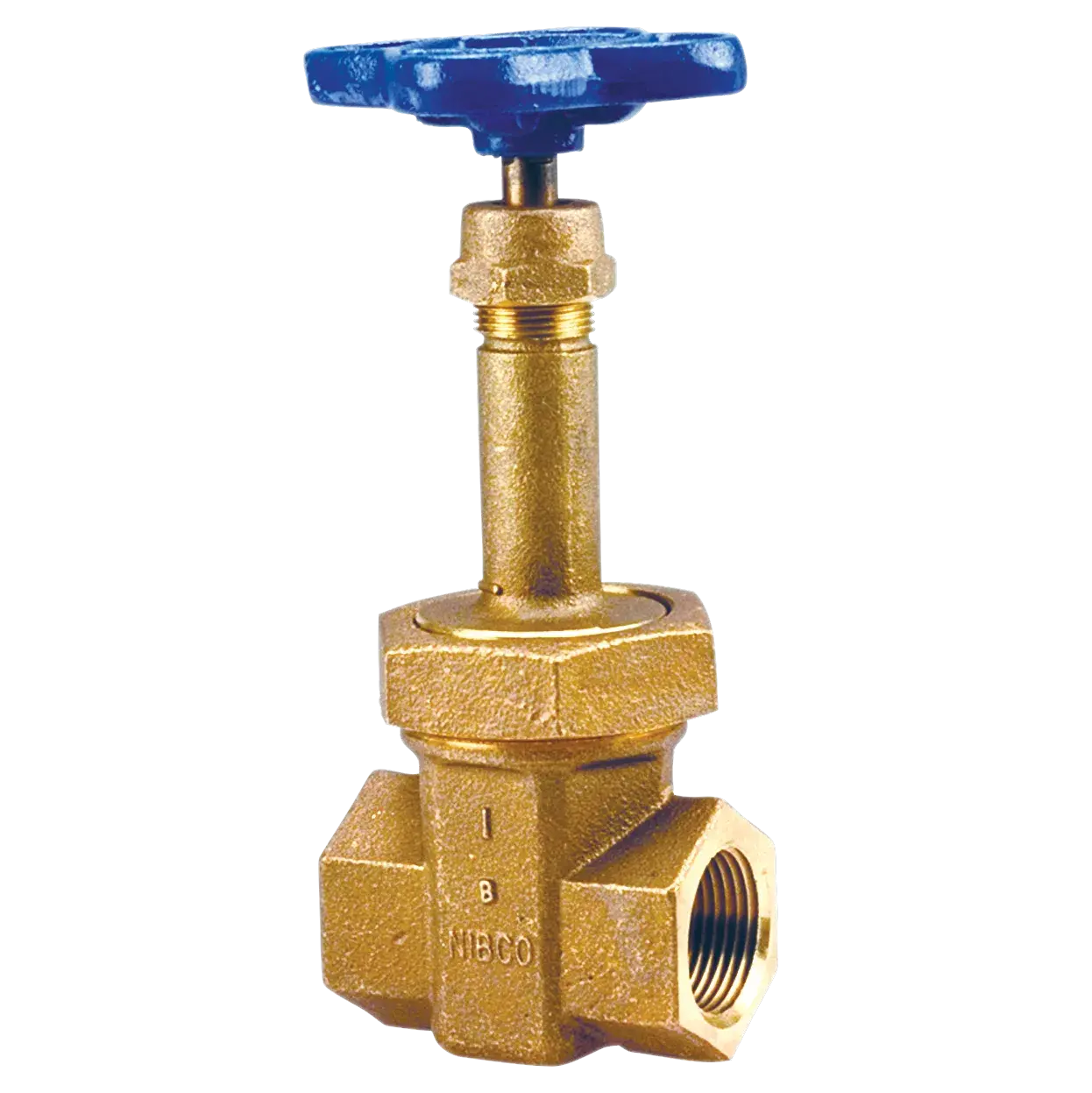

Nibco T-174-A-2 Gate Valve - Bronze, Class 300, Block Pattern, Copper Nickel Alloy Wedge

Product Description

The NIBCO bronze gate valve features a union bonnet for service where reparability in-line is required. Rising stem gate valves are used when shutoff is required and a quick visual indicator of open/closed position is needed. Female threaded ends allow for ease of installation. The copper nickel alloy solid wedge, integral seats and bi-directional service make the gate valve a good choice for higher pressures, temperature and corrosive services.

• Rising stem
• Alloy solid wedge
• Union bonnet
• Block pattern
• Class 300 threaded end connections

Product Highlights

This bronze gate valve is dezincification resistant and conforms to MSS SP-80. It is suitable for use in commercial and industrial applications, HVAC, specifically for medium to high pressure steam, and other general utility services.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: T-174-A-2

Technical Specifications

• End Connection 1: FPT
• End Connection 2: FPT
• End Connections: FPT
• FM Approved: No
• Handle Material: Malleable Iron
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• Material: Bronze, Copper Nickel Alloy
• Maximum Temperature: 421
• NSF Certified: No
• Pressure - High: 300, 600
• Pressure Class: 300#
• Recommended Valve Application: Cold Working Pressure, Air, Commercial, Gas, HVAC, Industrial, Steam, Water
• UL Listed: No
• Valve Body Material: Bronze
• Valve Body Style: Threaded
• Valve Bonnet Type: Union
• Valve Disc Material: Copper Nickel Alloy
• Valve Operator: Handwheel
• Valve Port Opening: Full Port
• Valve Size: 2 in
• Valve Stem: Rising
• Valve Type: Gate Valve
• Seat Material: Bronze
• Turns/Operation: Multi-Turn
• Description: T174A 1 1/2 THD 300# RS GATE BRZ
