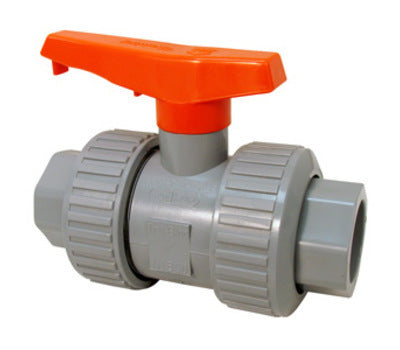

NIBCO S51TB-E Tru-Bloc C Model 4 in. Socket x Socket CPVC True Union Ball Valve

Product Description

The NIBCO S51TB-E Tru-Bloc true union ball valve offers reliable flow control. This valve features a self-adjusting seat and upstream and downstream blocking capability. It effectively stops flow when a union is disconnected for service.

• Valve pressure rating of 150 PSI at seventy-three degrees Fahrenheit for non-shock full port.
• Maximum service temperature of two hundred ten degrees Fahrenheit.
• Constructed with EPDM O-rings and socket end connections.

Product Highlights

This valve is ideal for hot corrosive liquids, water distribution, and chemical processing among other applications.

Product Information

Standard Information

• Brand: NIBCO Chemtrol Valves
• Model Number: S51TB-E

Technical Specifications

• Construction Material: CPVC with EPDM O-rings
• Pressure Rating: 150 PSI
• Maximum Temperature: 210 degrees Fahrenheit
• Type: True union ball valve
• End Connection: Socket
• Standards Met: ASTM F1970, NSF/ANSI 14, NSF/ANSI 61 Annex G
• Color: Light gray
• Product Length: Four inches
