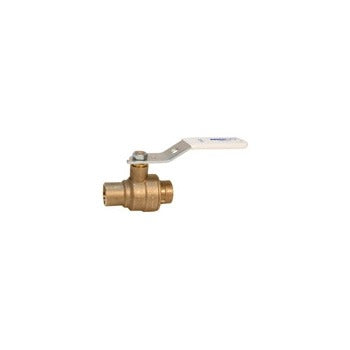

NIBCO Nibco S-685-80-LF 1/2 Solder Full Port Ball Valve (1/2)
NIBCO Nibco S-685-80-LF 1/2 Solder Full Port Ball Valve (1/2)
NIBCO Nibco S-685-80-LF 1/2 Solder Full Port Ball Valve (1/2)
NIBCO Nibco S-685-80-LF 1/2 Solder Full Port Ball Valve (1/2)

Nibco S-685-80-LF 1/2 Solder Full Port Ball Valve (1/2)

NIBCO
Brand: NIBCO
SKU: S-685-80-LF 1/2
Availability: In Stock

Ships same day if ordered by 12 pm
$48.29
$48.29
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The NIBCO S-685-80-LF 1/2 is a lead-free, two-piece full-port ball valve with solder ends designed for potable water applications. Constructed of dezincification-resistant bronze silicon alloy, it features a silicon bronze ball and stem, PTFE seats, a blowout-proof stem and a white handle for lead-free identification, and a 600 psi (41.4 bar) non-shock cold working pressure rating. Connections are solder cup type and the valve conforms to MSS SP-110 and NSF/ANSI/CAN-61/372.

  • Two-piece, full-port ball valve with solder ends for potable water
  • Lead-free dezincification-resistant bronze silicon alloy body with silicon bronze ball and stem and PTFE seats
  • 600 psi (41.4 bar) non-shock cold working pressure; blowout-proof stem and white handle identification

Product Highlights

Lead-free DZR bronze full-port ball valve, 1/2 inch, solder cup connection, PTFE seats, 600 psi CWP, MSS SP-110 and NSF/ANSI/CAN-61/372 certified

Product Information

Standard Information

  • Brand: NIBCO
  • Manufacturer Part Number: S-685-80-LF 1/2
Technical Specifications
Brand
NIBCO
Manufacturer Part Number
S-685-80-LF 1/2
Model / Series
S-685-80-LF
Type
Two-piece, full-port ball valve
Nominal Size
1/2 inch
Connection Type
Solder ends (female solder cup)
Body Material
Lead-free dezincification-resistant (DZR) bronze silicon alloy
Ball and Stem Material
Silicon bronze
Seats
PTFE
Stem Design
Blowout-proof stem
Handle
White handle (lead-free identification)
Pressure Rating (CWP)
600 psi / 41.4 bar non-shock cold working pressure
Pressure Rating (SWP at 300 F)
100 psi at 300 F
Standards / Certifications
MSS SP-110; NSF/ANSI/CAN-61/372
Dezincification Resistant
Yes
Lead Free
Yes
Weight
0.460 lb
Width
5.06 in
Dimensions (inlet center to top of handle)
2.01 in
Handle Length
3.95 in
