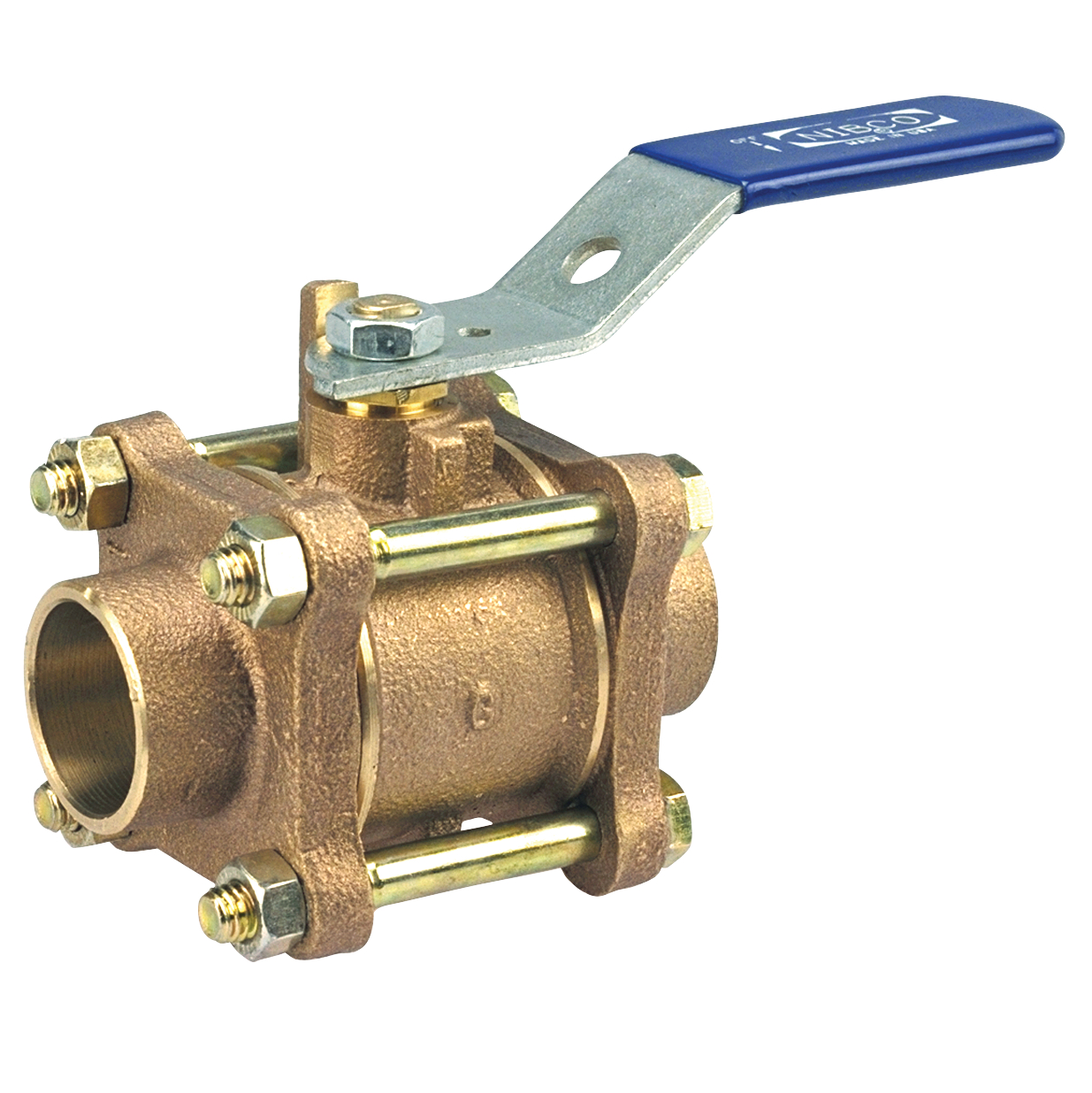

Nibco S-595-Y-66-34 Bronze Ball Valve 3/4 Inch

Product Description

The NIBCO S-595-Y-66-34 is a three-piece bronze ball valve designed for quarter-turn operation, moving from fully open to fully closed in a 90-degree rotation. Solder end connections provide a clean, permanent installation suited to copper piping systems. The lever handle allows fast, positive shutoff and clear visual indication of valve position. This valve is installed by licensed plumbers and pipefitters in commercial, mechanical, and industrial piping systems where reliable flow control is required.

The S-595-Y-66-34 is sized at 3/4 inch and fits into copper solder-end applications across a wide range of commercial and mechanical piping systems. Its three-piece body construction allows in-line maintenance and seat replacement without removing the valve from the line. The bronze body is well suited to water service, hydronic heating and cooling systems, and general plumbing applications where a compact, full-port shutoff valve is specified.

Key Features

• Quarter-turn lever handle for fast open-to-close operation
• Three-piece body allows in-line service and seat access
• Solder end connections sized for 3/4 inch copper pipe
• Bronze body construction for durability in water and hydronic service
• NIB-SEAL insulated handle option available to reduce condensate issues
• Backed by NIBCO 5-year 125 percent limited warranty

Compatibility

Designed as an OEM-style replacement and new-installation ball valve for 3/4 inch copper solder-end piping systems in commercial, mechanical, and industrial applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IPC guidelines. Shut off system water supply and depressurize the line before soldering connections. Use appropriate flux and solder for potable or hydronic service as required. Allow the valve body to cool fully before returning the system to pressure to avoid damage to internal seals.

Technical Specifications

• Body Material: Bronze
• End Connection: Solder
• Valve Size: 3/4 inch
• Operation: Quarter-turn lever handle
• Body Style: Three-piece
• UPC: 039923689368

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: S-595-Y-66-34
