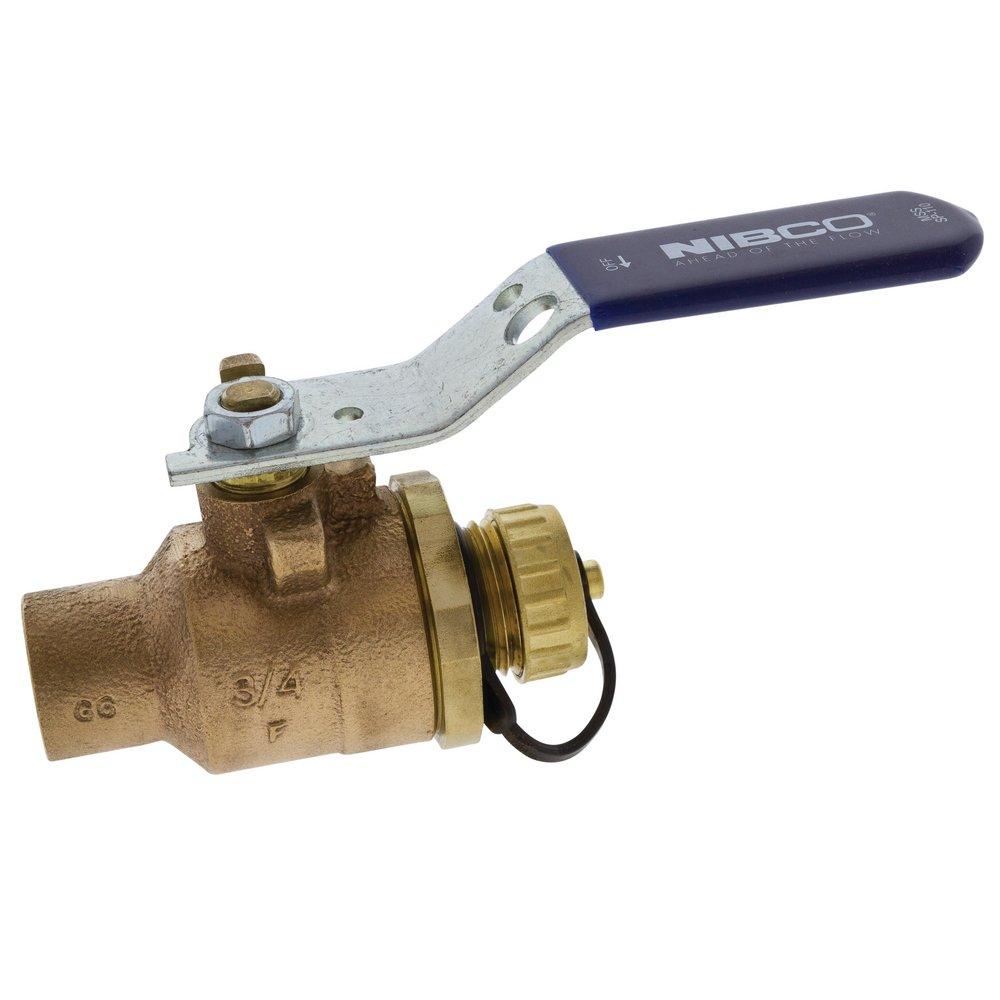

Nibco S-585-70-HC 1/2 x 3/4 in. DZR Bronze Full Port Solder x Hose 600# Ball Valve

Product Description

The NIBCO S-585-70-HC is a valve with a pressure rating of 600 psi. It features a maximum temperature rating of 400°F. The valve has a chrome-plated brass ball and silicon bronze stem, with a blowout-proof stem design. It includes a solder end x 3/4" hose connection with cap and chain and a standard lever handle. Conforms to MSS SP-110.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Maximum temperature rating 400°F
• Chrome plated brass ball, silicon bronze stem

Product Highlights

This bronze ball valve is dezincification resistant and suitable for commercial, plumbing, heating, and HVAC applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: S-585-70-HC-12
• Country of Origin: China

Technical Specifications

• ASTM: ASTM B-16 Alloy C36000, ASTM B-124 Alloy C37700, ASTM B-371 Alloy C69300, ASTM B-584 Alloy C84400, ASTM B-99 Alloy C65100
• Collection: S-585-70-HC
• End Connection 1: Solder
• End Connection 2: Hose
• FM Approved: No
• Handle Material: Zinc Plated Steel
• IAPMO Listed: No
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• MSS: MSS SP-110
• Material: Bronze, Plastic, Rubber, Steel
• Material Type: RPTFE
• Maximum Temperature: 400
• Minimum Temperature: -20
• NSF Certified: No
• Origin: Domestic
• Pressure - High: 600
• Pressure - Maximum: 600 psi
• Pressure Class: 600#
• Recommended Valve Application: Commercial, Plumbing, Heating, HVAC
• Temperature Range: Up to 400 Deg F
• UL Listed: No
• UPC: 039923796332
• Valve Body Material: Bronze
• Valve Body Style: Ball
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 1/2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• WOG Rating: 600 psi
• Valve Operation: Manual
• MPN: S-585-70-HC
• Nibco Material Number: NJ83806
• Diameter: 1/2 in x 3/4 in
• Country of Origin: China
• cUPC Certified: Yes
• Housing Material: Bronze
