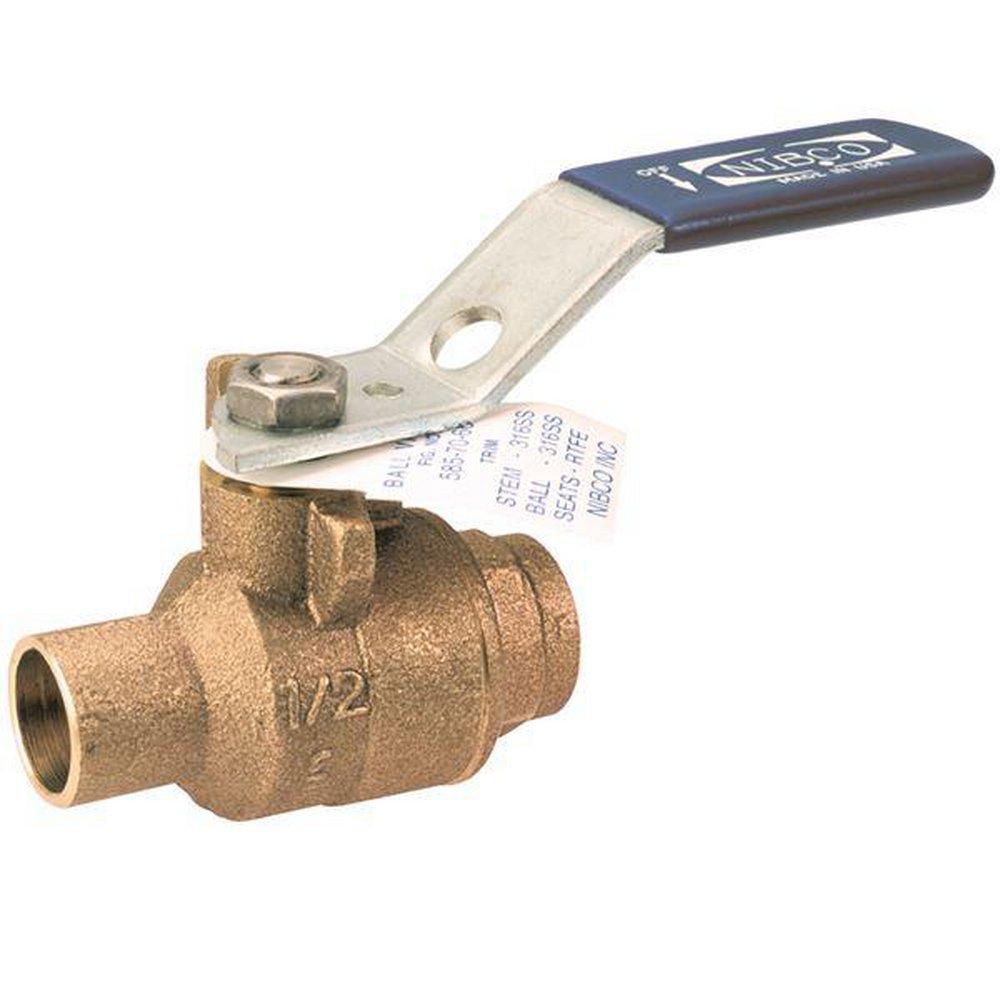

Nibco S-585-70-66-12 S-585-70-66-1/2

Product Description

The NIBCO S-585-70-66-12 is a full port valve ideal for commercial and light industrial process applications including HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas, natural gas and aggressive water application. Features stainless trim and a vented ball.

• Stainless trim
• Vented ball
• 2-piece body

Product Highlights

The valve has stainless steel ball and stem, a blowout-proof stem, and solder end connections. Conforms to MSS SP-110.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: S-585-70-66-12
• Country of Origin: Domestic

Technical Specifications

• MPN: S-585-70-66-1/2
• Brand: NIBCO
• ASTM: ASTM A-276 Type 316, ASTM B-16 Alloy C36000, ASTM B-584 Alloy C84400
• Collection: S-585-70-66
• End Connection 1: Sweat
• End Connection 2: Sweat
• End Connections: Sweat
• FM Approved: No
• Handle Material: Steel
• IAPMO Listed: No
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• MSS: MSS SP-110
• Material: Bronze, Plastic, Stainless Steel, Steel
• Material Type: 316, RPTFE
• NSF Certified: No
• Origin: Domestic
• Pressure - High: 150, 600
• Pressure Class: 600#
• Recommended Valve Application: Air, Gas, Steam, Potable Water, Hot and Cold Water Systems
• UL Listed: No
• Valve Body Material: Bronze
• Valve Body Style: 2 piece
• Valve Disc Material: Stainless Steel
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 1/2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• Actuator Type: Locking Lever Handle
• Ball Material: 316 Stainless Steel
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 5.99 in
• Media: Air/Gas/Water
• Nominal Size: 1-1/2 in
• Orifice Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: S-585-70-66
• Softgoods Material: PTFE
• Temperature Rating: 400 deg F
• Top to Inlet Center: 3.16 in
• Trim Material: 316 Stainless Steel Stem
