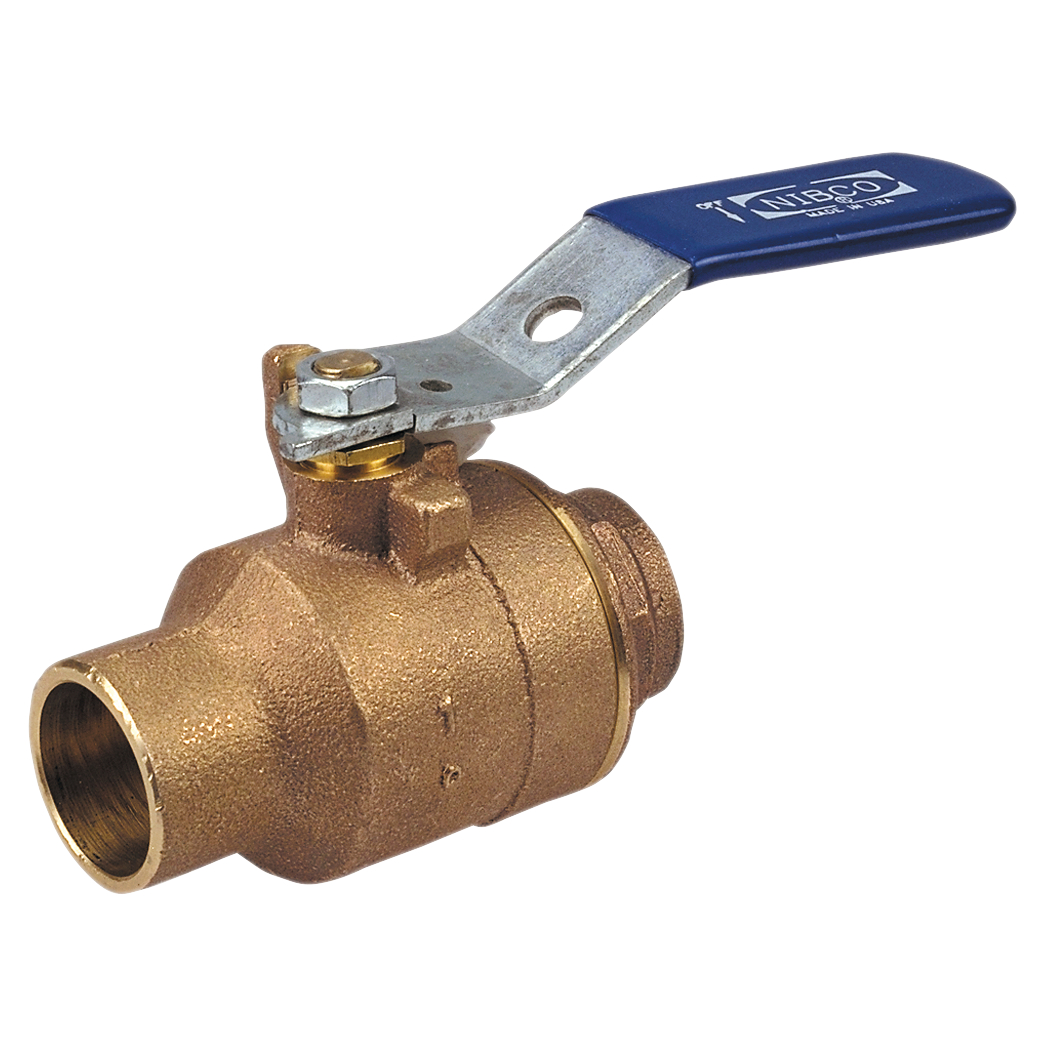

Nibco S-585-70-66-1 Bronze Ball Valve 1 Inch Lever Handle

Product Description

The NIBCO S-585-70-66-1 is a bronze ball valve designed for quarter-turn operation, moving from fully open to fully closed in 90 degrees of handle rotation. It features a lever handle for fast, positive shutoff and is built for commercial and light industrial service. Suitable for HVAC systems, hot and cold domestic water, low-pressure steam, compressed air, LP gas, natural gas, and aggressive water applications. Licensed plumbers and mechanical contractors are the typical installing trade for this type of valve in commercial and industrial piping systems.

This valve is well suited for commercial mechanical rooms, light industrial process lines, and building service piping where a reliable manual shutoff is required. Its bronze body construction makes it appropriate for wet and gas service environments. The lever handle design allows quick visual confirmation of valve position, an important feature in high-traffic mechanical spaces and multi-system installations.

Key Features

• Quarter-turn lever handle provides fast open and close operation
• Bronze body construction suited for water, steam, air, and gas service
• Rated for low-pressure steam, compressed air, LP gas, and natural gas applications
• Handles aggressive water conditions common in commercial mechanical systems
• Backed by a 5-year 125% limited warranty from NIBCO

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for commercial HVAC, plumbing, and light industrial process piping systems requiring a 1-inch manual shutoff valve in bronze.

Installation Notes

Installation should be performed by a licensed plumber or mechanical contractor in accordance with local plumbing codes and the International Plumbing Code (IPC) where applicable. Shut off the water, steam, gas, or compressed air supply and relieve system pressure before installing or removing any ball valve. Consult the NIBCO technical data sheet and valve selection guide for engineering specifications and torque or pressure ratings specific to your application. Do not exceed the rated service conditions for pressure, temperature, or media type.

Technical Specifications

• Body Material: Bronze
• Handle Type: Lever
• Operation: Quarter-turn (90 degrees)
• Valve Size: 1 inch
• Applicable Media: Hot and cold water, low-pressure steam, compressed air, LP gas, natural gas, aggressive water
• Warranty: 5-year 125% limited warranty
• UPC: 039923680969

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: S-585-70-66-1
