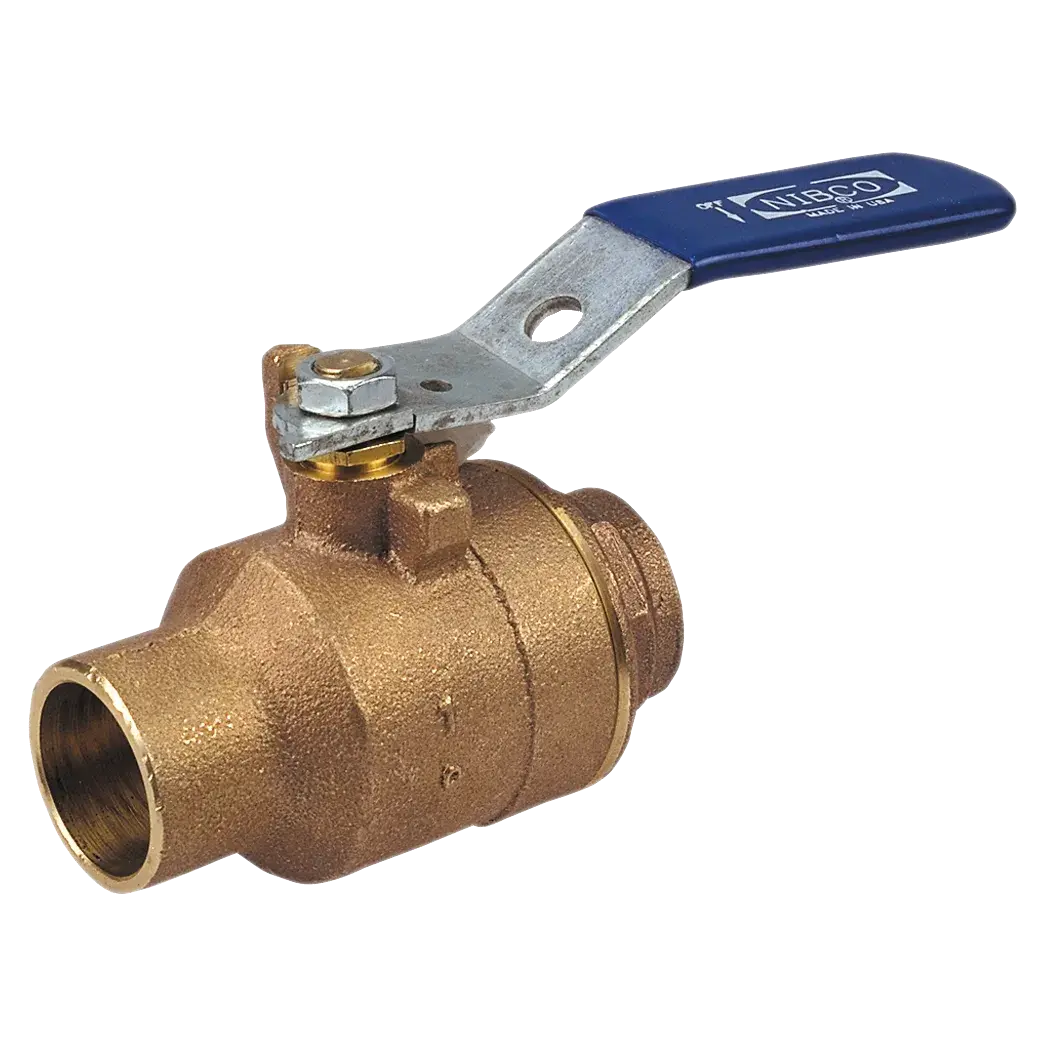

Nibco S-585-70-34 Two-Piece Bronze Ball Valve Full Port

NIBCO
Brand: NIBCO
SKU: S-585-70-34
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$52.69
$52.69
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The NIBCO S-585-70-34 two-piece ball valve features solder ends for quick and efficient installation. The full port bronze ball valve provides bubble-tight shutoff at 600 PSI. It is recommended for many high pressure applications and conforms to MSS SP-110.

  • Solder end connections
  • Full port
  • 600 PSI

Product Highlights

Features solder ends, full port, and is suitable for high-pressure applications.

Product Information

Standard Information

  • Brand: NIBCO
  • Manufacturer Part Number: S-585-70-34

Technical Specifications

  • Valve pressure rating: 600 psi 41.4 bar non-shock cold working pressure
  • Maximum temperature rating: 400 F
  • Ball: Chrome plated brass ball
  • Stem: silicon bronze stem
  • Stem Design: Blowout-proof stem
  • Handle: Standard lever handle, optional NIB-SEAL
  • End Connections: Solder end connections
  • Resistant: Dezincification resistant
  • Conforms to: MSS SP-110
