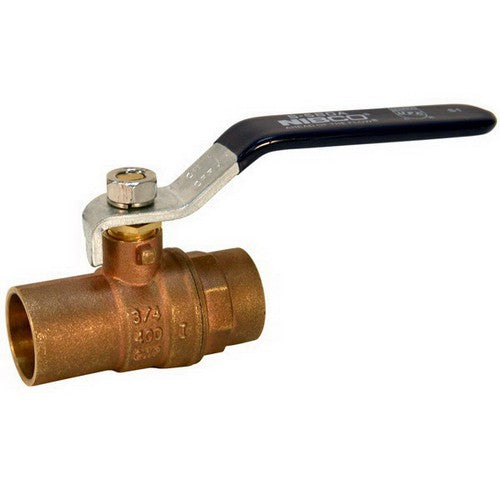

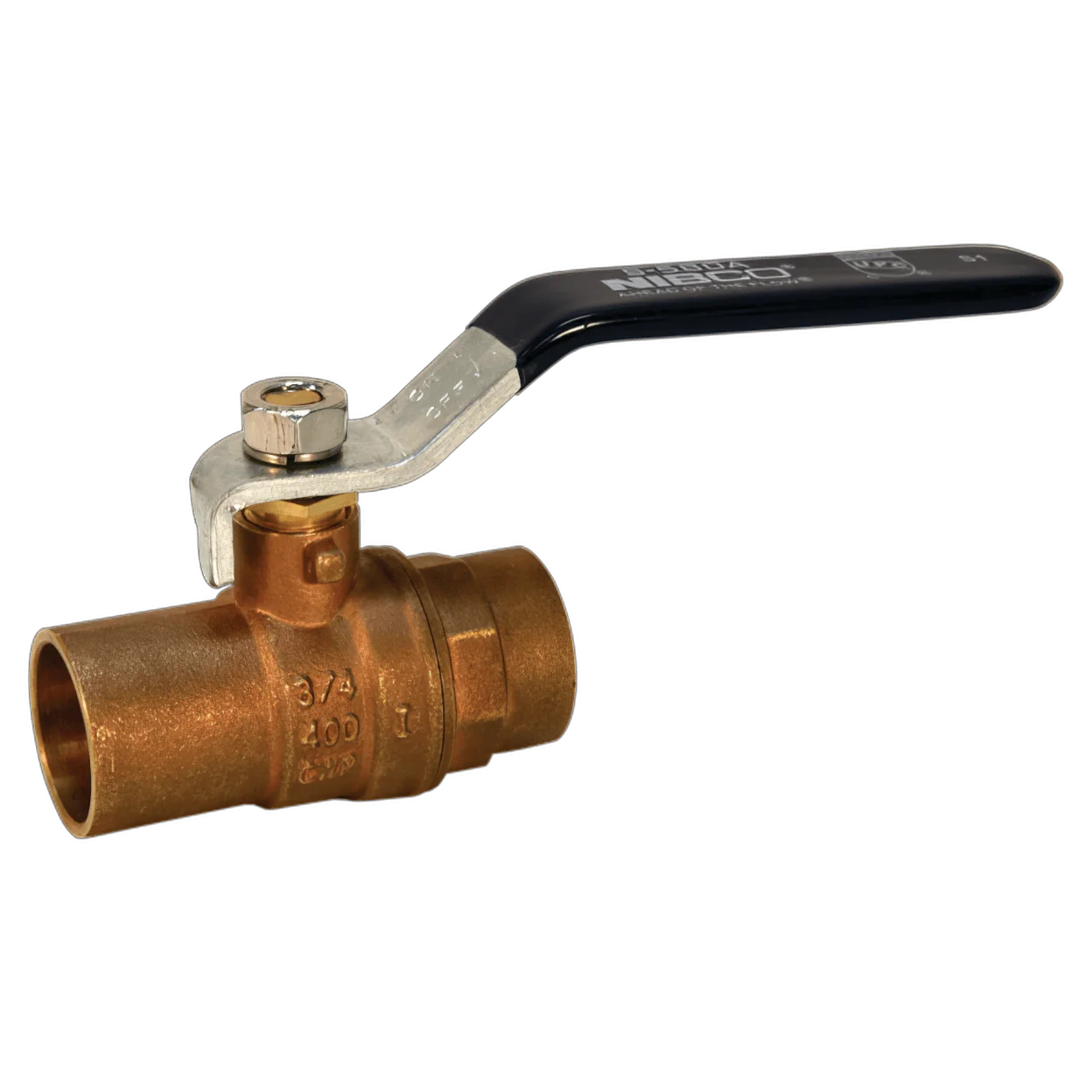

Nibco S-580 1 Standard Port Forged Brass Ball Valve, 1 inch, Solder x Solder

Product Description

The Nibco S-580 1 is a standard port forged brass ball valve designed for reliable performance in plumbing applications. With a nominal size of one inch and solder x solder connections, this valve provides effective shutoff capabilities. It can withstand a maximum pressure of four hundred psi for continuous service. The valve features a 0.75 inch opening and is constructed from forged brass with a body composition exceeding fifty-seven percent copper. This makes it suitable for numerous hot and cold water applications.

• Constructed with a PTFE seat for enhanced durability.
• Blowout-proof stem increases reliability.
• Meets NSF/ANSI 61-8 standards.

Product Highlights

This ball valve is ideal for use in residential and commercial plumbing systems, offering a reliable solution for shutoff needs.

Product Information

Standard Information

• Brand: Nibco
• MPN: S-580 1

Technical Specifications

• Series: S-580
• Type: Standard Port
• Nominal Size: one inch
• Connection Type: Solder x Solder
• Opening Size: 0.75 inch
• Body Material: Forged Brass 1 CU > 57%
• Seat Material: PTFE
• Ball Material: Chrome Plated Brass
• Stem Material: Brass
• Packing Material: PTFE
• Construction: 2-Piece
• Actuation/Operator: Carbon Steel Standard Lever Handle
• Dimensions: A: 3.04 inch; B: 2.06 inch; C: 3.94 inch
