Product Description

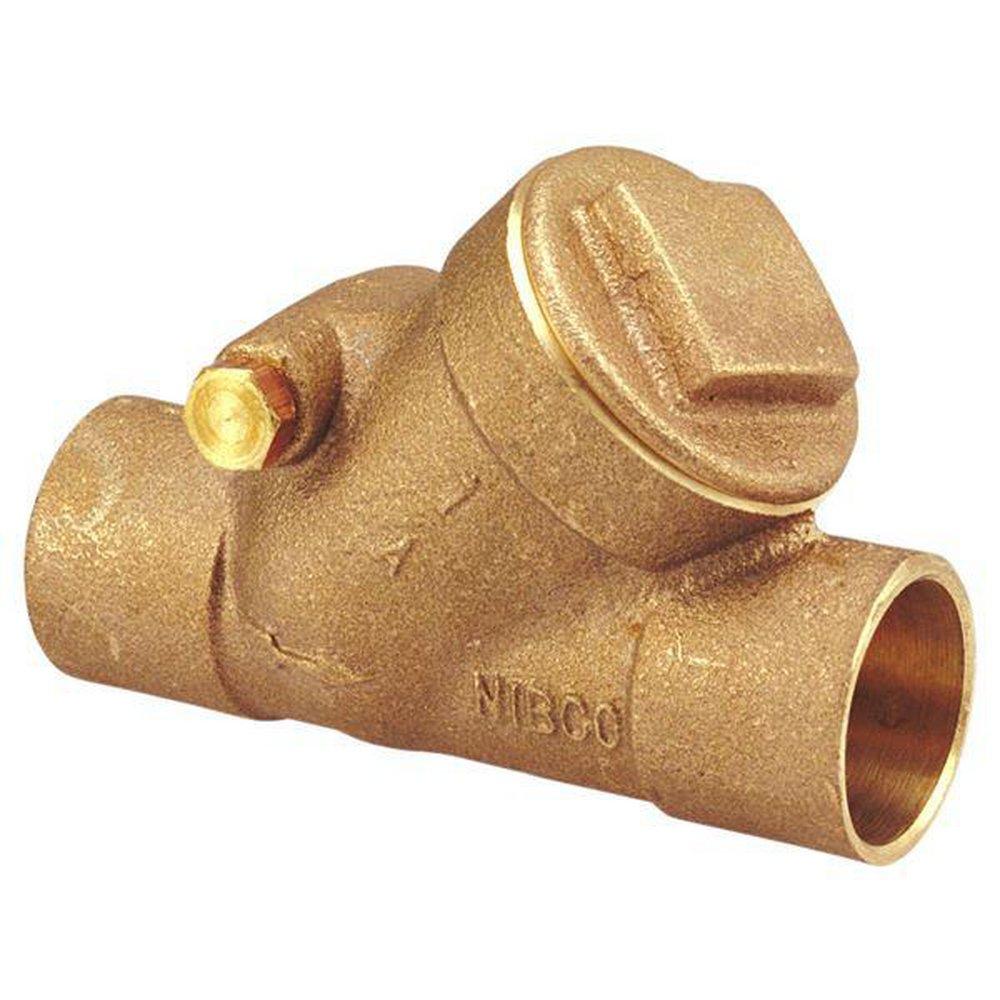

The Nibco S-413-Y 1-1/2 in. Bronze Solder Check Valve conforms to MIL-V-18436F and MSS SP-125. It features a renewable seat and disc, and is spring actuated with a 1/2 psi cracking pressure. The valve has a pressure rating of 400 psi non-shock cold working pressure and a maximum temperature of 200° F.
- Conforms to MIL-V-18436F
- Renewable seat and disc
- Spring actuated (1/2 psi cracking pressure)
Product Highlights
This lead-free swing check valve is suitable for gas, oil, steam and water applications.
Product Information
Standard Information
-
Brand: NIBCO
-
Manufacturer Part Number: S-413Y 1 1
-
Country of Origin: Domestic
Technical Specifications
-
ASTM: ASTM B-103, ASTM B-140, ASTM B-140 C31400, ASTM B-16, ASTM B-62 C83600, ASTM B-98 C65500
-
Collection: S-413-Y
-
End Connection 1: Sweat
-
End Connection 2: Sweat
-
End Connections: Sweat
-
Installation Type: Horizontal Mount, Vertical Mount
-
Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
-
Length: 4-1/2
-
MSS: MSS SP-80
-
Material: Bronze, Plastic
-
Material Type: PTFE
-
Maximum Temperature: 200
-
NSF Certified: No
-
Origin: Domestic
-
Pressure - High: 125, 200
-
Pressure Class: 125#, 200#
-
Recommended Valve Application: Gas, Oil, Steam, Water
-
UL Listed: No
-
Valve Body Material: Bronze
-
Valve Body Style: Horizontal Swing
-
Valve Disc Material: PTFE
-
Valve Seat Material: PTFE
-
Valve Size: 1-1/2 in
-
Valve Type: Swing Check Valve
-
Weight: 3
