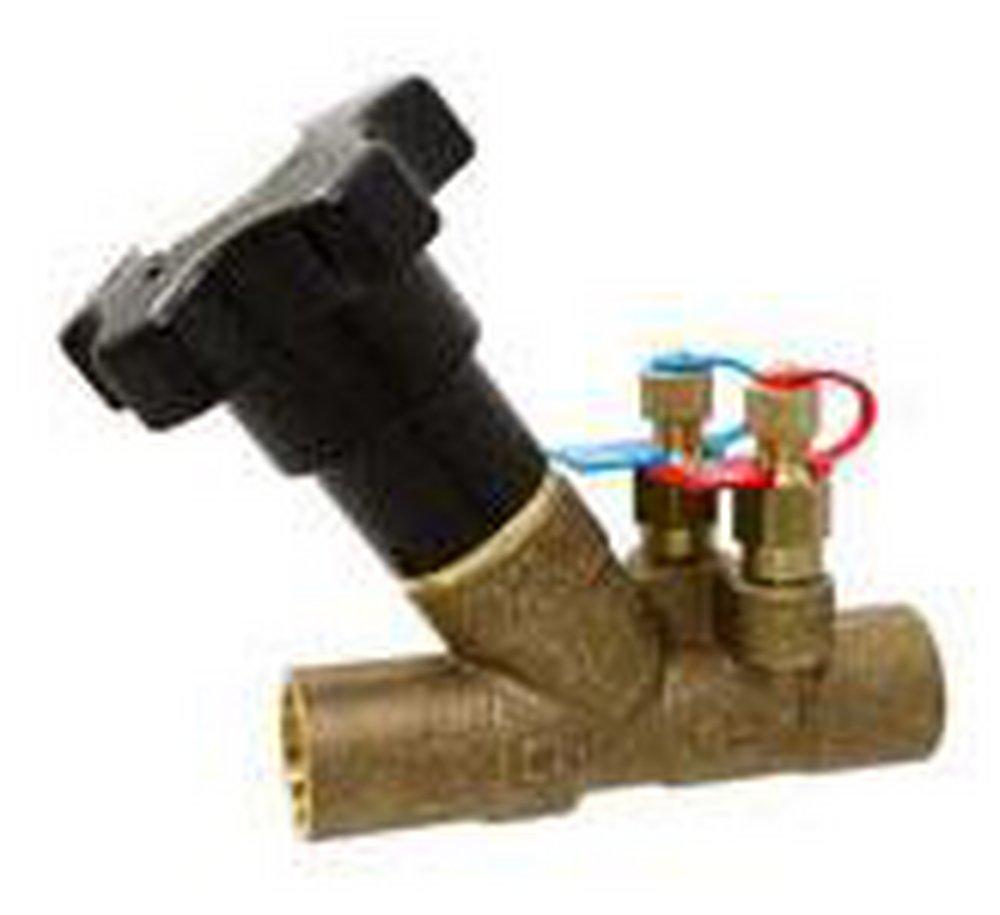

Nibco S-1810-LF-12 Balancing Valve 1/2 in. Solder End

Product Description

The NIBCO S-1810-LF-12 is a 1/2 inch balancing valve with solder ends. It is constructed of brass and is dezincification resistant. This valve is suitable for use in balancing systems. Solder ends are per ASME B16.22 and conforms to ANSI B16.22 and ASTM B-124.

• 300 psi non-shock cold working pressure
• EPDM O-ring
• Disc Seat - PTFE

Product Highlights

The NIBCO balancing valve features a wheel handle and is lead-free, complying with lead law standards and certified by NSF.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: S-1810-LF-12

Technical Specifications

• ANSI: ANSI B16.22
• ASTM: ASTM B-124
• End Connection 1: Solder
• End Connection 2: Solder
• End Connections: Solder
• Flow Rate: 5 gpm
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Brass
• Maximum Temperature: 260
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Pressure - Maximum: 150 psi
• Valve Body Material: Brass
• Valve Disc Material: Brass
• Valve Operator: Wheel Handle
• Valve Size: 1/2 in
• Valve Type: Balancing Valve
