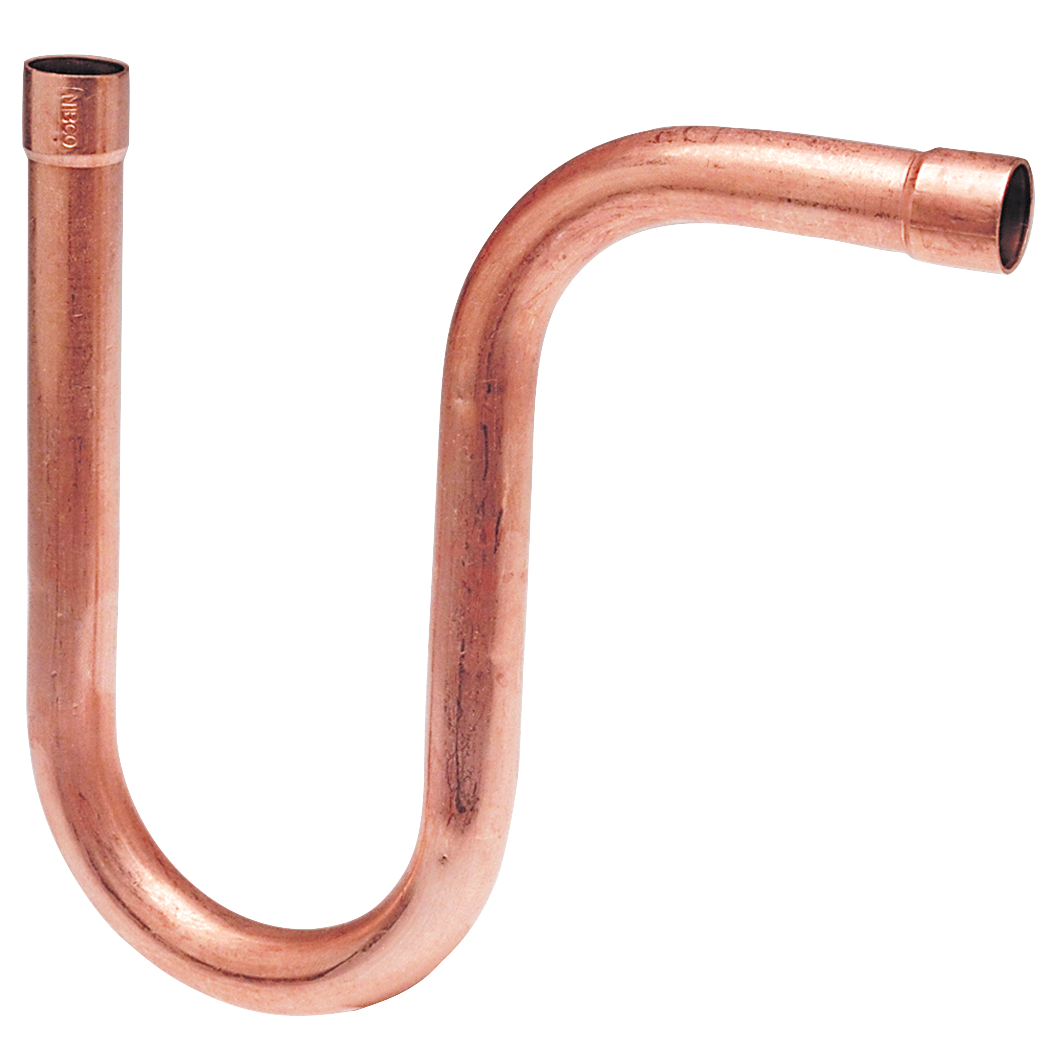

Nibco PTRAP-58 Copper P-trap 5/8 Inch Cxc Suction Line

Product Description

The NIBCO PTRAP-58 is a wrot copper P-trap with solder cup (CxC) ends, sized at 5/8 inch, designed for use on refrigeration and HVAC suction lines. It is manufactured in an ISO 9001 certified facility and carries a 50-year limited warranty. The primary function of this fitting is to loop the suction line down to the floor before it runs vertically upward. This loop prevents compressor oil from draining back into the compressor during shutdown. The wrot copper construction provides consistent wall thickness and reliable joint strength when soldered.

This P-trap is used on the suction line of refrigeration compressors in both commercial and residential refrigeration systems. It is installed at the base of vertical riser sections to prevent oil migration back to the compressor during off cycles. An additional P-trap is required for every 20 feet of riser pipe to prevent high-velocity oil or liquid buildup as the system returns to operation after shutdown. Licensed refrigeration technicians and HVAC mechanics typically handle this installation as part of suction line riser configuration.

Key Features

• Solder cup (CxC) ends for a standard brazed or soldered connection
• Wrot copper construction for consistent wall integrity and long service life
• Prevents compressor oil drainage during shutdown on suction line risers
• Sized for use every 20 feet of riser pipe per standard refrigeration piping practice
• Manufactured in an ISO 9001 certified facility
• Backed by a 50-year limited warranty

Compatibility

Designed as an OEM-style copper suction line fitting for 5/8 inch CxC refrigeration and HVAC suction line riser applications.

Installation Notes

Installation should be performed by a licensed HVAC technician or refrigeration mechanic following applicable mechanical codes. Recover all refrigerant and relieve system pressure before cutting into the suction line. Ensure the pipe ends are clean, deburred, and properly fluxed before soldering or brazing the joint. Refer to NIBCO technical data sheets and catalogs for engineering and installation guidance specific to this fitting.

Technical Specifications

• Connection Type: CxC Solder Cup
• Tube Size: 5/8 inches
• Material: Wrot Copper
• Application: Suction Line P-Trap for Refrigeration Compressor Risers
• Certification: ISO 9001 Certified Facility
• Warranty: 50-Year Limited
• UPC: 039923320322

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PTRAP-58
