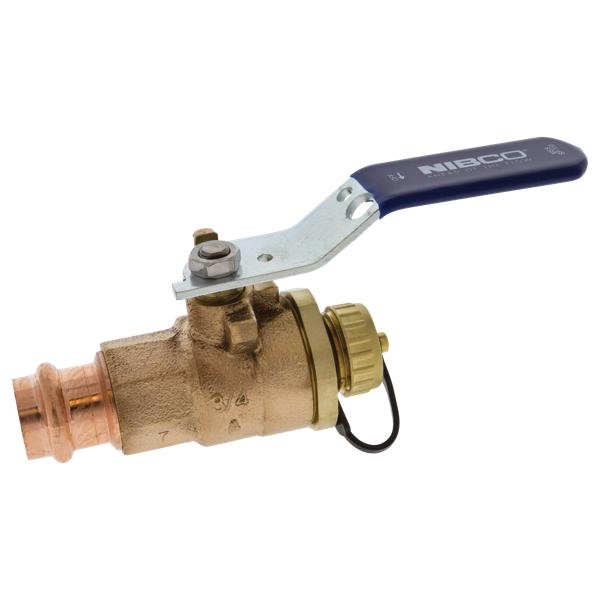

Nibco Press System PC-585-70-66-HC Ball Valve - Bronze, Stainless Steel Trim, Hose Connection

Product Description

The NIBCO PRESS SYSTEM PC-585-70-66-HC bronze ball valve is designed for commercial and light industrial applications needing garden hose connections for drainage. It features press-to-connect end connections with an inboard bead and EPDM O-rings for quick joinery. Applying pressure from a press-fit tool tightens the O-ring, ensuring a clean, permanent, watertight seal. This valve features a design that allows a leak to occur during testing if the press connection is not properly crimped.

• Press-to-connect end connections
• Inboard bead and EPDM O-rings
• Quick and easy joinery

Product Highlights

Features press female x hose end connections, a two-piece body, and a full port. Conforms to MSS SP-110.

Product Information

Standard Information

• Brand: NIBCO PRESS SYSTEM
• Manufacturer Part Number: PC-585-70-66-HC

Technical Specifications

• Valve pressure rating: 250 psi/17.2 bar non-shock cold working pressure
• Maximum service temperature: 250°F
• Body: Two-piece body
• Port: Full port
• Trim: Stainless steel trim
• Stem: Blowout-proof stem
• Ball: Vented ball
• Seat rings: Reinforced PTFE seat rings
• Connections: Press female x hose end connections
• Feature: Press leak-detection feature
• Standard: Conforms to MSS SP-110
• Brand: Nibco
• MPN: PC5857066
• Material: Bronze
• End Type: Press Female x Hose
• Disc/Seat/Ball: PTFE
• Other: Stainless Steel Trim, Cap and Chain
