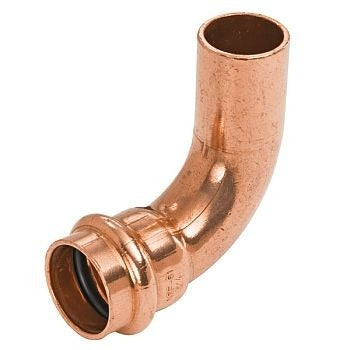

Nibco PRES90STLFTGC34 Copper 90 Degree Elbow 3/4 in

Product Description

The NIBCO PRES90STLFTGC34 is a copper 90-degree elbow fitting configured in a FTG x Press end connection pattern at 3/4 inches. It is designed to change flow direction in copper piping systems, allowing a clean 90-degree turn within a pressurized line. The press-style end accepts standard press-fit tooling, while the FTG end swages directly into a standard copper fitting socket. Licensed plumbers install this fitting in potable water distribution, hydronic heating, and similar copper piping applications where a reliable, solder-free or soldered directional change is required.

This elbow is suited for residential and light commercial plumbing installations where 3/4-inch copper piping is run for domestic hot and cold water supply or hydronic circuits. The FTG x Press configuration makes it practical for transitioning between press-fit and socket-soldered portions of a system, or for tight-space installations where a torch-free press connection on one end reduces working time and risk near finished surfaces.

Key Features

• 90-degree elbow geometry for in-line directional changes in copper pipe runs
• FTG (fitting-to-fitting) end slides into a standard copper fitting socket for solder joints
• Press end is compatible with standard press-fit jaw tooling for torch-free connections
• 3/4-inch size fits standard Type K, L, and M copper tubing of the same nominal diameter
• Copper construction provides corrosion resistance suitable for potable water and hydronic systems

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 3/4-inch copper piping systems using FTG x Press end configurations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable plumbing code, such as the IPC or local amendments. Shut off the water supply and depressurize and drain the affected piping before cutting or fitting. The press end requires a compatible press-fit tool with the correct jaw profile for copper press fittings. Inspect the pipe end for roundness and clean cuts before pressing to ensure a leak-free connection.

Technical Specifications

• Material: Copper
• Size: 3/4 inches
• End Connection: FTG x Press
• Fitting Angle: 90 Degrees

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PRES90STLFTGC34
