Nibco PCH611112 1-1/2 Inch Copper Press Tee Fitting

Product Description

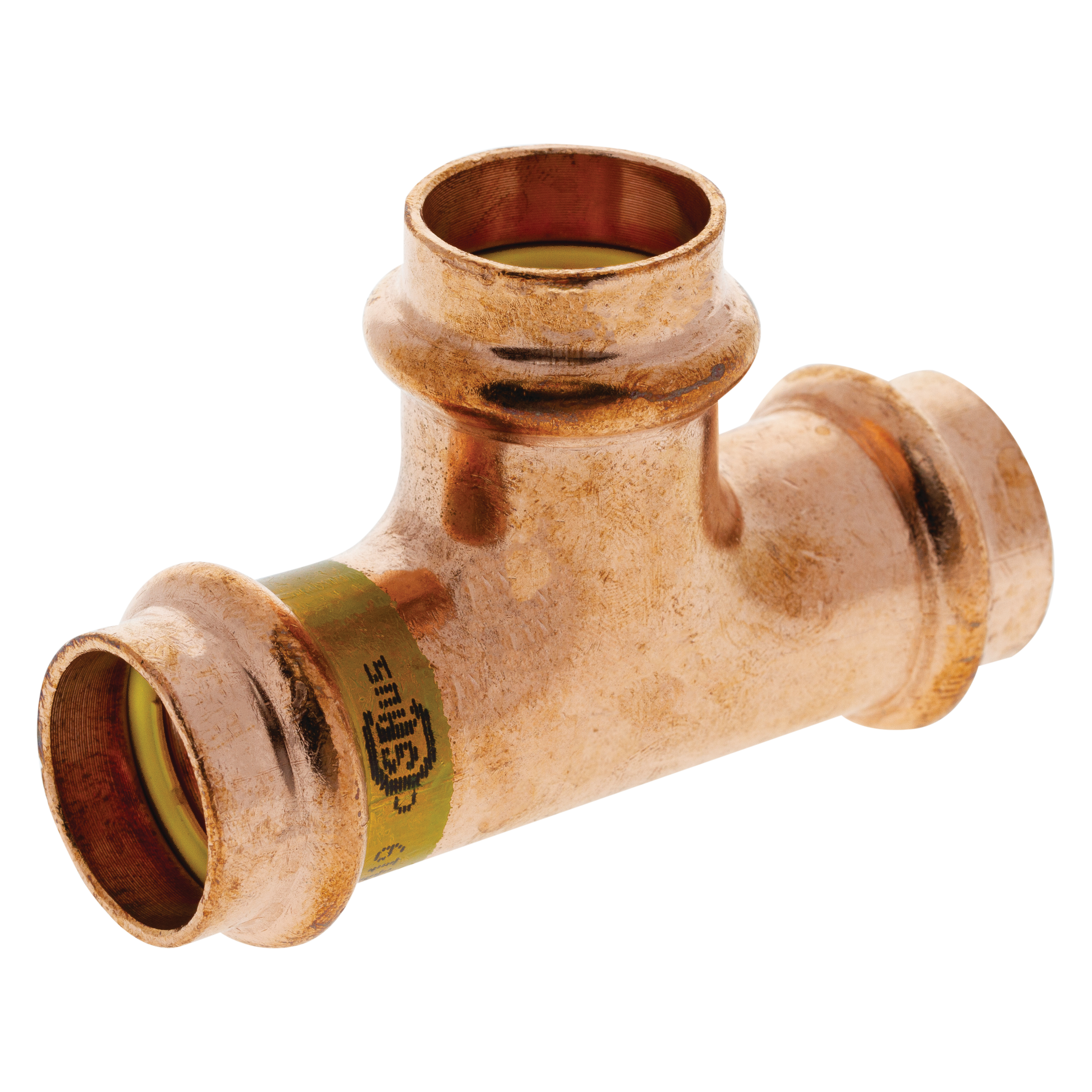

The NIBCO PCH611112 is a 1-1/2 inch copper press tee fitting designed for use in gas and compressed air piping systems. It uses a press-style connection method to join seamless copper water tube without open flame, making installation faster than traditional solder fittings. A unique witness mark becomes visible after the connection is properly crimped, confirming a complete and secure joint. Licensed plumbers and pipefitters install this fitting in both residential and commercial applications. The fitting can also be installed in underground piping configurations where applicable installation standards are met.

This fitting is suited for residential and commercial systems carrying gas or compressed air through copper tubing. The press connection eliminates the need for soldering or brazing, reducing labor time and minimizing fire risk on the job site. It is appropriate for new construction and retrofit work where copper tubing systems are being assembled or extended. Underground installation is permitted, giving installers flexibility in routing piping through slabs or buried runs.

Key Features

• Press-style connection joins copper tubing without soldering or open flame
• Visible witness mark confirms full crimp engagement after pressing
• Suitable for gas and compressed air service in residential and commercial systems
• Approved for underground installation
• 25-year limited warranty coverage
• Precision-engineered copper and copper alloy construction

Compatibility

Designed for use with seamless copper water tube in residential and commercial gas and compressed air piping systems. Requires a compatible press tool with appropriate jaws or chains for the 1-1/2 inch press connection size. Refer to NIBCO technical data sheets for full tool and system compatibility information.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local mechanical and plumbing codes. Shut off and depressurize the system completely before making or removing any connections. Use only compatible pressing tools and jaw sets rated for the fitting size and connection type. Consult NIBCO technical data sheets and local authority having jurisdiction requirements before installing in gas service applications.

Technical Specifications

• Connection Size: 1-1/2 inches
• Connection Type: Press
• Fitting Configuration: Tee
• Material: Copper alloy
• Application: Gas, compressed air, underground
• Warranty: 25-year limited
• UPC: 039923412430

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PCH611112
