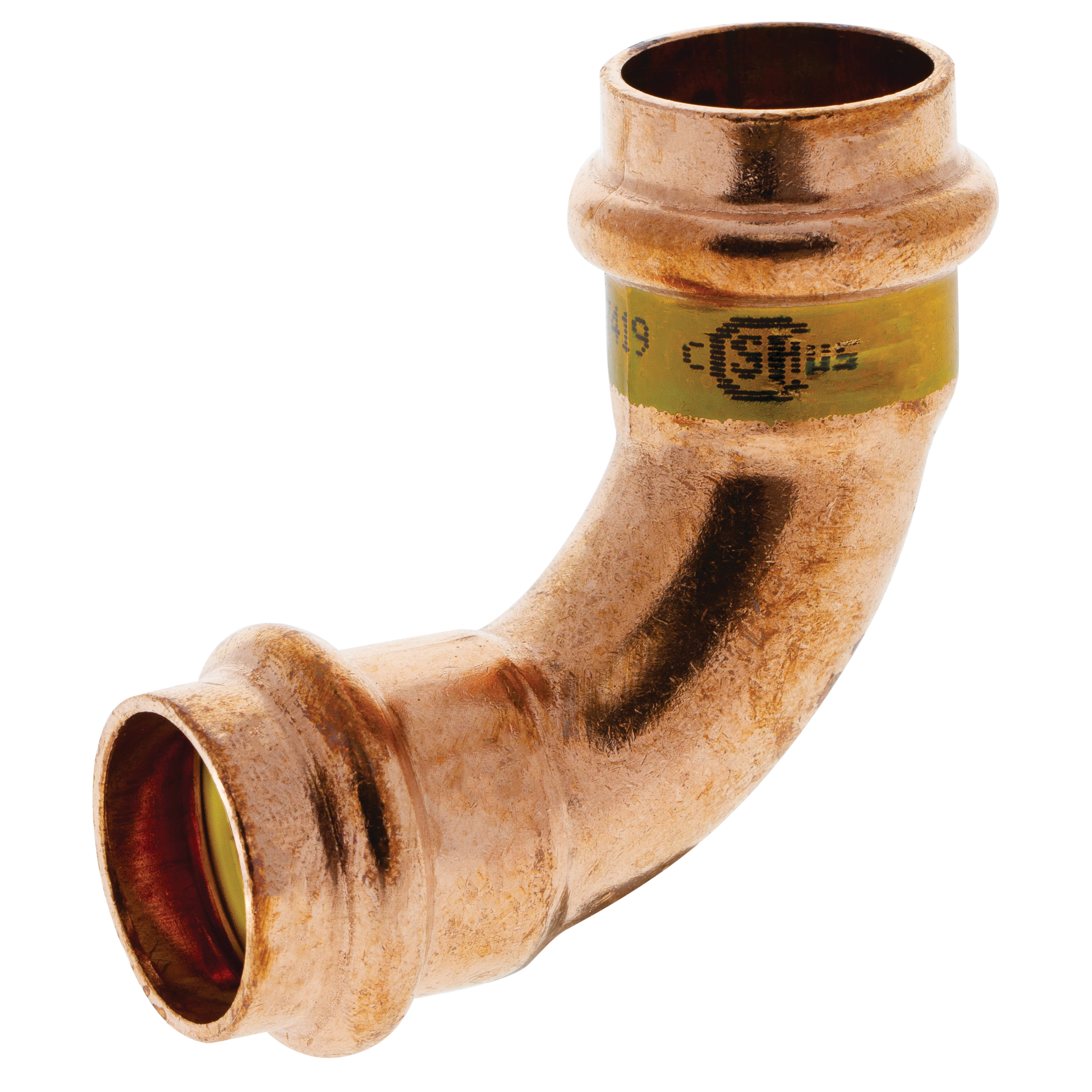

Nibco PCH60734 3/4 Inch Press X Press 90 Degree Elbow

Product Description

The NIBCO PCH60734 is a 3/4 inch press x press 90 degree elbow fitting designed for joining copper tubing without soldering, threading, or open flame. It uses a press-to-connect crimping method that creates a secure, leak-tested joint in seconds. The fitting is manufactured from copper alloy and is rated for residential and commercial applications including potable water, gas distribution, and compressed air systems. A licensed plumber or pipefitter installs this fitting using a compatible pressing tool and jaw set. When correctly crimped, a unique N witness mark confirms full engagement of the fitting.

This elbow is suited for 3/4 inch copper tube in residential and commercial plumbing, hydronic heating, gas piping, and compressed air distribution. It can also be installed in underground applications where burial of copper press fittings is permitted by local code. Its flame-free installation makes it well-suited for retrofit work in occupied buildings or confined spaces where torch use is restricted.

Key Features

• Press x press connection eliminates soldering and open flame at the joint
• N witness mark confirms full crimp engagement during inspection
• Rated for gas and compressed air in addition to water service
• Approved for underground installation
• Backed by a 25-year limited warranty from NIBCO
• Compatible with a full range of NIBCO pressing tools, jaws, and chains

Compatibility

Designed for use with seamless copper water tube in 3/4 inch diameter. Suitable for residential and commercial gas, compressed air, and water systems. Refer to NIBCO technical data sheets for full system compatibility and approved pressing tool pairings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing and mechanical codes. Shut off and depressurize the system and purge any residual gas or fluid before beginning work. Use only a pressing tool and jaw set rated for this fitting series to achieve a proper crimp. Verify the N witness mark is fully visible on all joints before restoring system pressure.

Technical Specifications

• Connection Type: Press x Press
• Fitting Angle: 90 degrees
• Size: 3/4 inches
• Application: Water, Gas, Compressed Air
• Installation Environment: Residential, Commercial, Underground
• Warranty: 25-year limited
• UPC: 039923412072

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PCH60734
