Nibco PCH60712 Press Copper 90 Elbow 1/2 in Press X Press

Product Description

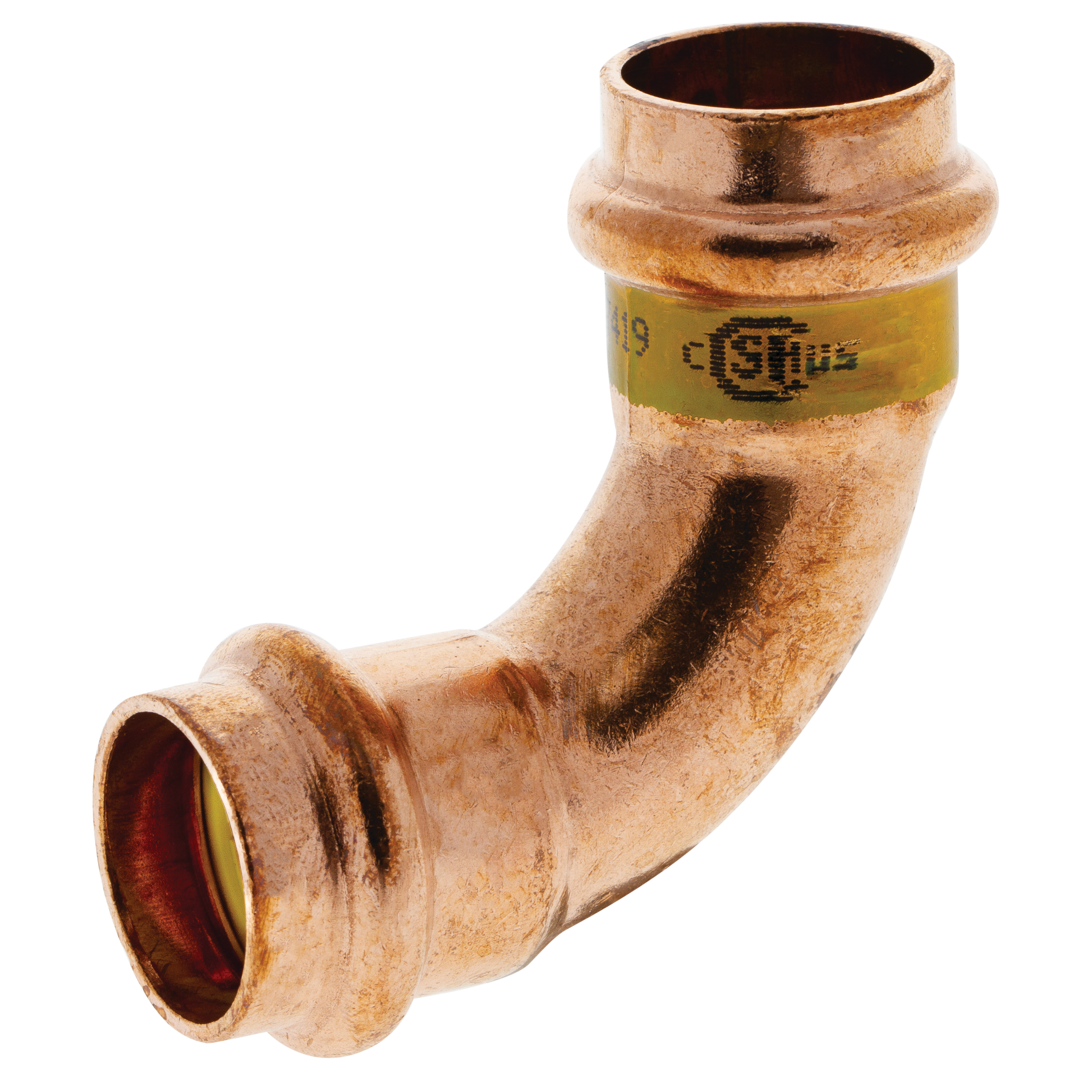

The NIBCO PCH60712 is a 1/2 inch press-by-press 90-degree elbow fitting manufactured from copper and copper alloy. It is designed to join seamless copper water tube in gas distribution and compressed air piping systems using a press-connection method that eliminates open flame. When properly crimped, a unique N witness mark becomes visible on the fitting, confirming a complete and secure joint. Licensed plumbers and pipefitters install this fitting in both residential and commercial applications. The press-style connection method is significantly faster than traditional soldering and is approved for underground installation.

This fitting is suited for residential and commercial gas piping systems as well as compressed air distribution lines. The press-connect design works with standard copper tubing using compatible pressing tools, jaws, and chains. It can be installed in exposed, concealed, and underground configurations, making it a versatile choice for new construction and retrofit work. NIBCO PressG fittings are backed by a 25-year limited warranty.

Key Features

• Press-by-press connection eliminates the need for open flame or soldering
• N witness mark confirms complete crimp during installation
• Approved for underground installation
• Compatible with seamless copper tube in gas and compressed air systems
• 25-year limited warranty coverage
• Precision-engineered copper and copper alloy construction

Compatibility

Designed for use with seamless copper water tube in residential and commercial gas and compressed air systems. Requires compatible NIBCO PressG pressing tools, jaws, and chains for proper installation.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the IFGC or IPC as required by jurisdiction. Shut off and depressurize the gas or air supply line before beginning work. Use only compatible pressing tools and jaws verified for the NIBCO PressG system to ensure the N witness mark is achieved. Refer to NIBCO technical data sheets and installation catalogs for complete engineering and procedure guidance.

Technical Specifications

• Connection Size: 1/2 inches
• Connection Type: Press x Press
• Fitting Angle: 90 degrees
• Material: Copper and copper alloy
• Application: Gas, compressed air, seamless copper tube systems
• Installation: Above ground, concealed, underground
• Warranty: 25-year limited
• UPC: 039923412065

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PCH60712
