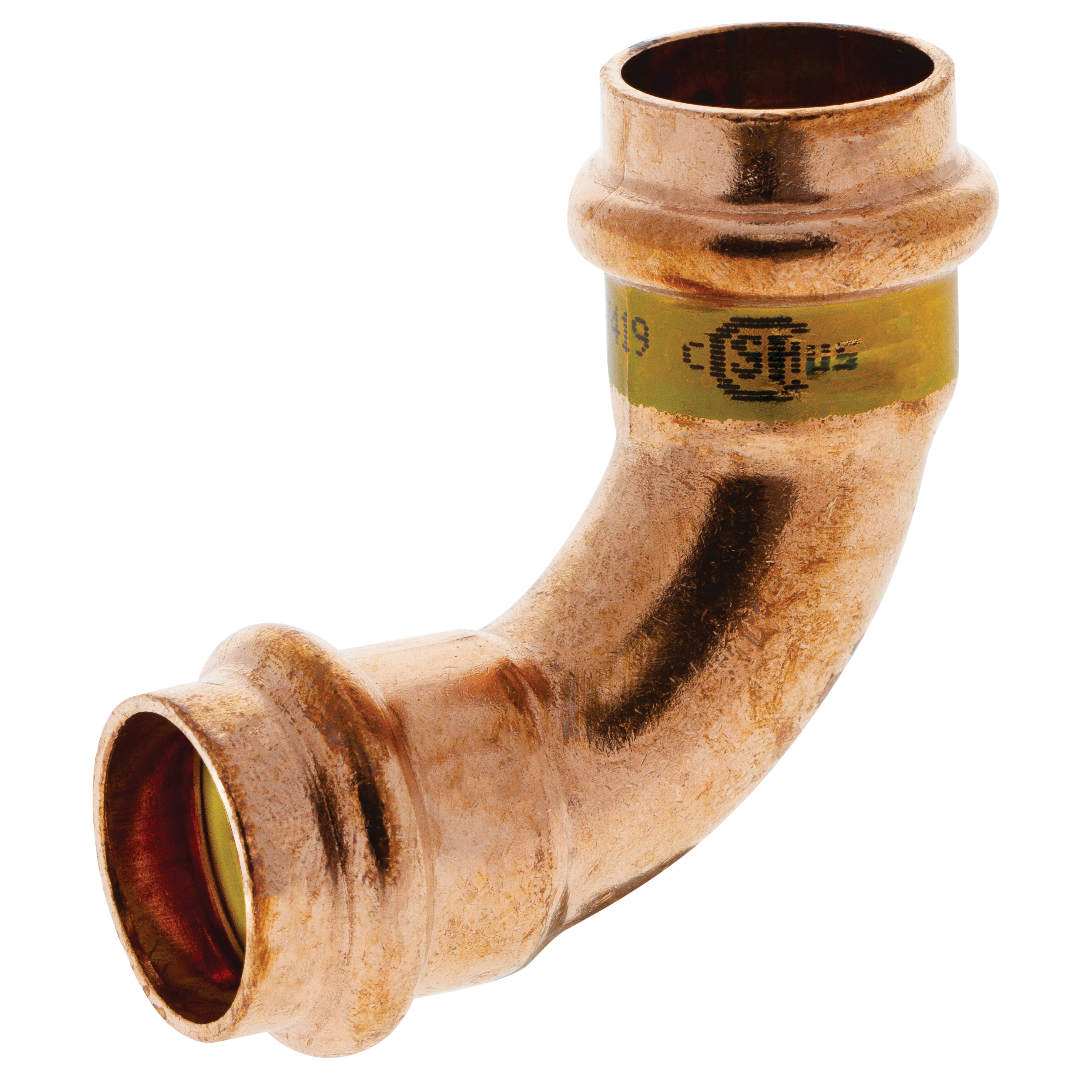

Nibco PCH607112 Press X Press 90 Elbow 1-1/2 Inch

Product Description

The NIBCO PCH607112 is a 1-1/2 inch press x press 90-degree elbow fitting manufactured from copper for use in residential and commercial piping systems. This fitting uses NIBCO PressG press-connect technology to create a secure, leak-tight joint without open flame or soldering. It is suited for copper water tube systems carrying gas or compressed air. Licensed plumbing and mechanical contractors install this fitting using compatible pressing tools with approved jaws and chains. A unique N witness mark becomes visible on the fitting once the joint has been properly crimped, providing a quick visual confirmation of a completed connection.

This elbow is designed for residential and commercial applications including gas distribution and compressed air piping. The press-connect design eliminates the need for torch work, making it well suited for installations in occupied buildings or confined spaces where flame is restricted. The fitting can also be installed underground where local code permits. It integrates into seamless copper water tube systems and is appropriate for new construction and retrofit work across plumbing and mechanical trades.

Key Features

• Press x press end connections eliminate torch and solder requirements
• 1-1/2 inch size for standard copper tube systems
• 90-degree elbow geometry for directional changes in tight spaces
• N witness mark confirms full crimp engagement at each connection
• Rated for gas and compressed air service in residential and commercial systems
• Suitable for underground installation where permitted
• Backed by a 25-year limited warranty

Compatibility

Designed for use with seamless copper water tube in residential and commercial gas and compressed air systems. Requires compatible NIBCO PressG pressing tools, jaws, and chains for proper installation.

Installation Notes

Installation must be performed by a licensed plumber or mechanical contractor in accordance with applicable local codes and NIBCO technical data sheets. Shut off and depressurize the system before installing or servicing any press fittings. Use only approved pressing tools and jaw sets rated for PressG copper fittings. Refer to NIBCO engineering and installation documentation for full procedure and pressure ratings before beginning work.

Technical Specifications

• Connection Type: Press x Press
• Fitting Angle: 90 Degrees
• Pipe Size: 1-1/2 inches
• Material: Copper
• Application: Gas, Compressed Air, Water Tube Systems
• Installation Environment: Residential, Commercial, Underground
• Warranty: 25-Year Limited
• UPC: 039923412102

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PCH607112
