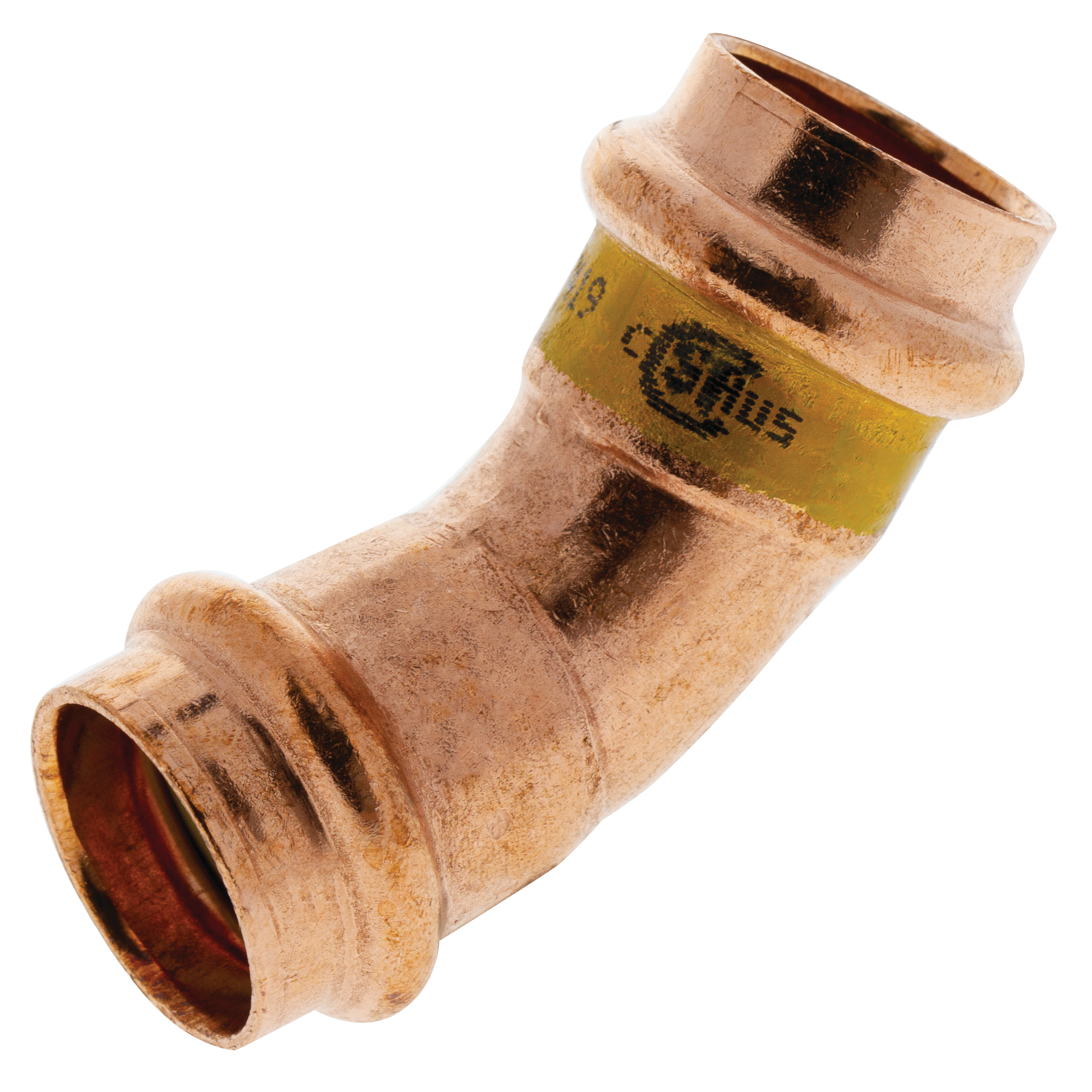

Nibco PCH60634 Press X Press 45 Degree Elbow 3/4 Inch

Product Description

The NIBCO PCH60634 is a 3/4 inch press x press 45 degree elbow fitting manufactured from copper and copper alloy for use in press-fit piping systems. It connects copper tubing without soldering, brazing, or open flame by using a pressing tool to create a secure, leak-tested joint. A unique N witness mark becomes visible on the fitting after the crimp is properly completed, providing a visual confirmation of a successful connection. The PCH60634 is installed by licensed plumbers and pipefitters working on residential and commercial systems.

This fitting is designed for use in residential and commercial copper tubing systems carrying gas or compressed air. It is also rated for installation in underground applications. The press connection method eliminates the need for flame-based joining, making it suitable for occupied buildings and retrofit work where open flame is restricted or impractical. It works within a broader system of NIBCO PressG copper fittings, valves, accessories, pressing tools, jaws, and chains.

Key Features

• Press x press end connections eliminate soldering and open flame during installation
• N witness mark confirms proper crimp completion at a glance
• Rated for residential and commercial gas and compressed air systems
• Approved for underground installation
• Copper and copper alloy construction offers durability and low maintenance
• Backed by a 25-year limited warranty from NIBCO

Compatibility

Designed for use with seamless copper water tube in residential and commercial gas and compressed air piping systems. Compatible with the NIBCO PressG system of pressing tools, jaws, and chains.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the NIBCO technical data sheets and installation catalogs. Shut off and depressurize the gas or compressed air line before beginning any fitting work. Use only compatible NIBCO PressG pressing tools, jaws, and chains to achieve a proper crimp. Verify the N witness mark is visible on each fitting after pressing before restoring system pressure.

Technical Specifications

• Connection Type: Press x Press
• Angle: 45 degrees
• Size: 3/4 inches
• Material: Copper and Copper Alloy
• Application: Gas, Compressed Air, Underground
• Warranty: 25-Year Limited
• UPC: 039923412195

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PCH60634
