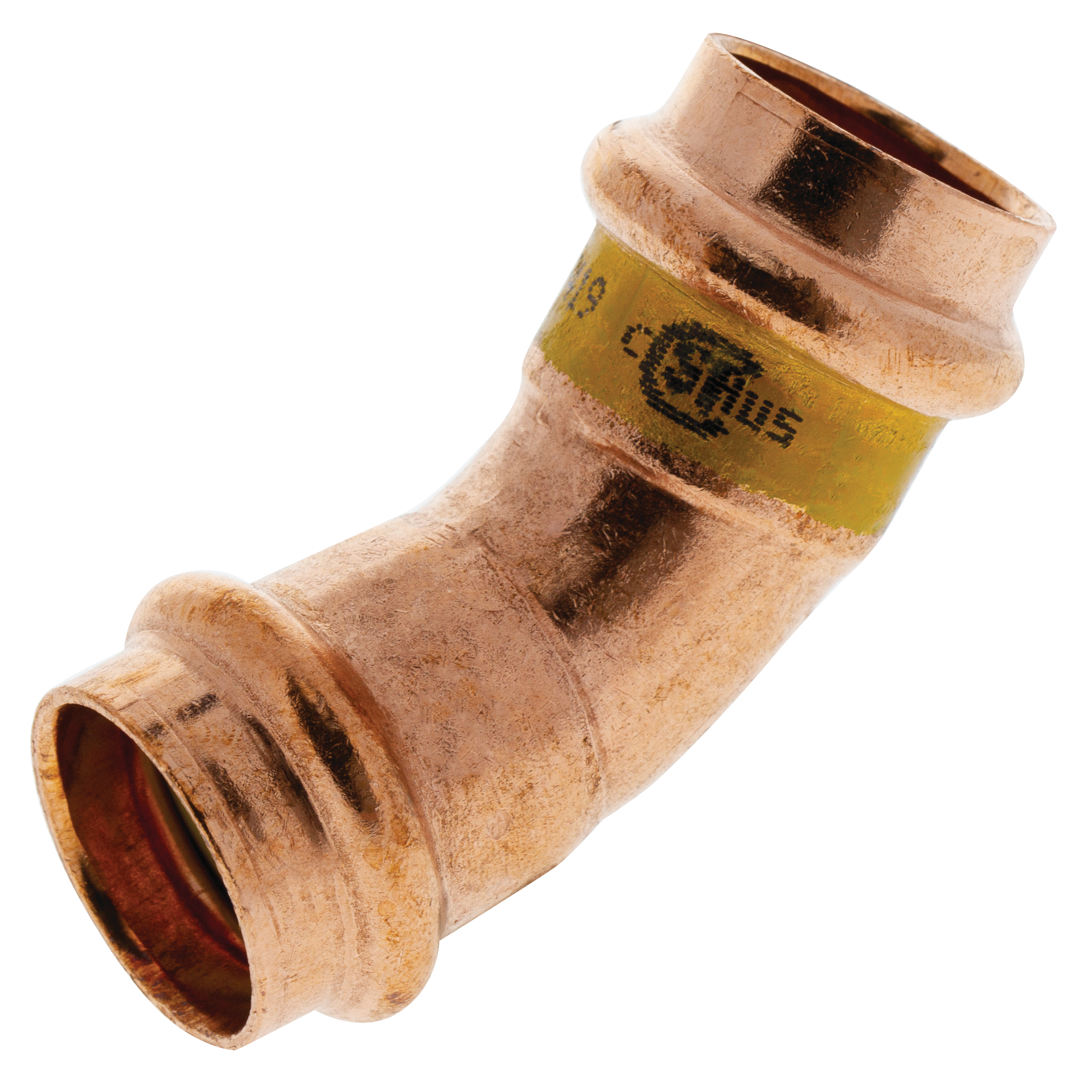

Nibco PCH606114 Press X Press 45 Degree Elbow 1-1/4 Inch

Product Description

The NIBCO PCH606114 is a 1-1/4 inch press x press 45-degree elbow fitting designed for joining seamless copper tubing without flame or solder. It uses a press-to-connect system that creates a secure, permanent connection when crimped with a compatible pressing tool. A unique N witness mark becomes visible on the fitting after proper crimping, giving the installer a clear visual confirmation of a complete joint. This fitting is rated for residential and commercial gas systems and compressed air systems, and it is also approved for underground installation. Licensed plumbers and mechanical contractors are the primary installers of this fitting type.

The PCH606114 is suited for residential and commercial plumbing and mechanical systems where copper tubing is used in gas distribution or compressed air lines. The 45-degree angle makes it a practical choice for routing pipe around obstructions or making directional changes in tight mechanical spaces. Its press-to-connect design eliminates open-flame work, which is especially valuable in occupied buildings, renovation projects, or any environment where hot work permits are restricted or unavailable.

Key Features

• Press x press connection eliminates soldering and open-flame installation
• Visible N witness mark confirms complete and proper crimp after installation
• Approved for underground installation
• Suitable for residential and commercial gas and compressed air systems
• Constructed from copper and copper alloy for durability and corrosion resistance
• Backed by a 25-year limited warranty from NIBCO

Compatibility

Designed for use with seamless copper water tube in residential and commercial gas and compressed air systems. Compatible with standard NIBCO PressG pressing tools, jaws, and chains. Refer to NIBCO technical data sheets and catalogs for full engineering and installation specifications.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical contractor in accordance with applicable local codes and NIBCO technical guidelines. Shut off and depressurize the gas or air line before beginning work, and verify the pipe end is clean, deburred, and fully inserted to the tube stop before pressing. Use only compatible NIBCO PressG pressing tools and jaws rated for this fitting size. Confirm the N witness mark is visible on the completed joint before returning the system to service.

Technical Specifications

• Connection Type: Press x Press
• Fitting Angle: 45 degrees
• Pipe Size: 1-1/4 inches
• Material: Copper and copper alloy
• Application: Residential and commercial gas and compressed air systems
• Underground Installation: Approved
• Warranty: 25-year limited
• UPC: 039923412218

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PCH606114
