Nibco PCH606112 Press X Press 45-degree Elbow 1-1/2 Inch

Product Description

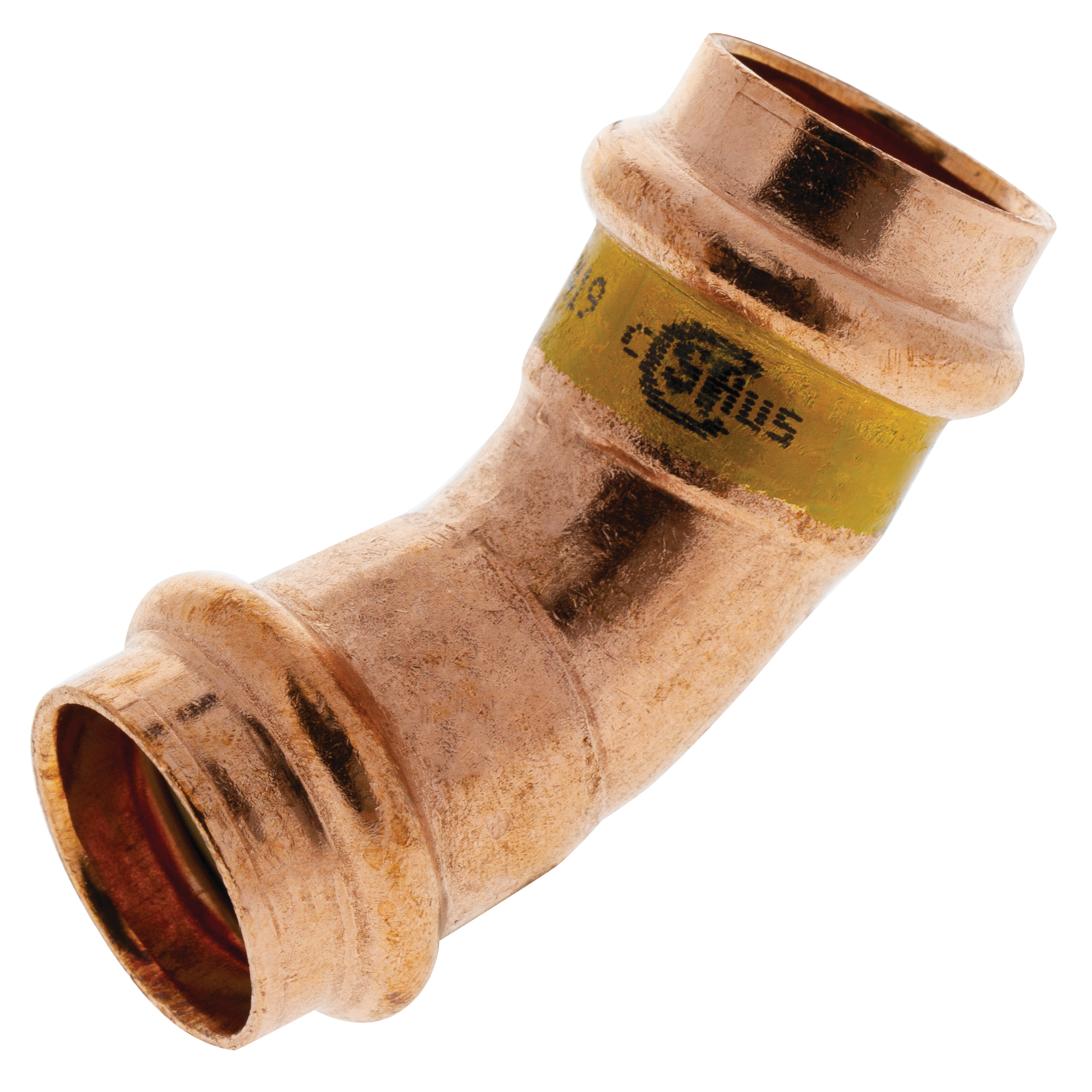

The NIBCO PCH606112 is a 1-1/2 inch copper press fitting configured as a 45-degree elbow with a Press x Press end connection. It joins copper tubing without open flame or soldering, using a mechanical crimping tool to create a permanent, leak-resistant connection. The fitting is suited for residential and commercial installations involving potable water, gas distribution, and compressed air systems. Licensed plumbers and pipefitters install this fitting using compatible press jaws and crimping tools. When the crimp is complete, a unique N witness mark becomes visible on the fitting sleeve, confirming full engagement.

The PCH606112 is designed for use in copper tubing systems where a 45-degree direction change is required. Approved applications include residential and commercial gas piping, compressed air lines, and water distribution. The fitting can also be installed in underground applications where code and project specifications permit. Its flameless installation method makes it well-suited for occupied buildings, confined spaces, and other job sites where open-flame torch work presents safety or insurance concerns.

Key Features

• Press x Press end connections for flameless, no-solder installation using standard crimping tools
• 45-degree elbow geometry for directional changes in copper tubing runs
• 1-1/2 inch nominal size fits standard seamless copper water tube
• N witness mark confirms full crimp engagement and proper seating
• Approved for gas, compressed air, and water systems in residential and commercial applications
• Suitable for underground installation per applicable code requirements
• Backed by a 25-year limited warranty from NIBCO

Compatibility

Designed for use with 1-1/2 inch seamless copper water tube in residential and commercial gas, compressed air, and water distribution systems. Compatible with standard press crimping tools, jaws, and chains designed for copper press fittings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local mechanical and plumbing codes, including IPC and IFGC where relevant. Shut off and depressurize the system before cutting into any existing line. Use only compatible press jaws sized for 1-1/2 inch copper fittings to ensure full crimp engagement. Confirm the N witness mark is fully visible after crimping before restoring system pressure.

Technical Specifications

• Connection Type: Press x Press
• Fitting Angle: 45 degrees
• Nominal Size: 1-1/2 inches
• Material: Copper
• Applicable Systems: Water, gas, compressed air
• Underground Installation: Permitted
• Warranty: 25-year limited
• UPC: 039923412225

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PCH606112
