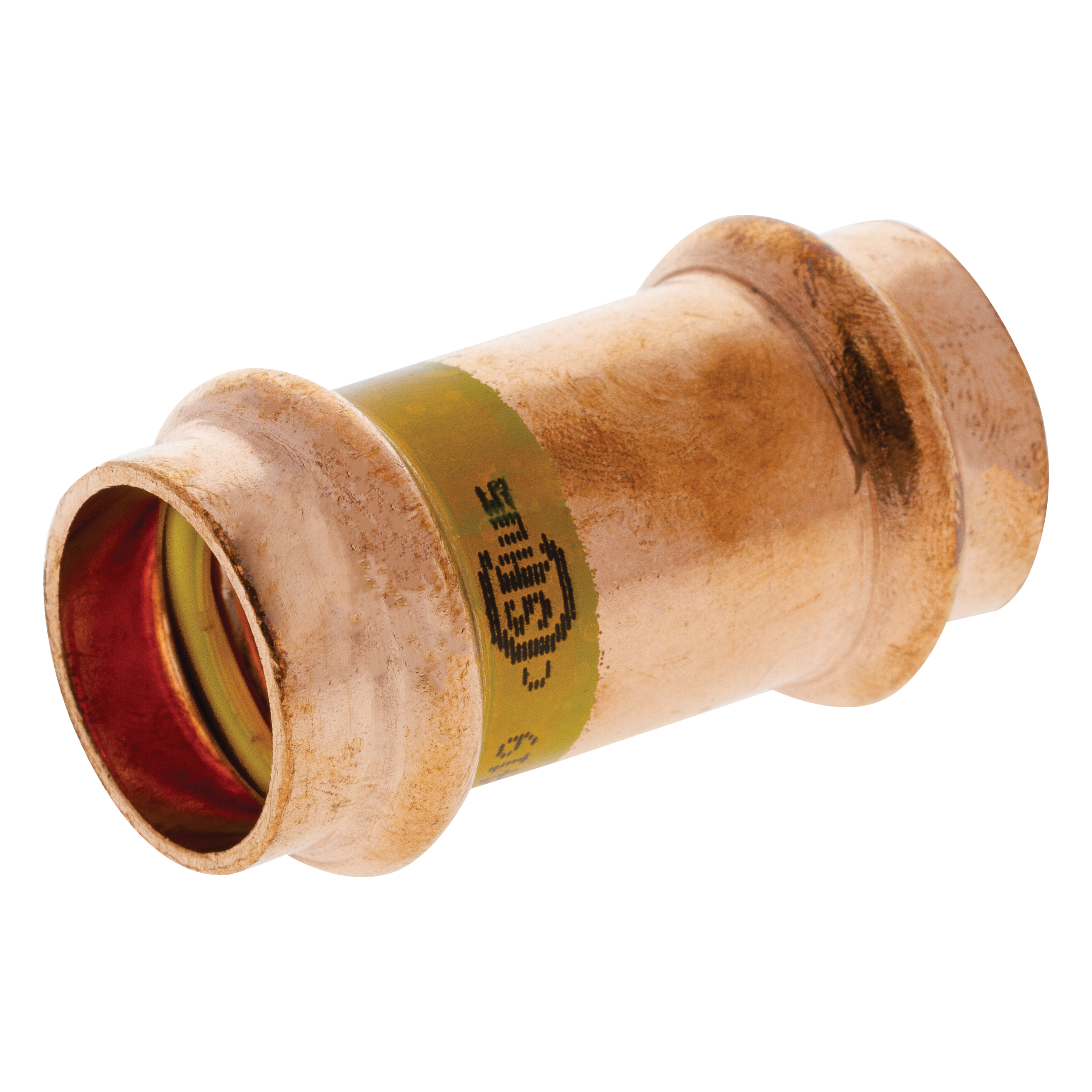

Nibco PCH600DS34 3/4 Inch Press X Press Coupling

Product Description

The NIBCO PCH600DS34 is a 3/4 inch press x press coupling designed for joining copper tubing without soldering, brazing, or open flame. It uses a press-fit connection method that creates a watertight seal when crimped with a compatible pressing tool. A unique witness mark becomes visible after a proper crimp, giving installers a quick visual confirmation that the joint is complete. This fitting is part of the NIBCO PressG product line and is suited for residential and commercial plumbing applications. Licensed plumbers and mechanical contractors are the primary installers.

The PCH600DS34 is approved for use in potable water systems, hydronic heating, compressed air lines, and natural gas distribution piping in both residential and commercial settings. It can also be installed underground, making it a versatile choice for a range of piping scenarios where soldered joints are impractical or restricted. The press x press end configuration means both ends accept standard copper tubing for a straight coupling connection.

Key Features

• Press x press end connections eliminate the need for soldering or open flame on the job
• Visual witness mark confirms full and proper crimp completion
• Rated for use in gas, compressed air, and potable water systems
• Approved for underground installation
• Compatible with seamless copper water tube per standard sizing
• Backed by a 25-year limited warranty from NIBCO

Compatibility

Designed for use with seamless copper water tube in 3/4 inch press x press configurations across residential and commercial gas, compressed air, and potable water piping systems.

Installation Notes

Installation requires a compatible press tool with the correct jaw or ring set for 3/4 inch copper press fittings. Shut off and depressurize the system before making any connections. Ensure tubing is cut square, deburred, and fully inserted to the depth stop before pressing. Follow all applicable local plumbing codes, IFGC guidelines for gas applications, and the manufacturer technical data sheets for engineering specifications and tool requirements.

Technical Specifications

• Connection Type: Press x Press
• Size: 3/4 inch
• Material: Copper
• Application: Potable water, hydronic, compressed air, natural gas, underground
• Warranty: 25-year limited
• UPC: 039923412744

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PCH600DS34
