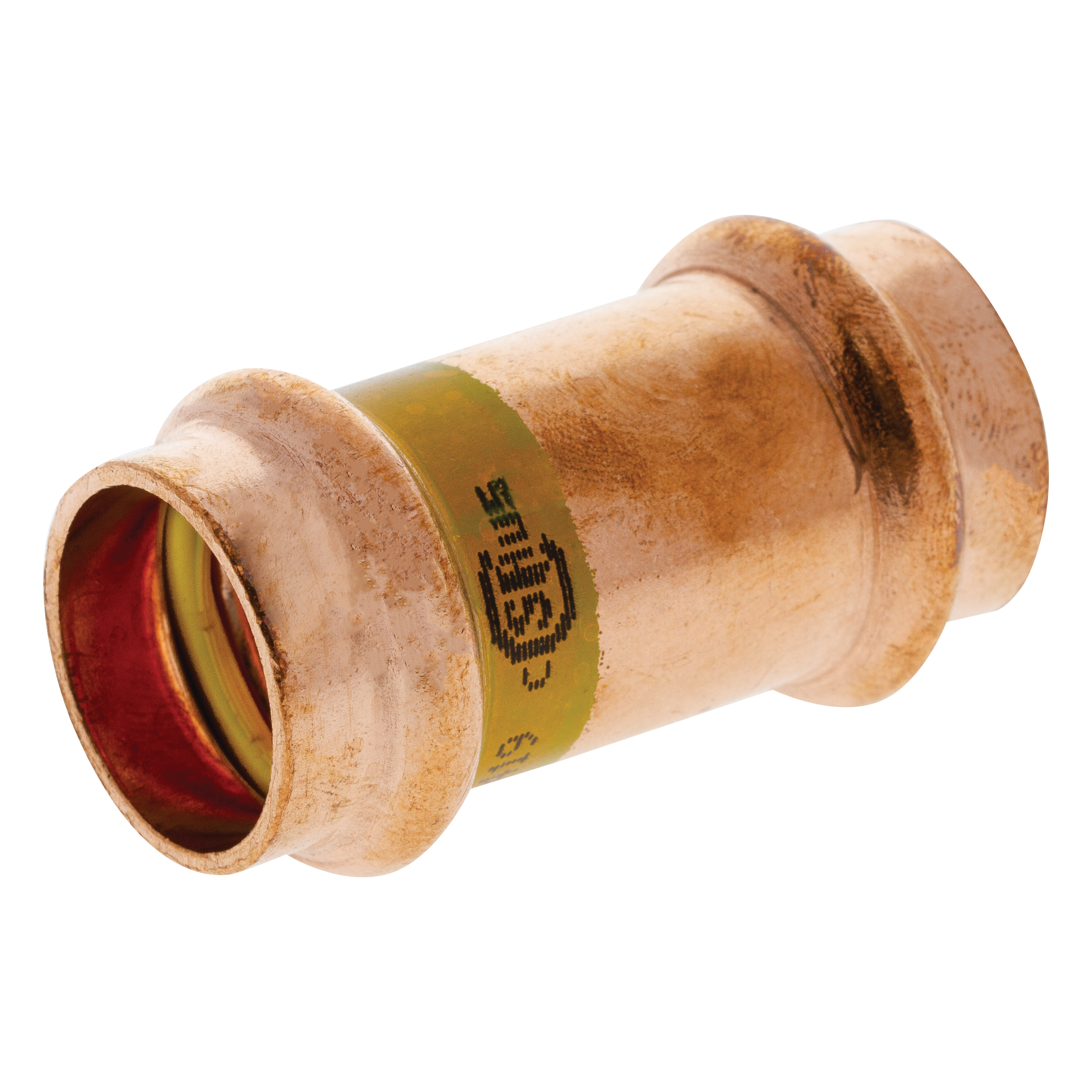

Nibco PCH600DS12 Press X Press Copper Coupling 1/2 Inch

Product Description

The NIBCO PCH600DS12 is a press x press copper coupling designed for joining seamless copper water tube without open flame or solder. It uses a mechanical press connection that, when properly crimped, displays a visible witness mark confirming a complete, leak-free joint. This fitting is rated for residential and commercial applications including potable water, gas distribution, and compressed air systems. It is installed by licensed plumbers and pipefitters using compatible pressing tools, jaws, and chains. The half-inch press x press end configuration makes it a direct, efficient solution for straight-run copper tube connections.

This coupling is suited for a broad range of plumbing and mechanical system installations, including residential supply lines, light commercial hydronic systems, gas piping, and compressed air distribution. It can be installed in exposed, concealed, and underground installations where copper tube is the specified material. The press connection method eliminates torch work, reducing fire risk and allowing installation in occupied or sensitive environments. Contractors working on sustainable construction projects benefit from the inherent reusability and long service life of copper alloy fittings in this product line.

Key Features

• Press x press end connections for flame-free, solderless copper tube joining
• Visible witness mark confirms full crimp engagement during inspection
• Approved for residential and commercial gas and compressed air systems
• Suitable for underground installation
• Backed by a 25-year limited warranty
• Compatible with standard pressing tools, jaws, and chains

Compatibility

Designed for use with seamless copper water tube in half-inch press x press configurations across residential and commercial gas, potable water, and compressed air piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing and mechanical codes, including IPC and IFGC requirements. Shut off and depressurize the line before cutting or fitting. Use only compatible pressing tools and correct jaw size for the half-inch end connections. Refer to NIBCO technical data sheets and installation guides for approved tool lists and pressing sequences before beginning work.

Technical Specifications

• End Connection: Press x Press
• Tube Size: 1/2 inch
• Material: Copper alloy
• Warranty: 25-year limited
• UPC: 039923412737

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PCH600DS12
