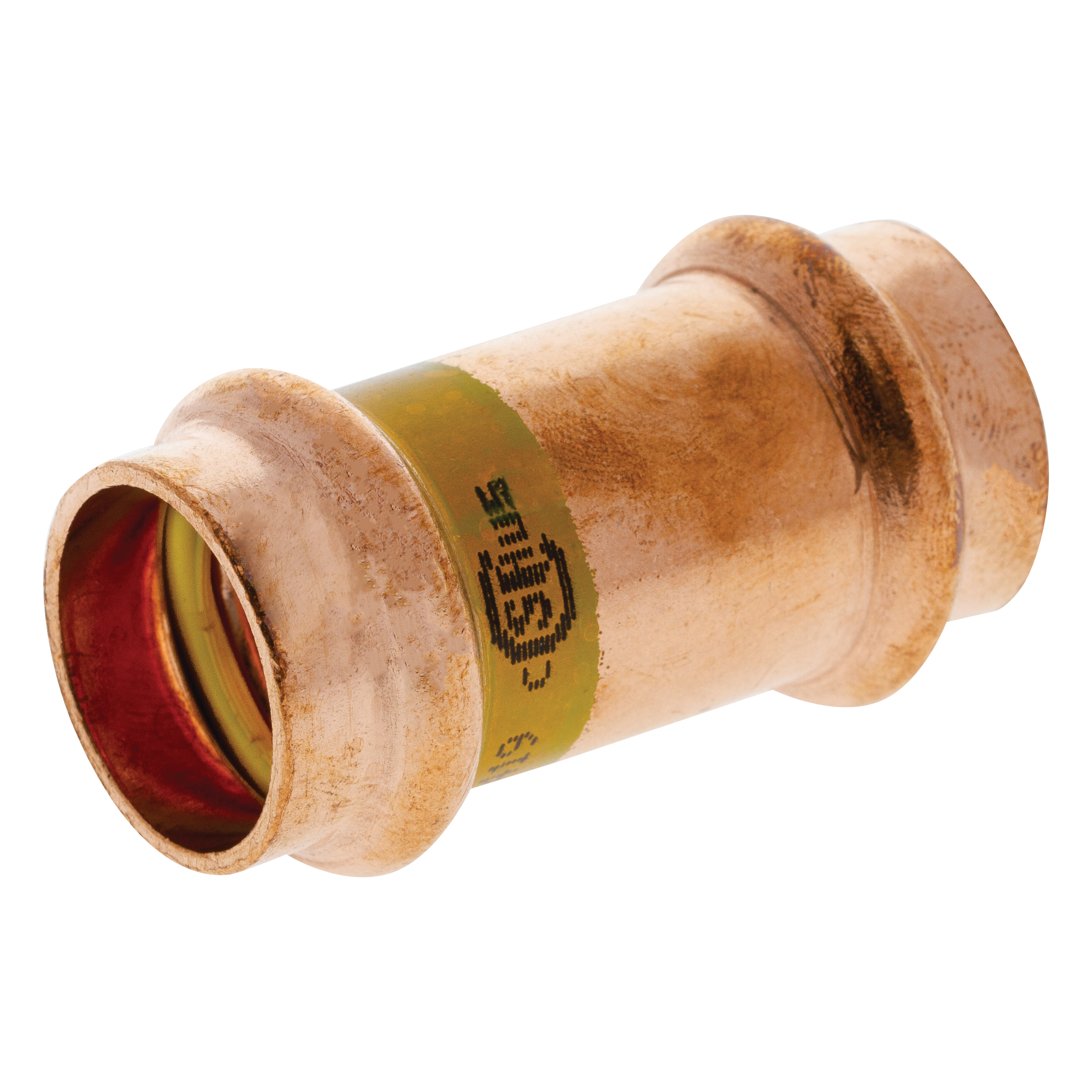

Nibco PCH600DS114 Press X Press Coupling 1-1/4 Inch

Product Description

The NIBCO PCH600DS114 is a press x press coupling designed for joining seamless copper water tube in gas and compressed air piping systems. It uses a tool-actuated press connection that eliminates the need for open flame, making it well suited for occupied buildings and tight spaces. When properly crimped, a unique N witness mark becomes visible, confirming a complete and leak-free connection. This fitting is part of the NIBCO PressG product family and is sized at 1-1/4 inches. Licensed plumbers and pipefitters install this fitting in both residential and commercial applications.

This coupling is rated for use in residential and commercial gas and compressed air systems, as well as copper water tube installations. It can also be installed underground where applicable. The 1-1/4 inch press x press configuration makes it appropriate for straight-run repairs, extensions, or new construction where soldering is not preferred or permitted. It is compatible with standard 1-1/4 inch seamless copper tubing per applicable system requirements.

Key Features

• Press x press connection eliminates open-flame soldering on the job site
• N witness mark confirms full crimp engagement after tool actuation
• Rated for gas and compressed air systems in addition to water tube applications
• Suitable for underground installation
• Backed by a 25-year limited warranty
• Precision-engineered copper and copper alloy construction

Compatibility

Designed for use with 1-1/4 inch seamless copper water tube in residential and commercial gas and compressed air systems. Compatible with standard NIBCO PressG pressing tools, jaws, and chains.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, including IFGC and IPC where relevant. Shut off and depressurize the system before cutting or fitting any pipe. Use only compatible press tools and jaw sets rated for this fitting size and connection type. Do not substitute pressing tools or attempt to re-press a joint that has already been fully actuated.

Technical Specifications

• Connection Type: Press x Press
• Tube Size: 1-1/4 inches
• Material: Copper alloy
• Application: Gas, compressed air, copper water tube
• Underground Rated: Yes
• Warranty: 25-year limited
• UPC: 039923412768

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PCH600DS114
