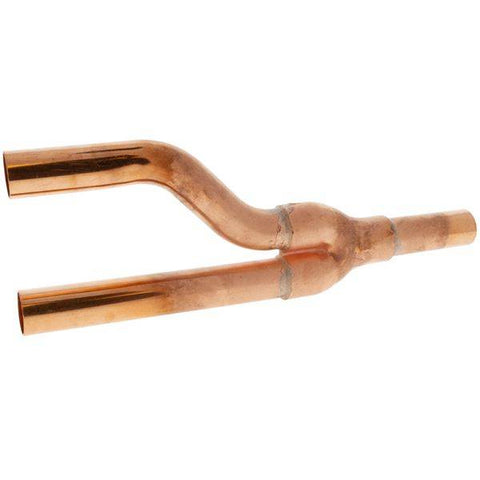

Nibco pc9649 Y-Joint Fitting 3/8

Product Description

The NIBCO PC9649 PressACR fitting is a wrot copper y-joint featuring two fitting ends that can be pressed on. This fitting is designed to split a line in air conditioning and refrigeration applications. NIBCO press fittings provide a fast and easy way to join copper tubing systems and can be installed underground.

• Operating pressure 700 psi max
• Temperature range -40°F to 250°F
• Vacuum: 500mi

Product Highlights

The NIBCO Y-Joint fitting features a full range of precision engineered copper fittings, accessories, pressing tools and jaws. NIBCO PressACR copper fittings are backed by a 5-year limited warranty.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC9649

Technical Specifications

• Material Number: 9345200RPC
• UPC Code: 039923430618
• Size: 3/8
• Connection Type: FTG x FTG
• Description: PC9649 3/8 OD FTG X FTG Y BIPOD JOINT
• Weight: 0.2 lb
• Operating pressure: 700 psi max
• Temperature range: -40°F to 250°F
• Vacuum: 500mi
• Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
• Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A
• Material: Copper
• Type: Y-Joint Fitting
