Nibco PC9607LT38 90 Degree Copper Elbow Fitting (0.9 cm Outer Diameter)

Product Description

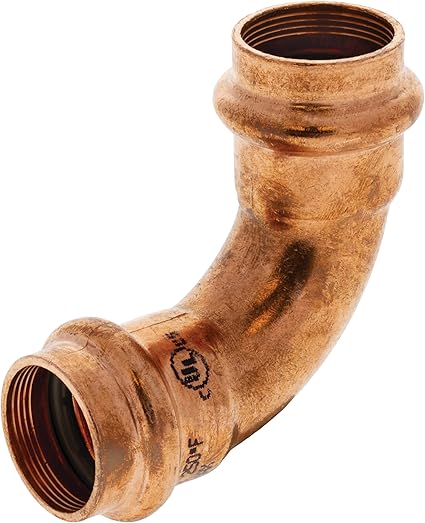

The NIBCO PC9607LT38 PressACR copper 90-degree elbow features an inner bead and a gray HNBR O-ring. It uses pressure from a pressing tool to tighten the O-ring onto the tube, creating a clean and robust seal. This fitting changes the direction of the pipeline by 90 degrees and is used when a longer sweep is required.

• Operating pressure: 700 psi max
• Temperature range: -40 °C to 121 °C
• Approved refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452A. 2B, R50. 7, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434

Product Highlights

The NIBCO 90-degree copper elbow fitting provides a robust seal without flame, solder, or flux. Approved for use with a variety of refrigerants and oils.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC9607LT38

Technical Specifications

• Size: 3/8 in.
• Material: Copper
• Brand Name: Nibco
• Connector Type: Elbow
• Exterior Finish: Copper
• Number of Pieces: 1
• Manufacturer: NIBCO INC.
